4: TRANSITIONS AND ACCESSORIES
When used with other Meyer Sound transition kits, the MG-3D/M multipurpose grid can support a variety of flown and
ground-supported configurations using MILO, M3D/M3D-Sub, and other M Series loudspeakers.

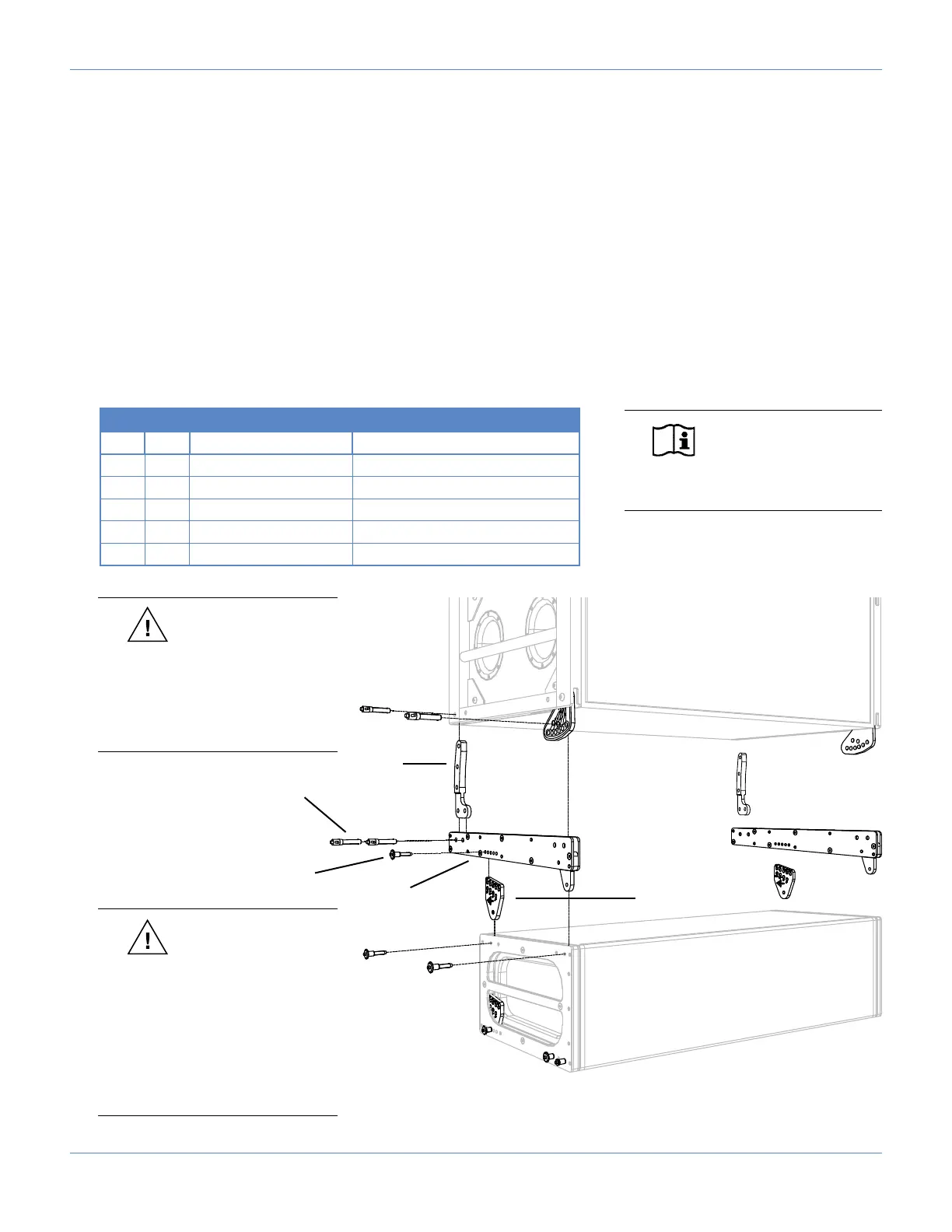

MTR-3D/M TRANSITION RAIL KIT: M3D/M3D-SUB TO MILO
Meyer Sound’s MTR-3D/M transition rail kit allows you to easily transition from an M3D/M3D-Sub to a MILO loudspeak-
er or from a MILO to M3D/M3D-Sub. MTR-3D/M transition rails provide the link needed to attach MILO quickly either
above or below M3D/M3D-Subs as required. The kit also contains all the links and quick release pins (QRPs) necessary
for the transition in either direction.
In flown configurations where the M3D/M3D-Sub is above the MILO loudspeaker, the MATB-3D adjustable transition
bar allows the transition rails to be tilted at 0°, 6° and 12° with respect to the M3D/M3D-Sub(s) above it. The MRAL-
MILO rear AlignaLink also allows MILO to be tilted from 0° to -5° in relation to the transition rails, giving a combined
range from -5° to 12° between the M3D/M3D-Sub and MILO cabinets.
List of Contents: MTR-3D/M Transition Kit (Part 40.132.110.01)
Qty Part Number Description
A
2 MTR-3D/M Transition Rails
B
4 134.007 1/2" x 2.5" QRP
C
2 134.021 3/8" x 1.125" QRP
D
2 61.132.028.01 MRAL-MILO Rear AlignaLink
E
2 61.132.115.01 MATB-3D Adjustable Transition Bar
A
D
C
B
E
CAUTION: When
using combined
arrays, the total weight of
the array should be always
be calculated and be within
specifications before flying
the array. Do not exceed the
MG-3D/M grid load ratings
listed in Chapters 2 and 3 of
this guide.
NOTE: The approxi-
mate total weight of the
MTR-3D transition kit is 42.8
lbs (19.41 kg).
CAUTION: Always
use two 1/2" M3D
QRPs to secure the MATB-
3D transition bar to the
MTR-3D/M transition rail.
Do not use the MILO 3/8"
QRPs.
