Midea ACE-09HRFN8 IN User Manual

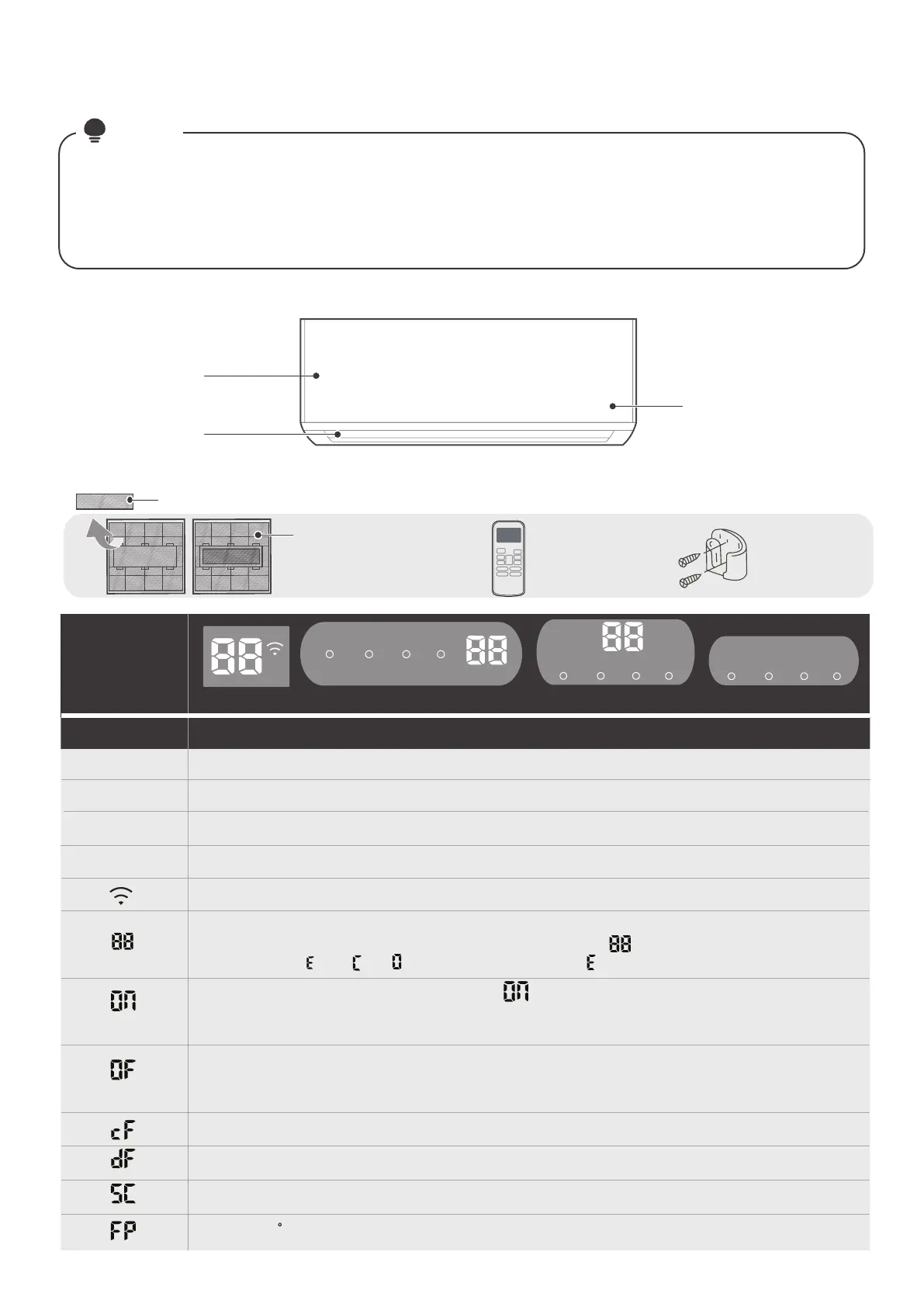

OPERATION INSTRUCTIONS
34
Dierent models have dierent front panel and display window. Not all the indicators describing
below are available for the air conditioner you purchased. Please check the indoor display window
of the unit you purchased.
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may
be slightly dierent. The actual shape shall prevail.
●
●
NOTE
(Model A)
(Model B) (Model C) (Model D)
Indoor Unit Display
Front Panel
Display Code Meanings
Display
Windows
Display Code
（for 3s when）
（for 3s when）
●
●
●
●
●
●
●
●
●
●
●
●
●
●
When Wireless Control feature is activated(some units).
FRESH, UV-C lamp, SWING, TURBO, SILENCE or SOLAR PV ECO feature is
turned on.
TIMER ON is set (if the unit is OFF, remains on when TIMER ON is set ).
“ ”
TIMER OFF is set.
FRESH , UV-C lamp, SWING, TURBO , SILENCE or SOLAR PV ECO feature is
turned o.
When defrosting(cooling & heating units).
When anti-cold air feature is turned on.
When unit is self-cleaning(some units).
When 8 C heating feature is turned on(some units).
Displays temperature, operation feature and Error codes.
Display window
Air Outlet
Functional Filter
(On Back of Main Filter-Some Units)
Remote Control Holder
(purchase separately)
Remote Control
Air Filter
fresh defrost run timer
fresh defrost run timer
fresh defrost run timer
When Fresh and UV-C lamp(if any) feature is activated(some units).
When defrost feature is activated.
When the unit is on.
When TIMER is set.
fresh
defrost
run
timer
● When ECO function(some units) is activated, the “ ” illuminates gradually one
by one as -- -- -- set temperature -- ...... in one second interval.
