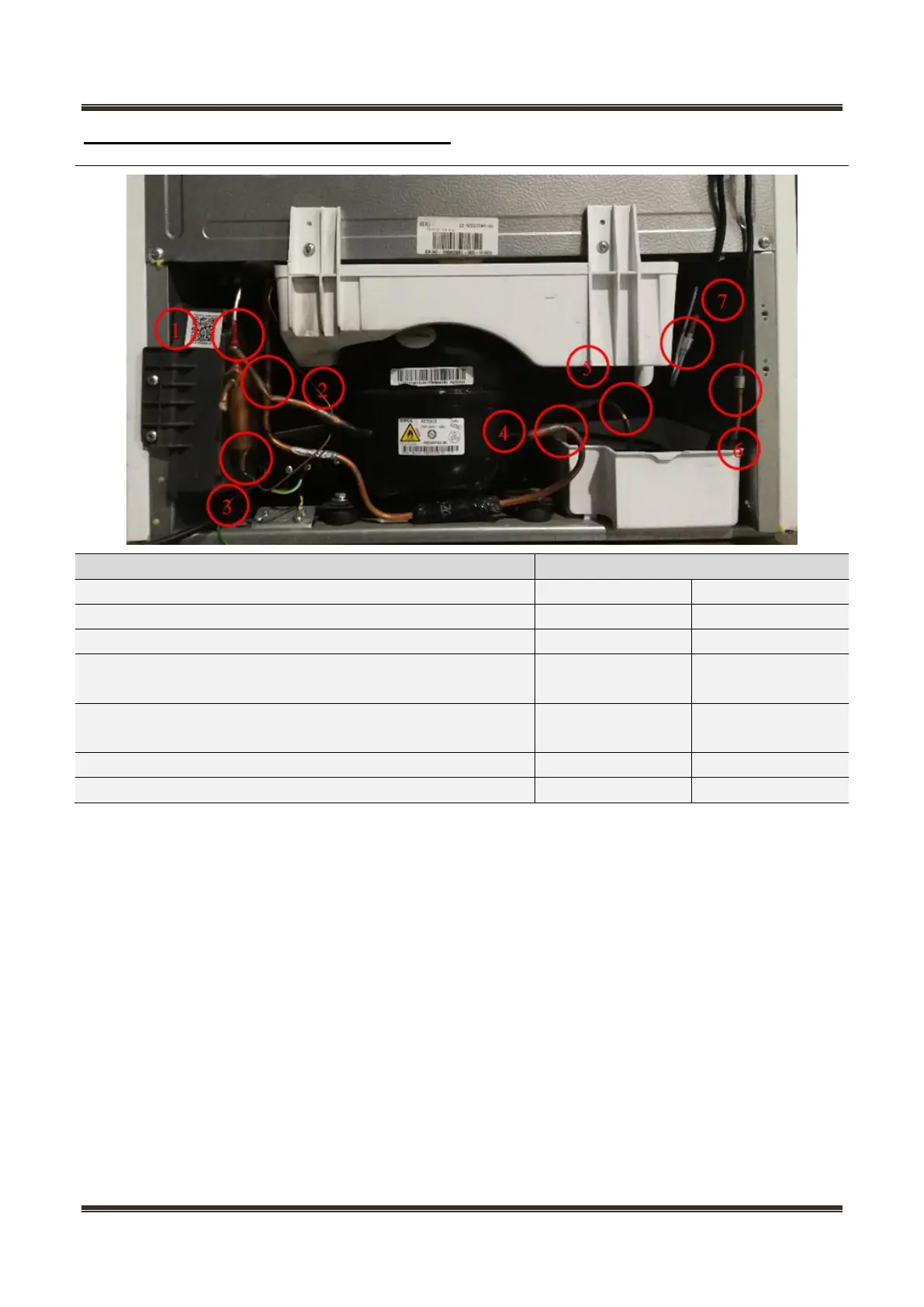

6.5 Welding point in the compressor case
Welding point
Pipe outer diameter (mm)
1-Outlet of anti-condensation tube and inlet of dry filter
Steel pipe: Φ4. 0
Copper pipe: Φ5.0
2-Heat transition tube and Suction connection tube
Copper pipe: Φ6.0
Copper pipe: Φ6.0
3-Outlet of dry filter and inlet of freezer capillary
Copper pipe: Φ2.8
Copper pipe: Φ1.8
4-Suction connection pipe and compressor intake tube
Copper pipe: Φ6.0
Copper pipe:
Φ8.17
5-Compressor outlet tube and inlet of venting connection tube
Copper pipe:
Φ6.17
Steel pipe: Φ4.0
6-Outlet of venting connection tube and inlet of condenser
Copper pipe: Φ4.0
Steel pipe: Φ4.0
7-Outlet of condenser and inlet of anti-condensation tube
Steel pipe: Φ4.0
Steel pipe: Φ4.0
