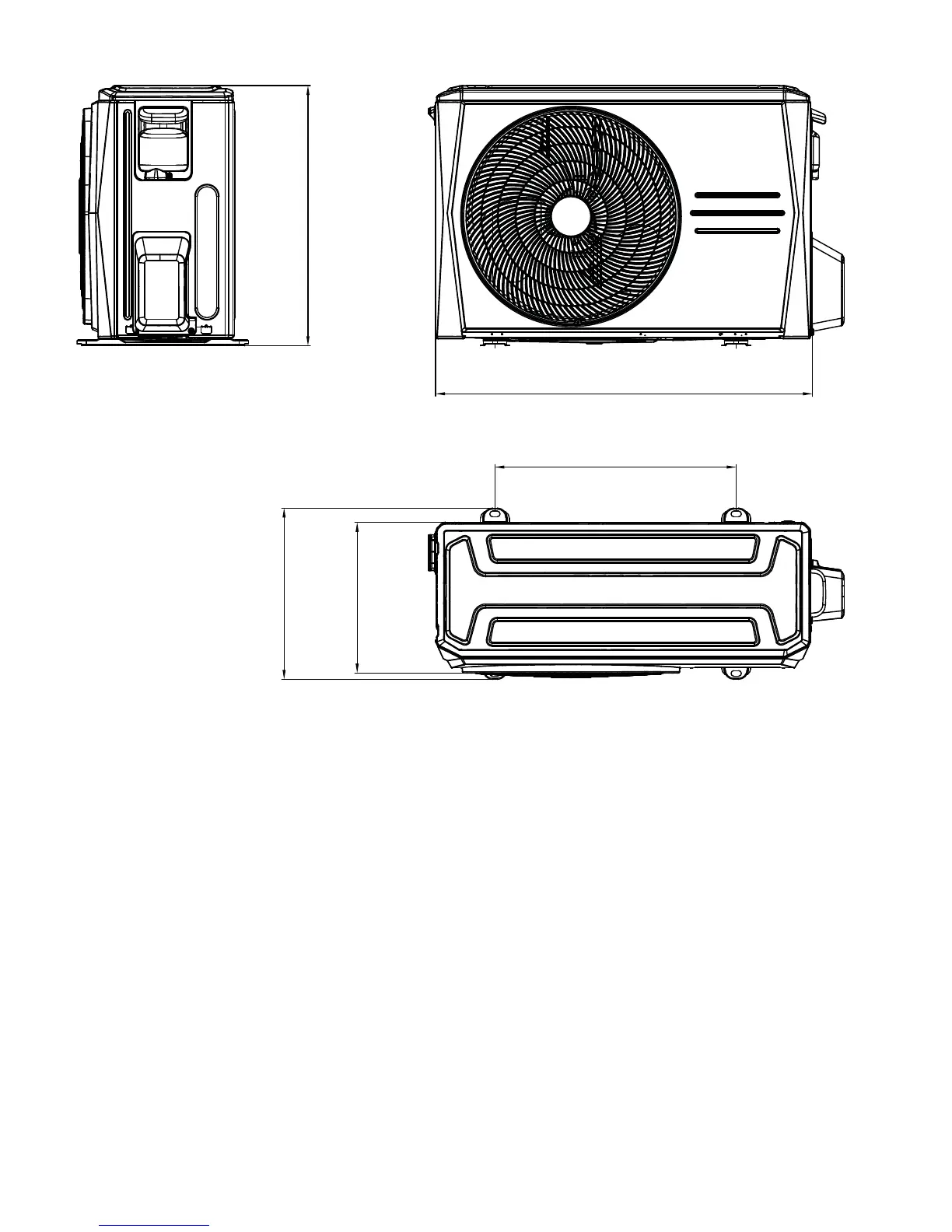

DIMENSIONS − OUTDOOR
L2
D
D
H
W
Fig. 2 - Outdoor Unit
Table 4—Unit Sizes
System Size
9K
(115)
12K
(115V)
9K
(208/230V)
12 K
(208/230V)
18K
(208/230V)
23K
(208/230V)
30K
(208/230V)
36K
(208/230V)
Outdoor Unit
Unit
Height
(H)
in
(mm)
21.85
(555)
21.81
(554)
21.81
(554)
21.81
(554)
27.64
(702)
31.89
(810)
31.89
(810)
31.89
(810)
Width
(W)
in
(mm)
30.31
(770)
31.5
(800)
31.5
(800)
31.5
(800)
33.27
(845)
37.24
(946)
37.24
(946)
37.24
(946)
Depth
(D)
in
(mm)
11.81
(300)
13.11
(333)
13.11
(333)
13.11
(333)
14.29
(363)
16.54
(420)
16.54
(420)
16.54
(420)
L1
in
(mm)
19.2
(487)
20.24
(514)
20.24
(514)
20.24
(514)
21.26
(540）
26.5
(673）
26.5
(673）
26.5
(673）
L2
in
(mm)
11.73
(298)
13.39
(340)
13.39
(340)
13.39
(340)
13.8
(350）
15.87
403）
15.87
(403）
15.87
403）
Weight
-Net
lbs.
(kg)
67.9
(30.8)
80.7
(36.6)
90.8
(41.2)
91.7
(41.6)
113.3
(51.4)
141.1
(64)
137.8
(62.5)
143.3
(65)

Midea DLCSRAH12AAJ Specifications
