Midea DLFSAA Installation Instructions

32801002001 Specifications subject to change without notice. 7

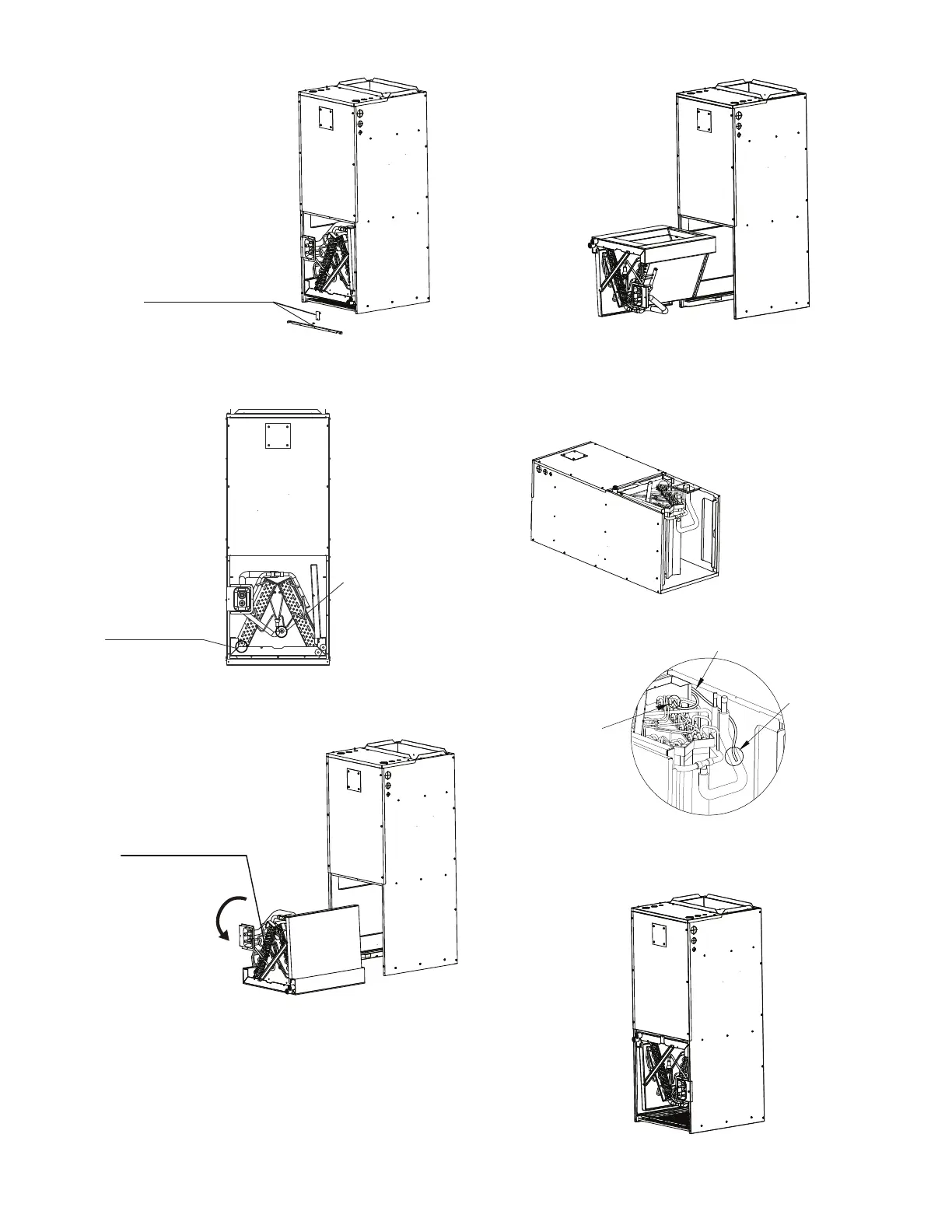

4. Remove the drain pan support bracket and the locking clip.
Fig. 11 — Remove the Support Bracket and Clip
5. Remove the pipe temperature sensor and room temperature sensor.
Fig. 12 — Pipe and room temperature sensors
6. Remove the evaporator and drain pan assembly.
Fig. 13 — Rotate the evaporator
7. Rotate the evaporator 180°.
8. Reinstall the evaporator and drain pan assembly.
Fig. 14 — Reinstall the evaporator and drain pan
assembly
9. Reinstall the pipe temperature sensor in its original position. Attach
the room temperature sensor to the evaporator output pipe
protection sleeve
.
Fig. 15 — Reinstall the Pipe Temperature Sensor
10. Reinstall the drain pan support bracket and locking clip.
Fig. 16 — Reinstall the Drain Pan Fixed Plate
Remove the lter plate
Bracket
Clip
Room Temperature
Sensor
Pipe Temperature
Sensor
Take out the evaporator
and rotate it 180°
Wiring position of
the room
temperature
sensor
Pipe temperature cable and room
temperature cable pass through the
top of the water intake plate and
the left side plate.
Wiring position
of the pipe
temperature sensor
