32801000302 21
Specifications subject to change without notice.
ELECTRICAL DATA
Table 8—Electrical Data
UNIT SIZE
INDOOR FAN MAX FUSE CB AMP
V-PH-HZ FLA HP W
Refer to outdoor unit installation instructions –
Indoor unit powered by the outdoor unit
09
208-230/1/60
1.11 0.18 130
12 1.11 0.18 130
18 1.2 0.27 200
24 1.2 0.27 200
36 2.45 0.56 420
48 3.2 0.75 560
58 3.65 0.952 1000
LEGEND
FLA - Full Load Amps

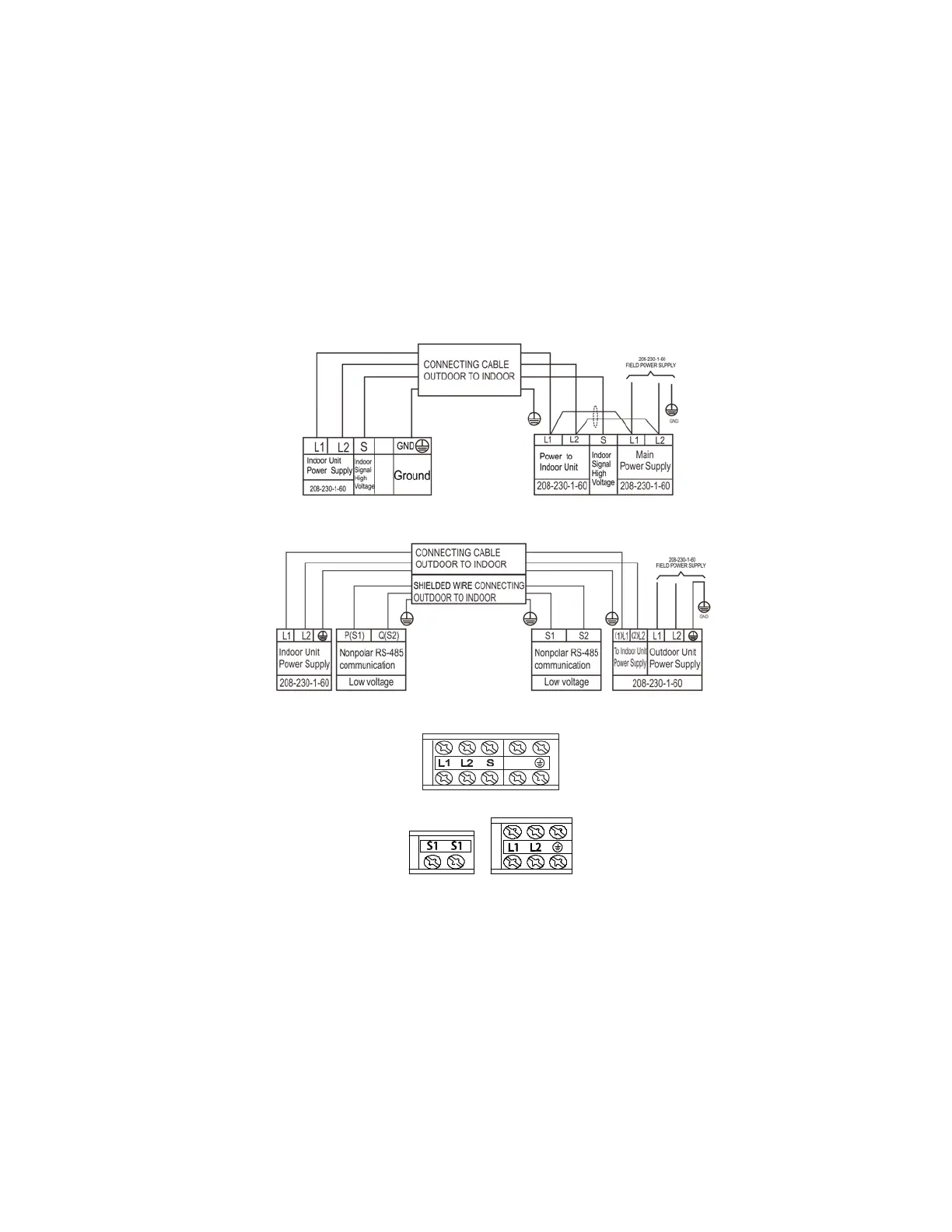

CONNECTION DIAGRAMS
Fig. 39 - Connection Diagrams (sizes 09 to 24)
Fig. 40 - Connection Diagrams (sizes 36 and 58)
Fig. 41 - Control and Power Wiring on Indoor Unit (sizes 09 to 24)
Fig. 42 - Control and Power Wiring on Indoor Unit (sizes 36 to 58)
Notes:
1. Do not use thermostat wire for any connection between indoor and outdoor units.
2. All connections between indoor and outdoor units must be as shown. The connections are sensitive to polarity and will result in a fault code.
