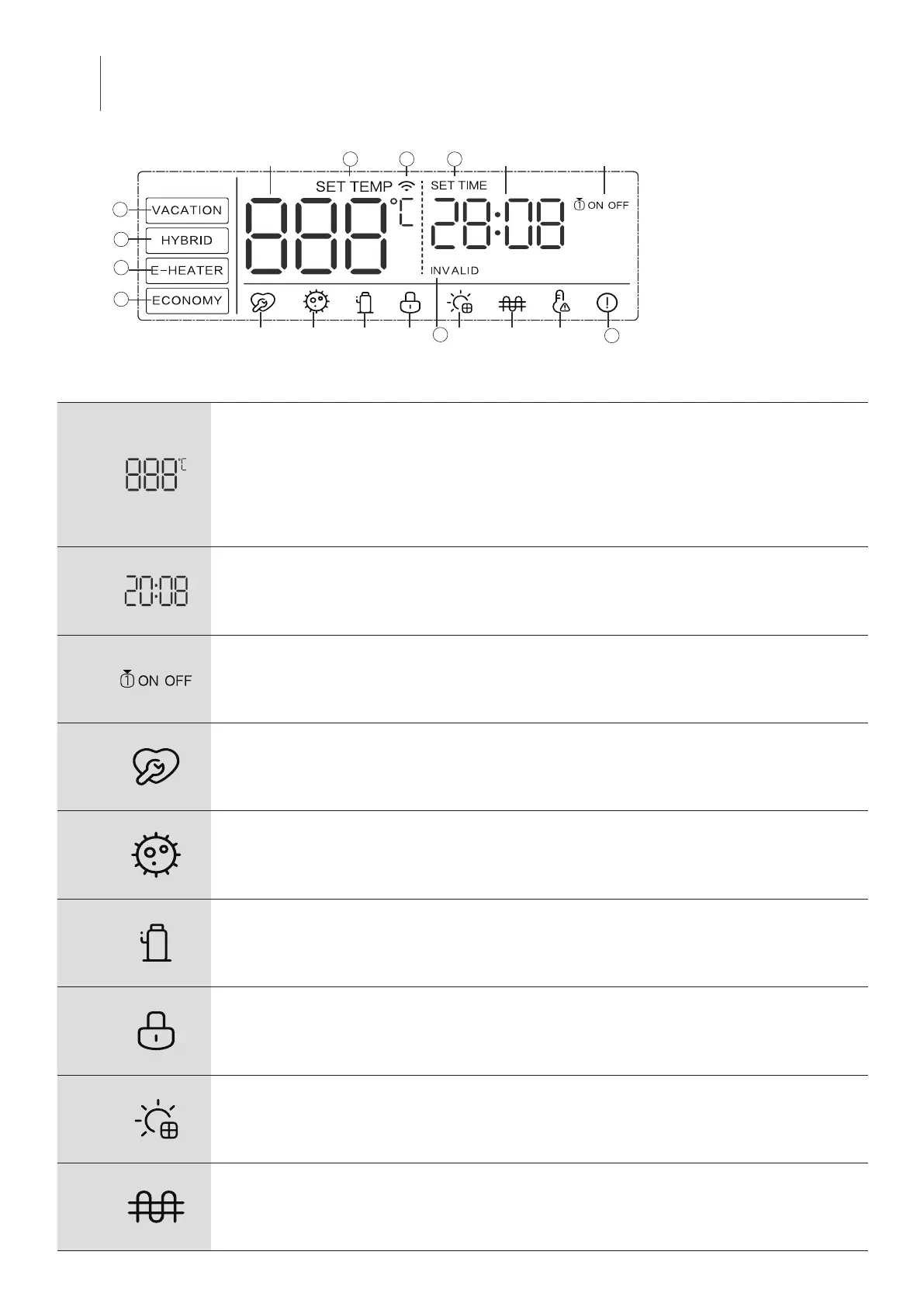

6.1 Display Screen
SYSTEM
OPERATION
6
1
Main Setting Value
When the control panel is not in operation the main setting value will display the current water
temperature in the tank;
When setting the desired temperature the main setting value will display the desired temperature;
When in error or protection mode the main setting value will display the relevant code;
When in User Settings, the main setting value will display the relevant running parameter.
When in Vacation Mode, the main setting value will display the remaining vacation days.
2
Clock
This displays the clock. Whenever there is setting for clock the SET TIME icon will be displayed.
3
Time on & time off
If a TIMER ON timer has been set, the TIMER ON icon will be displayed on screen.
If a TIMER OFF timer has been set, the TIMER OFF icon will be displayed on screen.
4
Maintenance Reminder
Icon will flash to remind the user to maintain the water tank. Maintenance time adjustable range: 30-90
days (60 days by default).
5
Disinfection:
When the unit is in disinfection mode, the Disinfection icon will be displayed on screen
6
Compressor:
If the compressor is activated, the Compressor icon will be displayed on screen
7
Lock:
If the control panel is in a locked state, the Lock icon will be displayed on screen
8
Solar:
When the system is connected to the solar signal, the solar icon will be displayed on screen
9
E-heater:
If the heating element is activated, the E-heater icon will be displayed on screen
