Midea KJR-120G2/TFBG-E User Manual

4

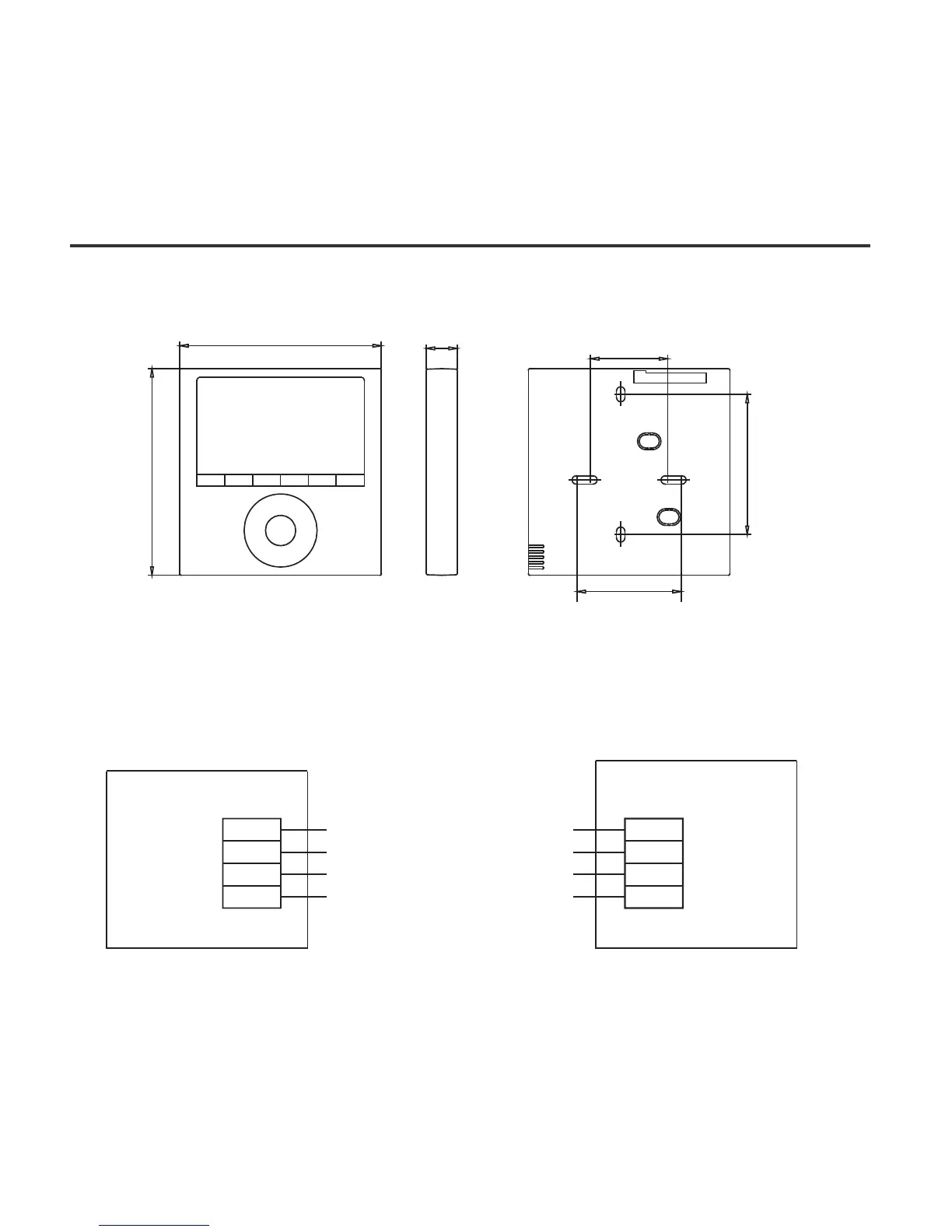

3. INSTALLATION METHOD
Fig 3-1
1.Wired Remote Controller Dimensions
123mm
(4.8”)
120mm
(4.7”)
18.5mm
(0.7”)
83.5mm
(3.3”)
46mm
(1.8”)
62mm
(2.4”)
Fig 3-2
2.Wiring Connection Diagram
red
black
yellow
brown
red
black
yellow
brown
Insert of the
mainboard CN40
Wire controller
Indoor unit mainboard
4-Core Shield Cable, the length
is decided by installation
-----------------------------------
-----------------------------------
-----------------------------------
-----------------------------------

Midea KJR-120G2/TFBG-E Specifications

General

Brand	Midea
Model	KJR-120G2/TFBG-E
Category	Controller
Language	English
