17

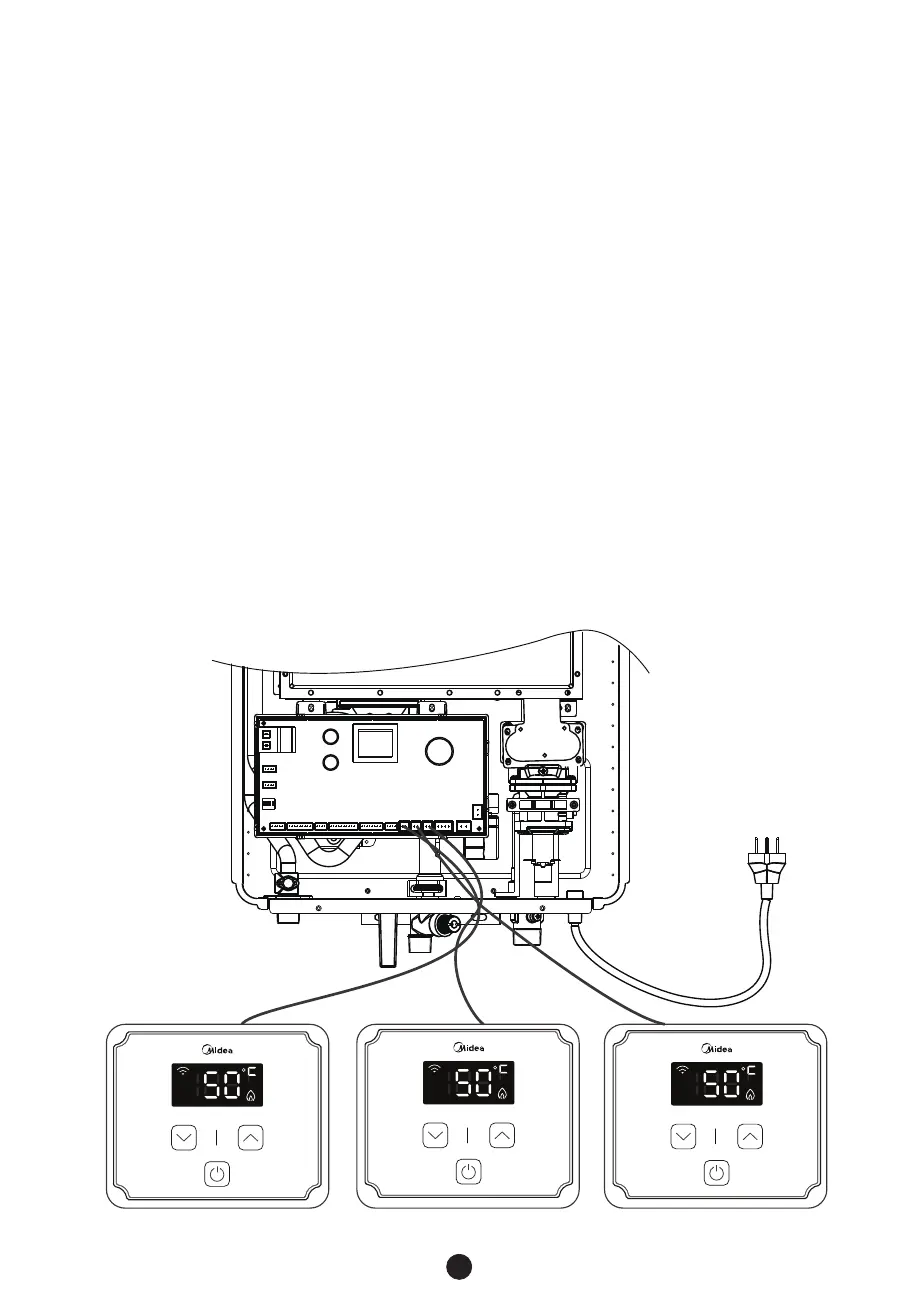

5.2 CONNECTION OF REMOTE CONTROLLER WIRING TO THE WATER HEATER
1. Turn off the power supply to the water heater.
2. Remove the front cover from the water heater. There are 4 screws on the front cover.
3. Feed the remote wires through the hole on the bottom of the case.
4. Connect the first controller only and turn on the power supply to the water heater.
5. Turn off the first controller by pressing the on/off button (LED light will turn off).
6. Continue to connect any additional remote control wires to the remote terminals directly.
DO NOT jump or short-circuit wires otherwise the PCB may become damaged.
7. Return the front cover.
DO NOT turn on the remotes until instructed.
8. AFcHVVWKH,'VHWWLQJE\SUHVVLQJWKH83DQG'2:1EXWWRQVVLPXOWDQHRXVO\IRUVHFRQGV
9. value to set the ID (available ID’s include 0, 0, 0). Press the on/off
$djust the on screen
button to confirm
10. Repeat for all additional controllers.
11. Controllers can now be turned on and will operate as per the PRIORITY function (refer to p. 15)
Priority
Power
Priority
Power
Priority
Power
M20
To Next Page
