OPERATING INSTRUCTIONS

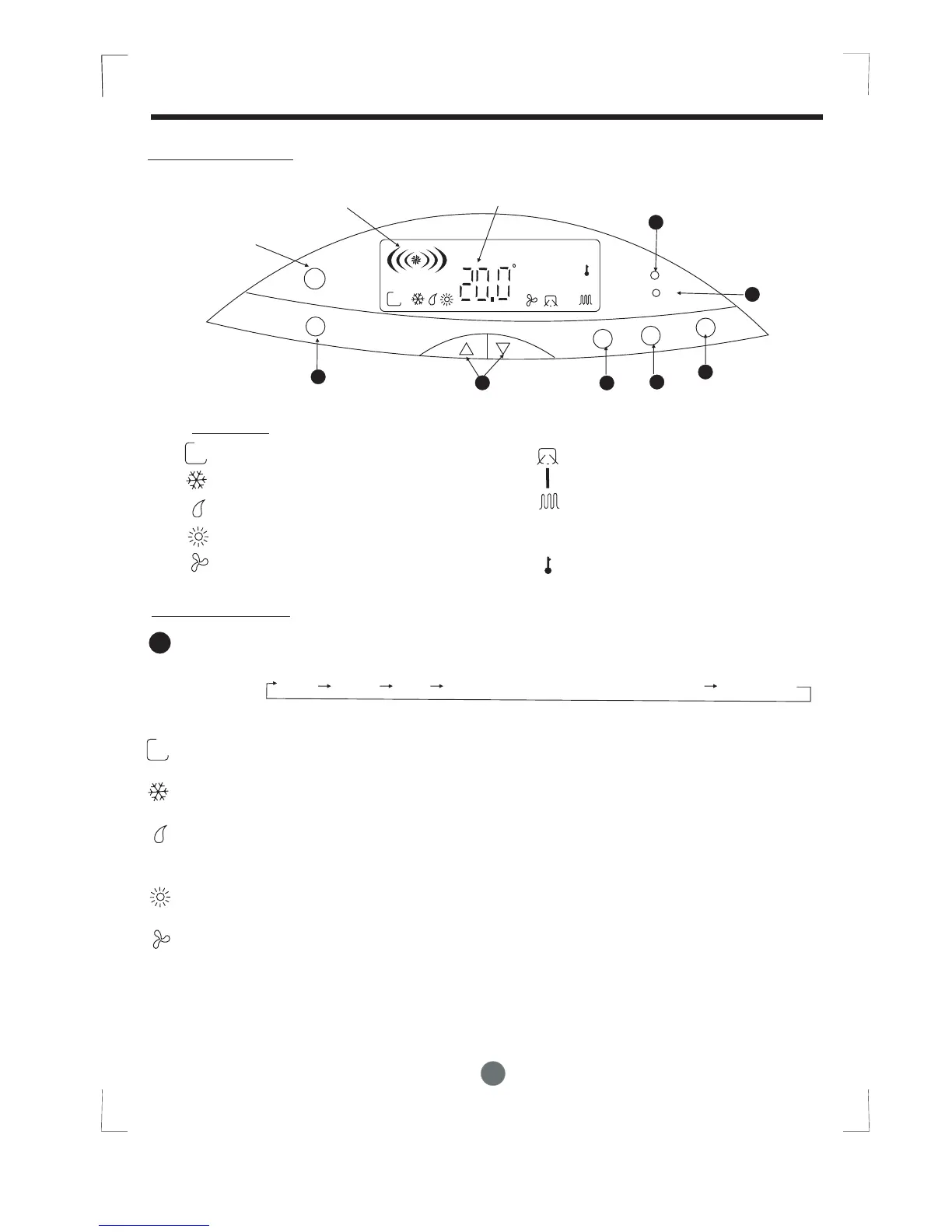

Unit Control Panel
1
2
3
5
4
7
Indicators
Auto operation display
Cooling operation display
Dry operation display
Heating operation display
Fan operation display
Horizontal airflow display
Sleep operation display
Electrical heating operation display
On timer operation display
Off timer operation display
Lock operation display
Fan speed
operation display
Room Temp/Set Temp
/Set Timer display
Operation buttons
Auto: Automatically choose the operation mode by sensing the difference between the actual
ambient room temperature and the set temperature. The fan speed is automatically controlled.
Cool: Enables you to enjoy the cooling effect at you preferred setting temperature (Temperature
O O
setting range:17 C~30 C).
Dry: Enables you to set the desired temperature at low fan speed which provides you with the
O O
dehumidifying surroundings (Temperature range:17 C~30 C). In Dry mode, you can not select
Fan speed and Sleep mode.
Heat: Permits heating operation(For cooling & heating models only) (Temperature setting
O O
range:17 C~30 C)
Fan only: Permits fan operation without cooling or heating effect. In this case, however, the
setting temperature is not displayed and you can not adjust the set temperature.
MODE button: Press this button to select the appropriate operating mode. Each time the
button is pressed, the operation mode is shifted in the direction of the arrow:
AUTO COOL DRY HEAT(for cooling & heating models only) FAN ONLY
Mode indicators illuminates under the different mode settings.
1
h
c
T1
T2
T3
T4
auto
＄
TIMER ON
TIMER OFF
6
TIMER ON
TIMER OFF
auto
S
auto
MODE
F
AN SPEED
ASSIST
FUNCTION
ON/OFF
LOCK
TEST RUN
Remote signal
receiving window
