MCAC-KTSM-2007-2 Explored View
Four Way Cassette Type 23

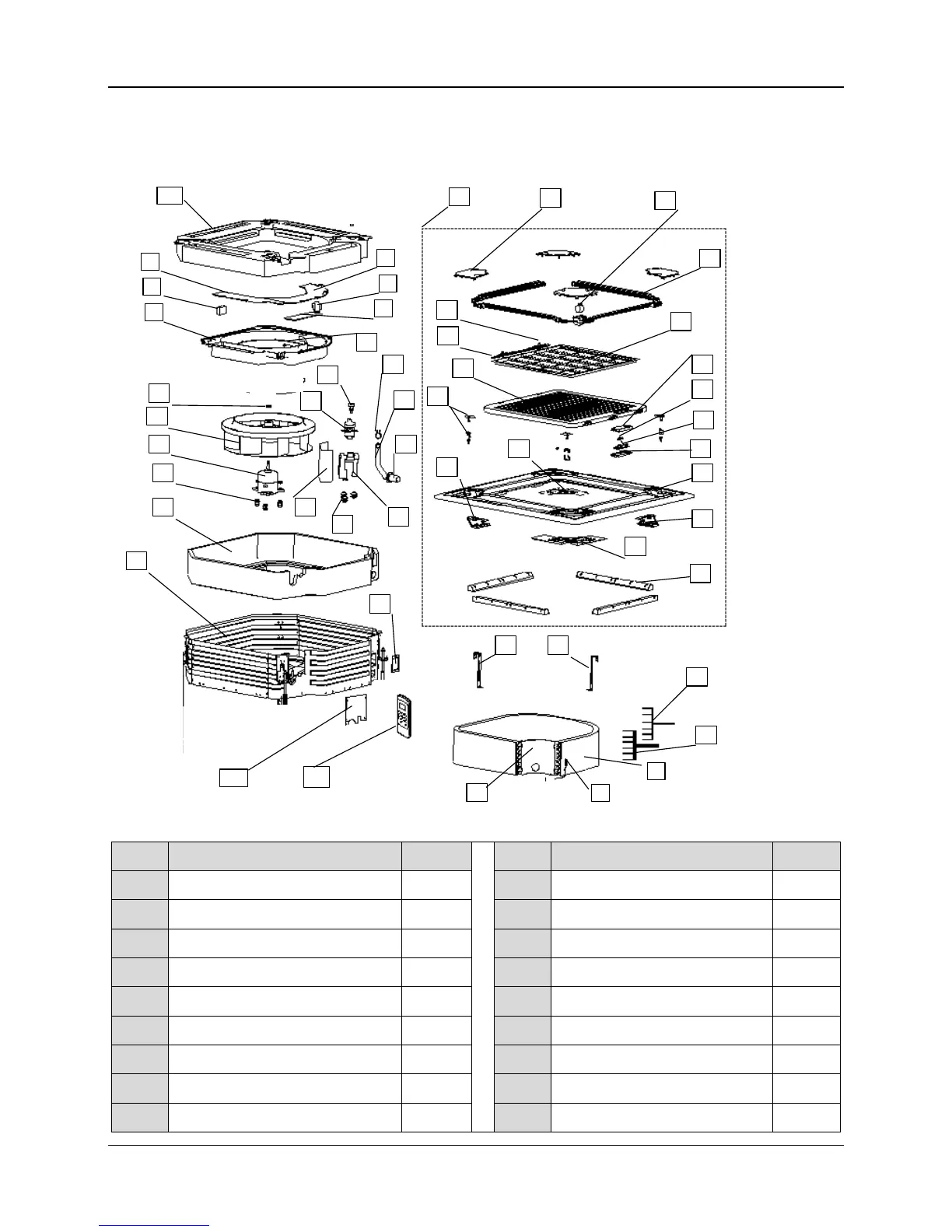

8. Exploded View
MKA-600、MKA-750、MKA-850、MKA-950、MKA-1200、MKA-1500
No.
Part Name
Quantity
No.
Part Name
Quantity
1
Water Receiver, Assembly
1
26
Rubber washer, pump
1
2
Pipe Temperature Sensor Assembly
1
27
holder, pump
1
3
E-Parts Box Cover1
1
28
Water trying board
1
4
Capacity
1
29
Panel Assembly
4
5
E-Parts Box Assembly
1
30
Cover, installing
1
6
E-Parts Box Cover2
1
31
Swing motor
4
7
Transformer
1
32
Fan guide
1
8
PCB Assembly
1
33
Filter
2
9
Evaporator assembly
1
34
Switch, air inlet grille
1
1
2
3
4
5
6
7
8
10
9
11
12
13
14
15
16
17
18
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
19
56
