11 Disassembly Instructions
Note: This part is for reference, the photos may have slight difference with your machine.
11.1 Indoor unit
No.
Parts name
Procedures
Remarks
1
Front panel
How to remove the front
panel.
1) Pull the below side of
the panel and release the
clips. Then remove the
front panel.
2) Remove the filter and
horizontal louver.
3) Remove the four
fixing screws.
4) Remove the cover
(one screw).
5) Lift the panel frame
and release the connector
of display ass’y.
connectors. Then remove
the panel frame
assembly.

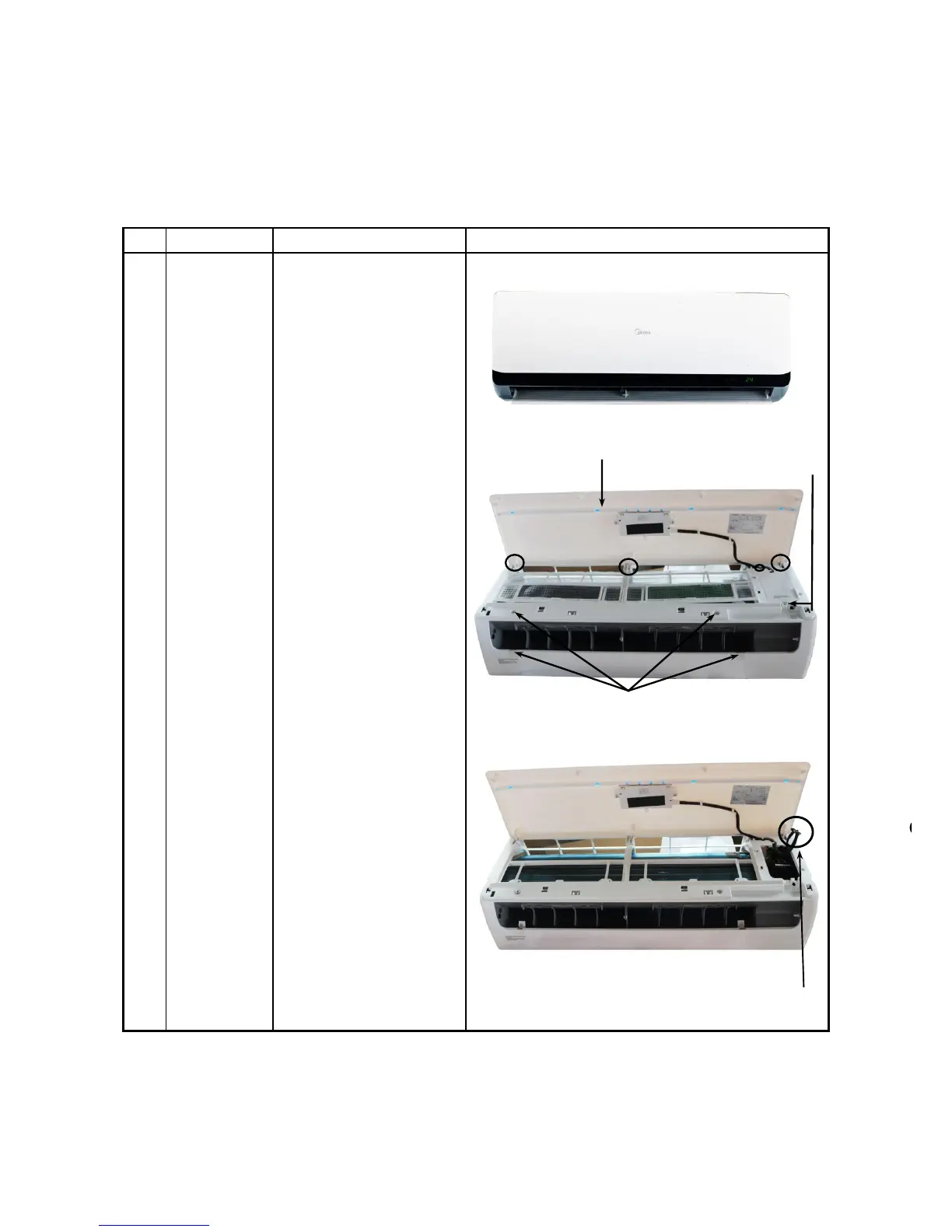

Overview:
Connector for
display ass’y
Clip
One screw
fixing the cover
Clip
Panel
Filter
Four screws
