Insulation Work
Installation
93
4.

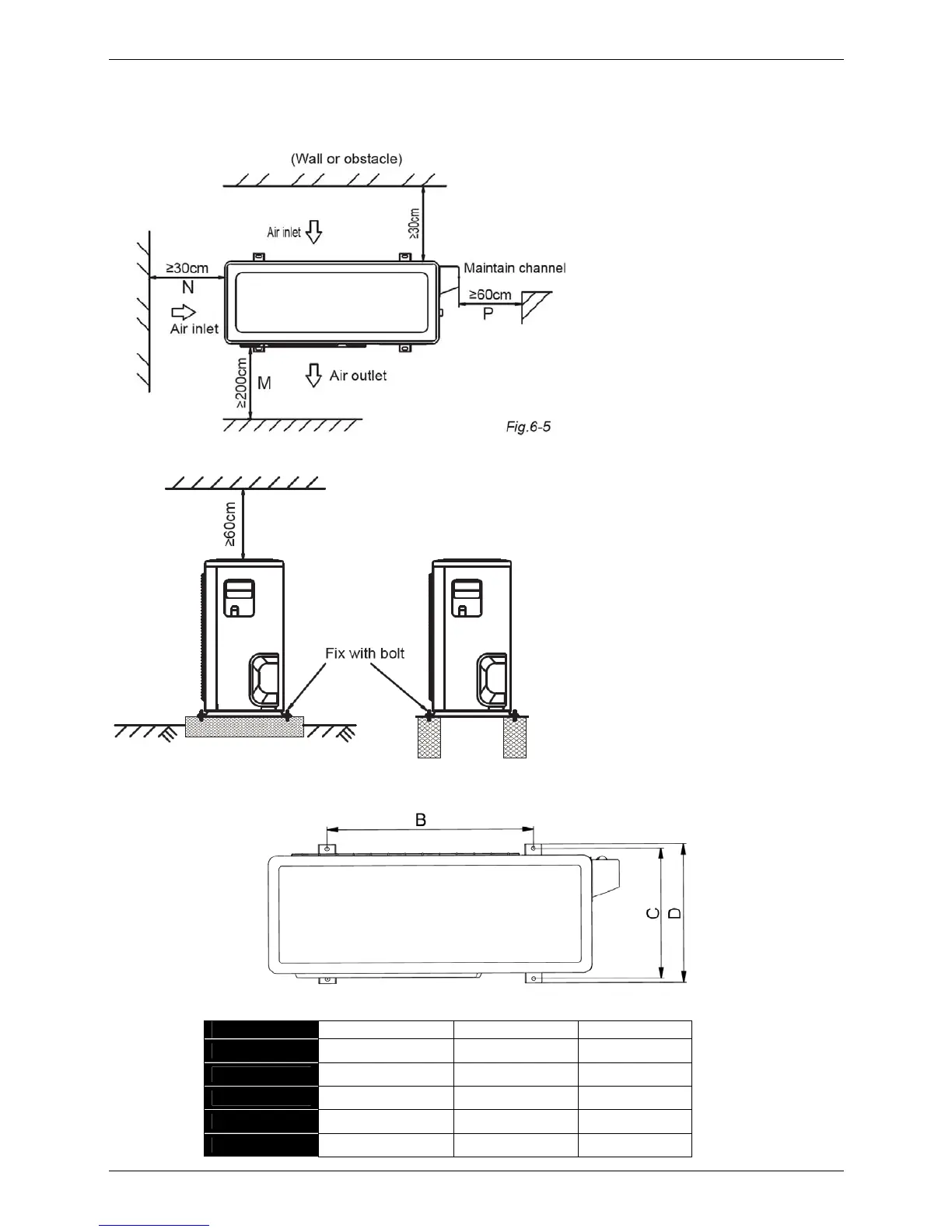

Outdoor unit inst
allation (Side Discharge Unit)
4.1
Service space for out
door unit
4.2 Bolt
pitch
Model
B C
D
MOU-18HN1-Q
530 290
315
MOU-24HN1-Q
560 335
360
MOU-30HN1-Q
624 366
396
MOU-30HN1-R
624 366
396
MOU-36HN1-Q
624 366
396
96
98
