MLCAC-UTSM-2010-10

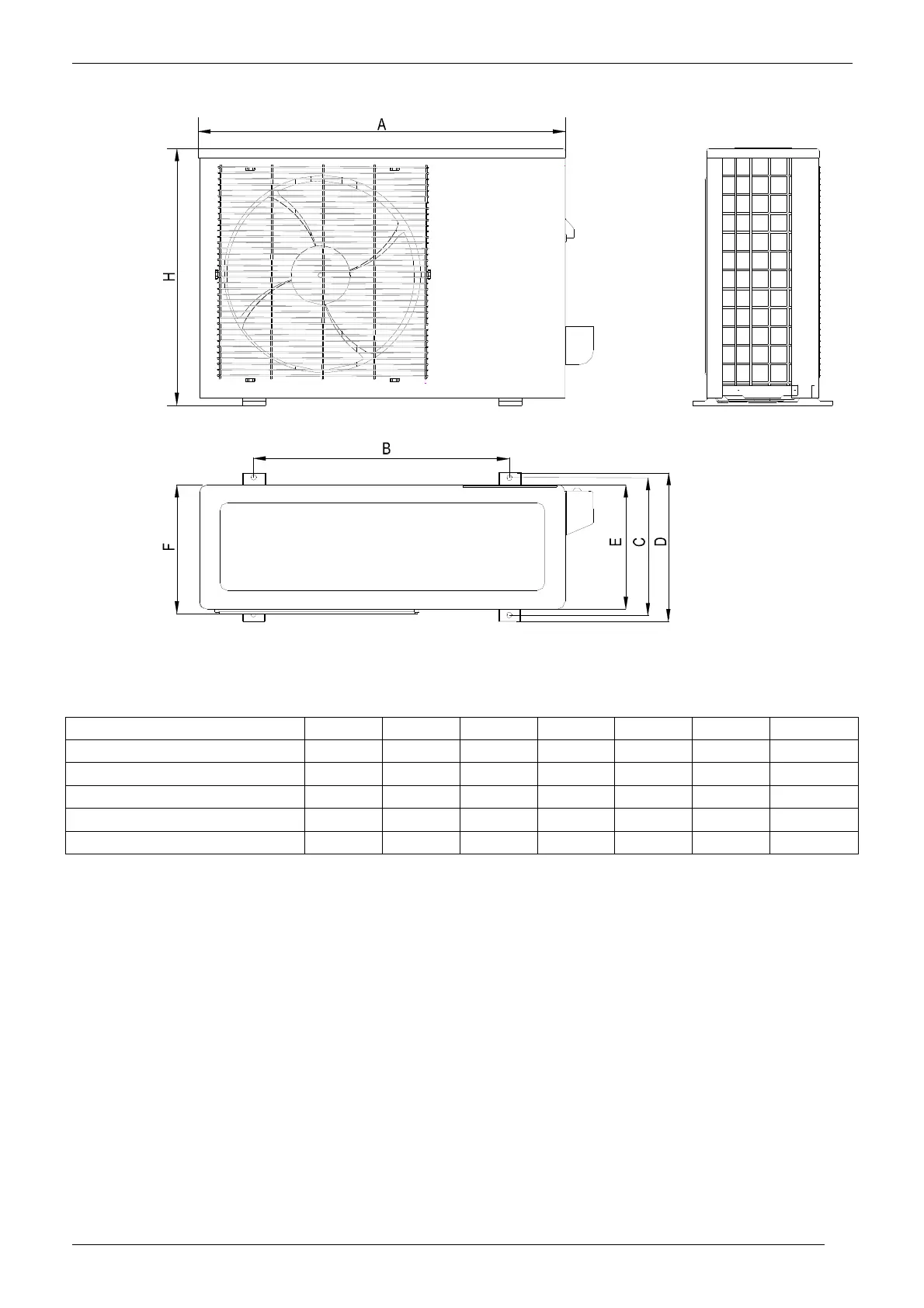

Dimensions
Outdoor
Un
its 75
1. Dimensions
Unit: mm
MODEL
A
B
C
D
E
F
H
MOU-12HDN1
760
530 290 315 270 285
590
MOUA-18HDN1-C0
845
560
335
360
312
320
700
MOUB-24HDN1
900
590
333
355
302
315
860
MOU-30HDN1
990
624
366
396
340
345
965
MOUB-36HDN1-R
990
624
366
396
340
345
965
78
80
Table of Contents
Part 1 General Information
5
Table of Contents
5
Model Names of Indoor/Outdoor Units
6
External Appearance
7
Indoor Units
7
Outdoor Units
8
Nomenclature
9
Features
10
New Four-Way Cassette Type (Compact)
12
Features
13
Dimensions
14
Service Space
14
Wiring Diagrams
15
Air Velocity and Temperature Distributions(Reference Data)
16
Electric Characteristics
17
Sound Levels
17
Accessories
18
The Specification of Power
18
Field Wiring
19
Four-Way Cassette Type
21
Features
22
Dimensions
25
Service Space
26
Wiring Diagrams
27
Air Velocity and Temperature Distributions(Reference Data)
28
Electric Characteristics
29
Sound Levels
29
Accessories
30
The Specification of Power
32
Field Wiring
33
Duct Type
35
Features
36
Dimensions
37
Service Space
38
Wiring Diagrams
39
Static Pressure
40
Electric Characteristics
42
Sound Levels
43
Accessories
44
The Specification of Power
45
Field Wiring
46
Ceiling & Floor Type
49
Features
50
Dimensions
51
Service Space
53
Wiring Diagrams
54
Air Velocity and Temperature Distributions(Reference Data)
56
Electric Characteristics
58
Sound Levels
59
Accessories
60
The Specification of Power
61
Field Wiring
62
Console Type
65
Features
67
Dimensions
68
Service Space
69
Wiring Diagrams
70
Air Velocity and Temperature Distributions(Reference Data)
71
Electric Characteristics
72
Sound Levels
73
Accessories
74
The Specification of Power
75
Field Wiring
76
Part 3 Outdoor Units
78
Dimensions
79
Service Space
81
Piping Diagrams
82
Wiring Diagrams
83
Electric Characteristics
88
Operation Limits
89
Sound Levels
90
Point Check Function
91
Troubleshooting
92
Part 4 Installation
119
Precaution on Installation
120
Vacuum Dry and Leakage Checking
121
Additional Refrigerant Charge
123
Water Drainage
124
Insulation Work
127
Wiring
128
Test Operation
129
