Midea MV5-X335W/V2GN1-AU User Manual

MCAC-VTSM-2015-10 R410A All DC Inverter V5 X Series 50Hz
Installation 89
A
A≥300
ESP
Remarks
B
B≥250
0Pa
Factory default
C
C≤3000
0~20Pa
Remove the mesh cover and connect to the duct which is less than 3 meters.
D
D=A+750
≥20Pa
Customizable
θ
θ≤15°

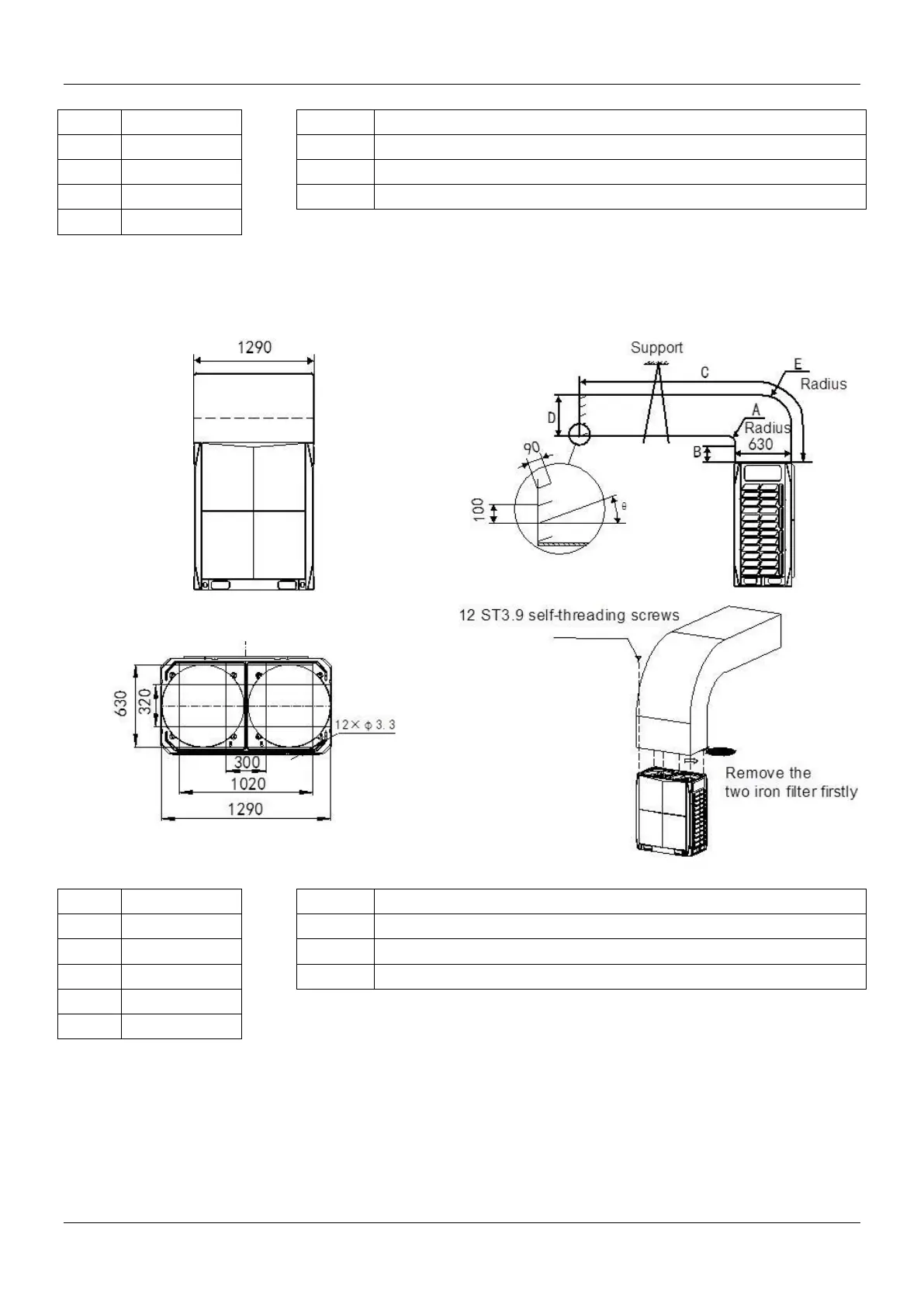

2.2 Installation of 14, 16, 18, 20, 22HP
Example A
Unit: mm
A
A≥300
ESP
Remarks
B
B≥250
0Pa
Factory default
C
C≤3000
0~20Pa
Remove the mesh cover and connect to the duct which is less than 3 meters.
D
630≤D≤660
≥20Pa
Customizable
E
E=A+630
θ
θ≤15°
