R410A All DC Inverter V5 X Series 50Hz MCAC-VTSM-2015-10
132 Troubleshooting

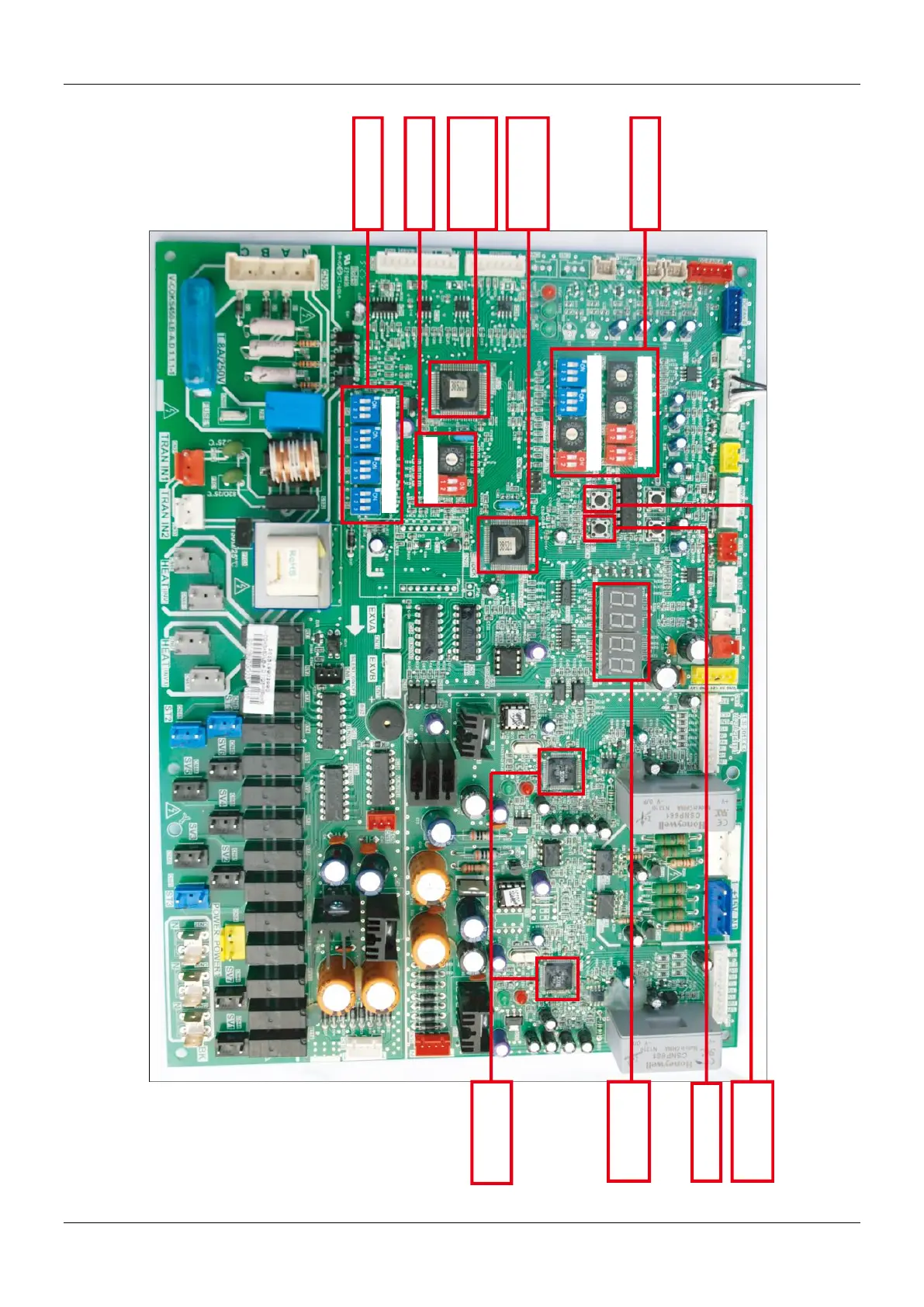

1.2 Main PCB parts instructions
ENC1
ENC3
S12
S3
S7
S1
ENC2
S4
S2
S5
S6
ENC4
S10
Forced cooling
button
Query button
LED digital
tube display
Inverter
drive chip
Main control
chip
Communication
chip
Dial switch
Dial switch
Dial switch
