GD Midea Refrigerant Equipment Co. Ltd Service manual for E1 Window
4

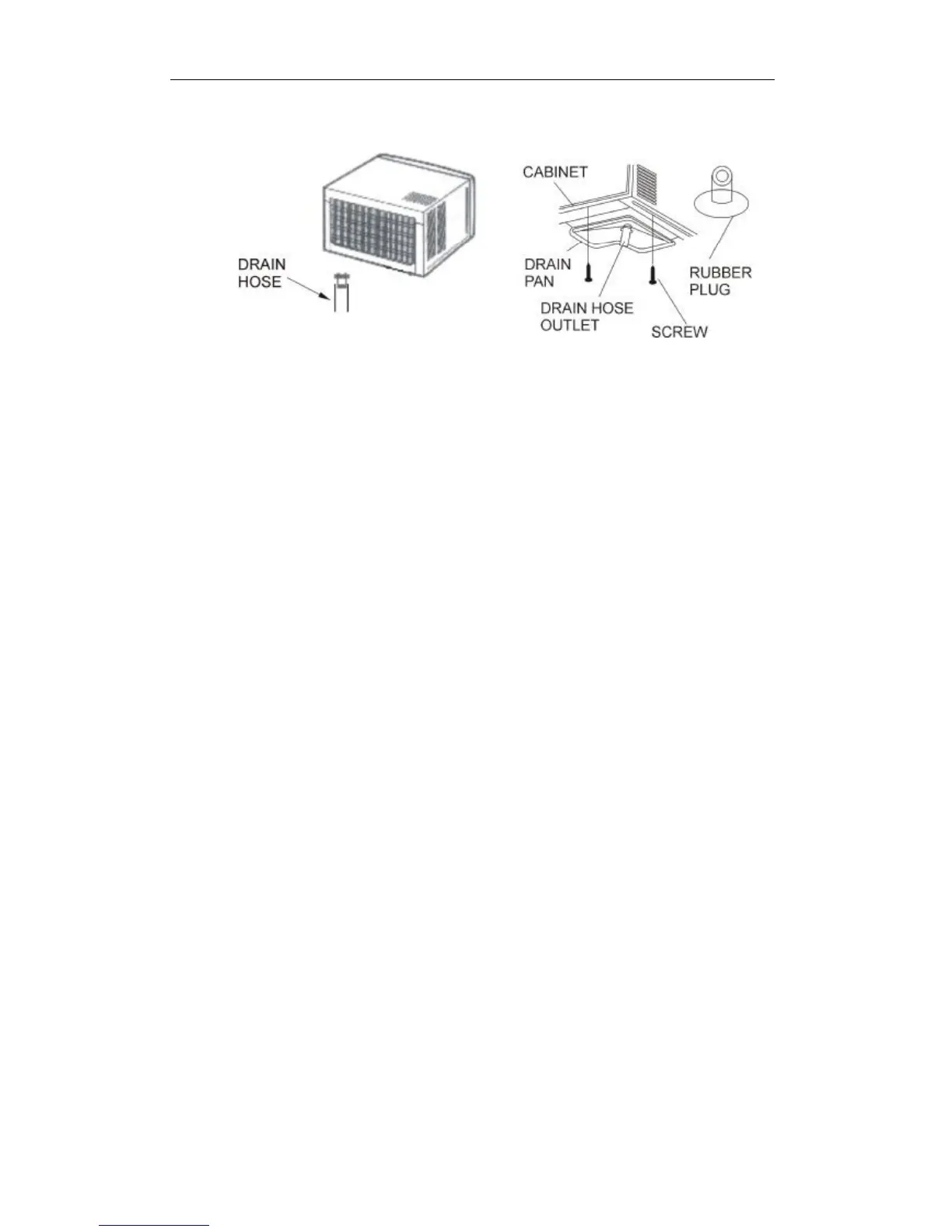

4. Connect the drain hose to the outlet located at the bottom of the drain pan. You can
purchase the drain hose or tubing locally to satisfy our particular needs (Drain hose is
n
o
t
s
u
p
p
li
e
d).
2.4 HOW TO INSTALL
2.4.1 Installation of the housing
Step 1
Remove the air conditioner from it's packaging, remove fixing screws and slide the air
conditioner out of it's housing (Refer to Installation Steps).
Step 2
Prepare the hole in the wall so that the bottom of the housing is well supported, the top
has minimum clearance and the air inlet louvers have clearance as shown below in
options A and B. Holes from the outside through to the cavity should be sealed. The
housing should slope down towards the rear b about 5mm to allow water formed during
operation to drain.
Step 3
Install the housing into the wall and secure. Ensure the foam seals are not damaged.
Flash, seal or fill gaps around the inside and outside to provide satisfactory appearance
and protection against the weather, insects and rodents.
