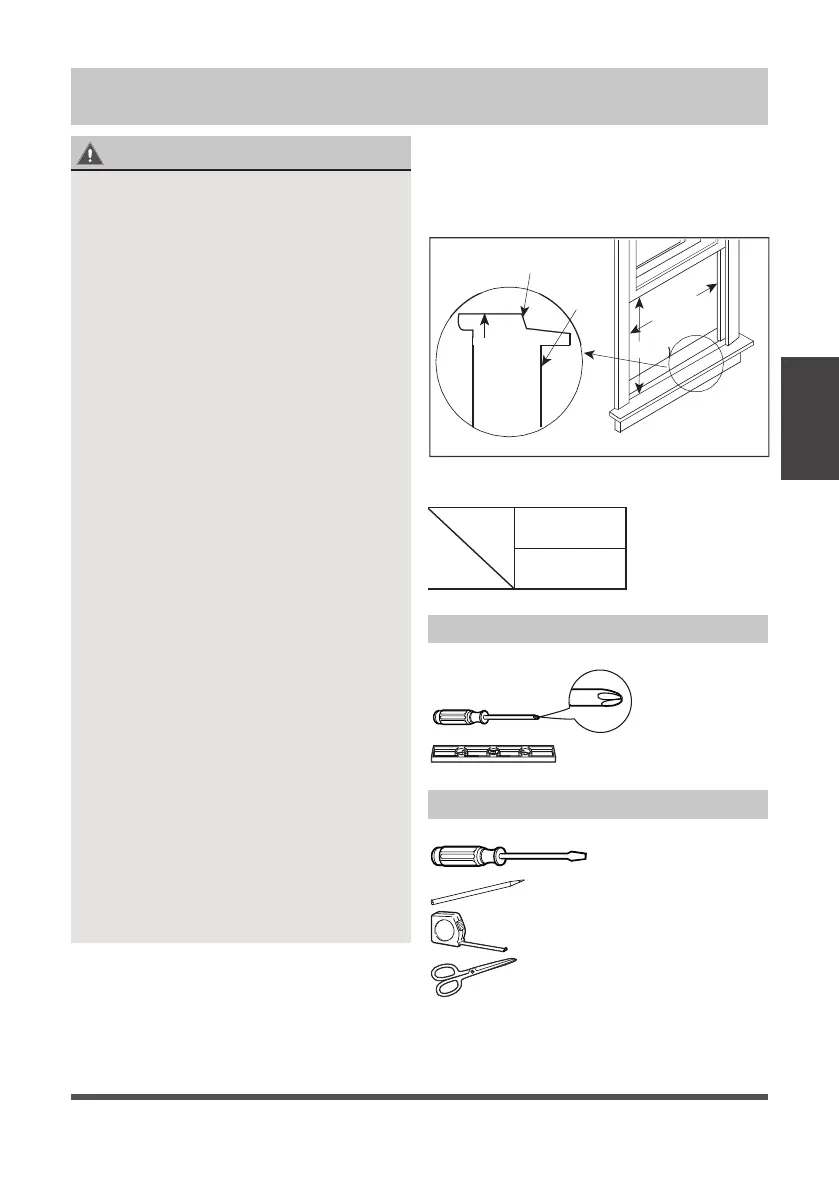

Installation Instructions
WARNING - Before You Begin
Read these instructions completely and
carefully.
• IMPORTANT - Save these instructions
for local inspector’s use.
• IMPORTANT - Observe all governing
codes and ordinances.
• Note to Installer - Be sure to leave
these instructions with the consumer.
• Note to Consumer - Keep these
instructions for future reference.
• Skill level - Installation of this
appliance requires basic mechanical
skills.
• Completion time - Approximately 1
hour. We recommend that two people
install this product.
Proper installation is the responsibility of
the installer.
Product failure due to improper
installation is not covered under the
Warranty.
You MUST use all supplied parts and
use proper installation procedures as
described in these instructions when
installing this air conditioner.
Do not, under any circumstances, cut or
remove the third (ground) prong from
the power cord.
Do not change the plug on the power
cord of the air conditioner.
Aluminum house wiring may present
special problems - consult a qualified
electrician.
When handling the unit, be careful to
avoid cuts from sharp metal edges and
aluminum on front and rear coils.
Your air conditioner is designed to install
in standard double hung windows with
opening widths of 23 to 36 inches (584mm
to 914mm)
H
OFFSET
EXTERIOR
WALL
23” to36”
584mm to 914mm
INNER
WINDOW
SILL
INTERIOR
WALL
Wooden Windows
Table 1
Model
H
5000~6000
BTU/h
13”
(330mm)
Tools You Will Need
Phillips
Screwdriver
Level
Tools You May Use
Flathead
Screwdriver
Pencil
Ruler or tape
measure
Scissors or knife
To Next Page
