3. Installing the control panel.

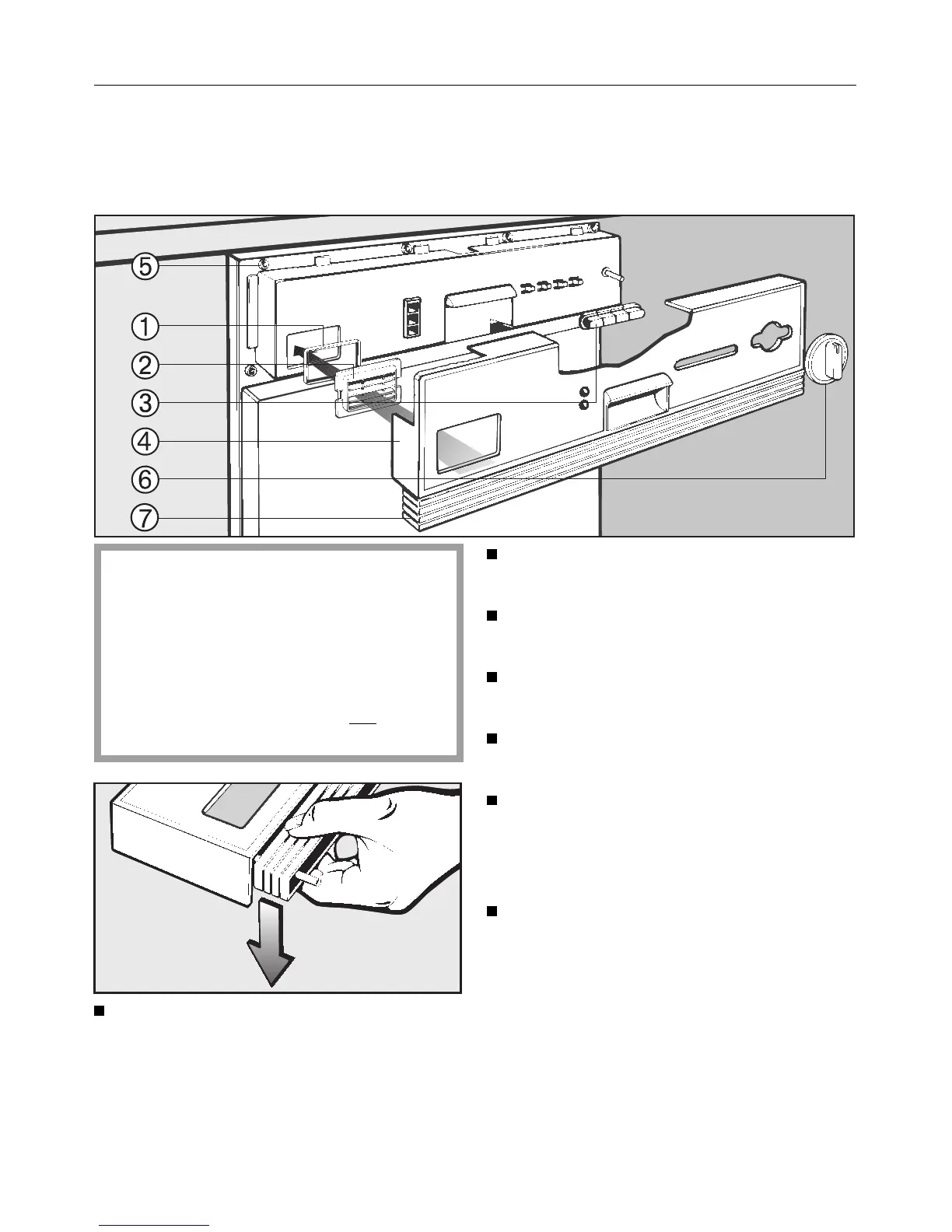

The control panel and hardware is packaged separately from the dishwasher. It
should be installed using the following procedure.
If a GDU decor kit is being used, (to
convert an "i" diswasher to a "U" ver-
sion), the spacer bars
h must first be
removed and stored for possible use
in the future, (See the separate in-
structions for installing the GDU
decor kit). If the GDU kit is
not being
used, skip the following step.
To remove the spacer bars from the
control panel, place the panel on a
table, printed side up, and gently
push down on the spacer bars at a
point near the bottom of the control
panel. This will release the mounting
bolts from their slots.
Install the necessary spacer bars h
on the control panel.
Place the supplied seal b onto the
ventilation grill.
c.
Push the ventilation grill c into the
metal backing plate.
Place the cover strip d over the
pushbutton switches.
Place the control panel e over the
backing plate and fasten it from the
inside of the door
fusing the six
screws provided.
Align and press the program knob
onto its shaft
g.
