Installation diagrams
97

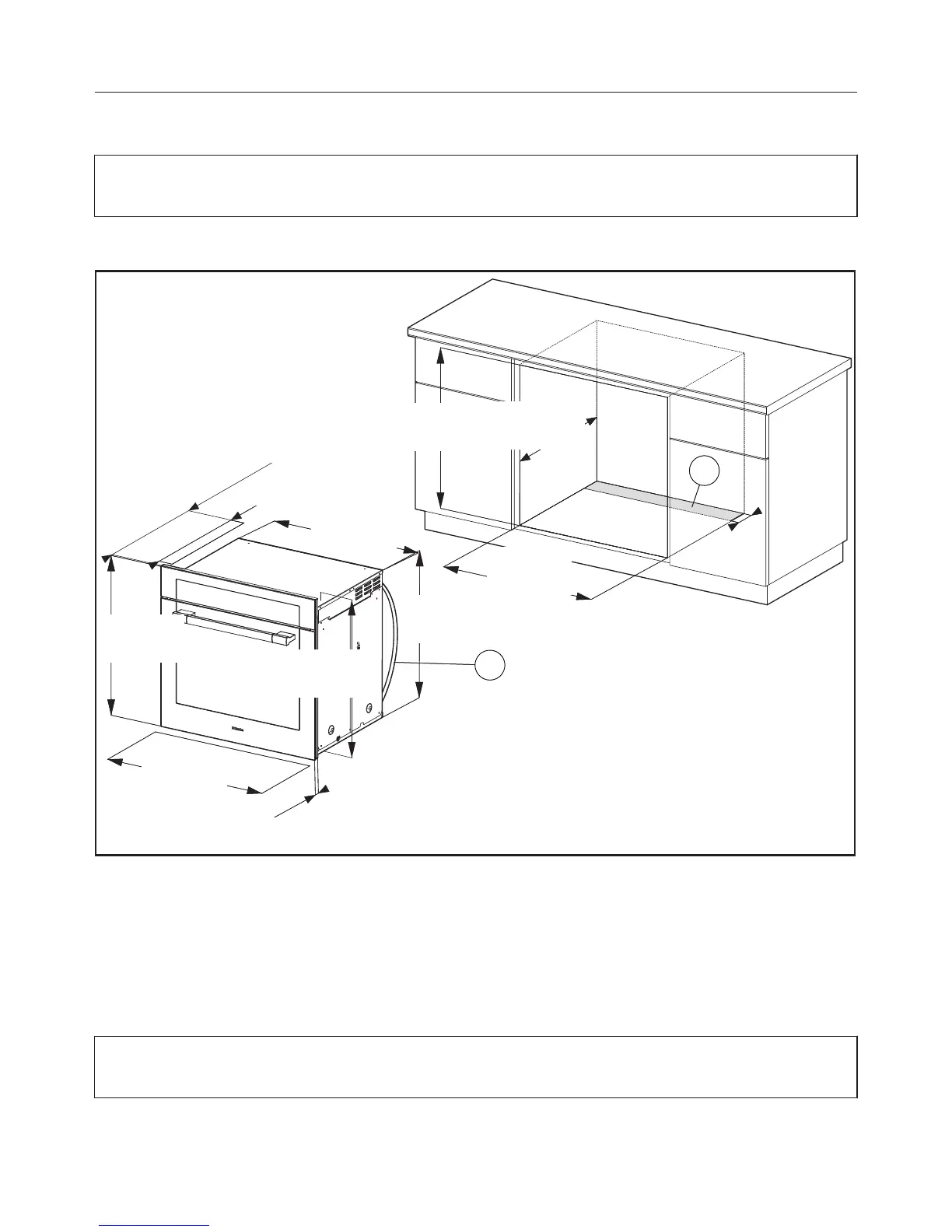

Appliance and cut-out dimensions
Miele ovens can be installed flush or proud. Discuss your installation
requirements with your architect, designer and installer.
Undercounter installation
B
A
B
A
23 3/4" (603 mm)
22 9/16" (573 mm)
28 7/16"
(722 mm)
26 3/8"
(670 mm)
27 3/4"
(705 mm)
7/8" (22*/23** mm)
29 13/16"
(757 mm)
28 5/8"
(727 mm)
28 1/4"
(718 mm)
28 1/2"
(724 mm)
4"
(100 mm)
24"
(610 mm)

Cut-out (4" x 28" / 100 mm x 720 mm) in the bottom of the cabinet for power
cord and ventilation

Power cord with plug
* Oven with glass front
** Oven with metal front
Front design may vary depending on model. For the more current specifications
please visit the Miele website.
