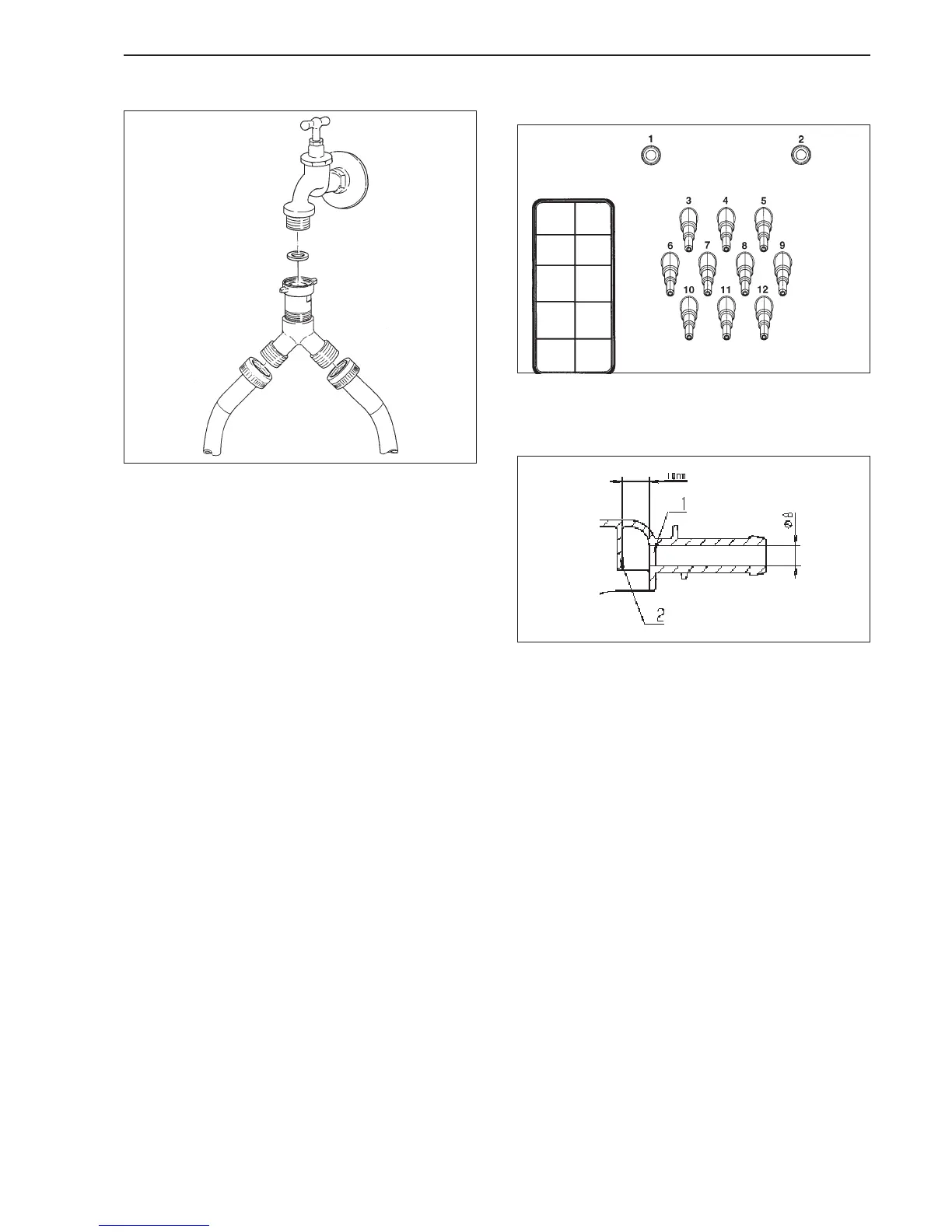

Cold water supply
A Y-piece connnector is supplied with the machine.
Liquid agent dispensing mixing box
connections
Connections 1 and 2 are for viscous agents only.
These connections are sealed and have to be drilled
open with an 8 mm drill bit.
Be careful to only drill through the first wall (1). There
is a second one located 10 mm behind it (2) to
deflect the agent and this must not be drilled into.
Any connections that have been drilled open must be
resealed if they are subsequently not required.
Connections 3 to 12 are for liquid agents only. These
connections are also sealed and have to be trimmed
to the correct diameter for the hoses being used with
a suitable small saw.
Any connections that have been opened must be
resealed if they are subsequently not required.
Installation and connection
35
1"
3/4"
