Milnor 30022H7J User Manual

R
Pellerin Milnor CorporationPellerin Milnor Corporation
P. O. Box 400, Kenner, LA 70063-0400
Litho in U.S.A.
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.

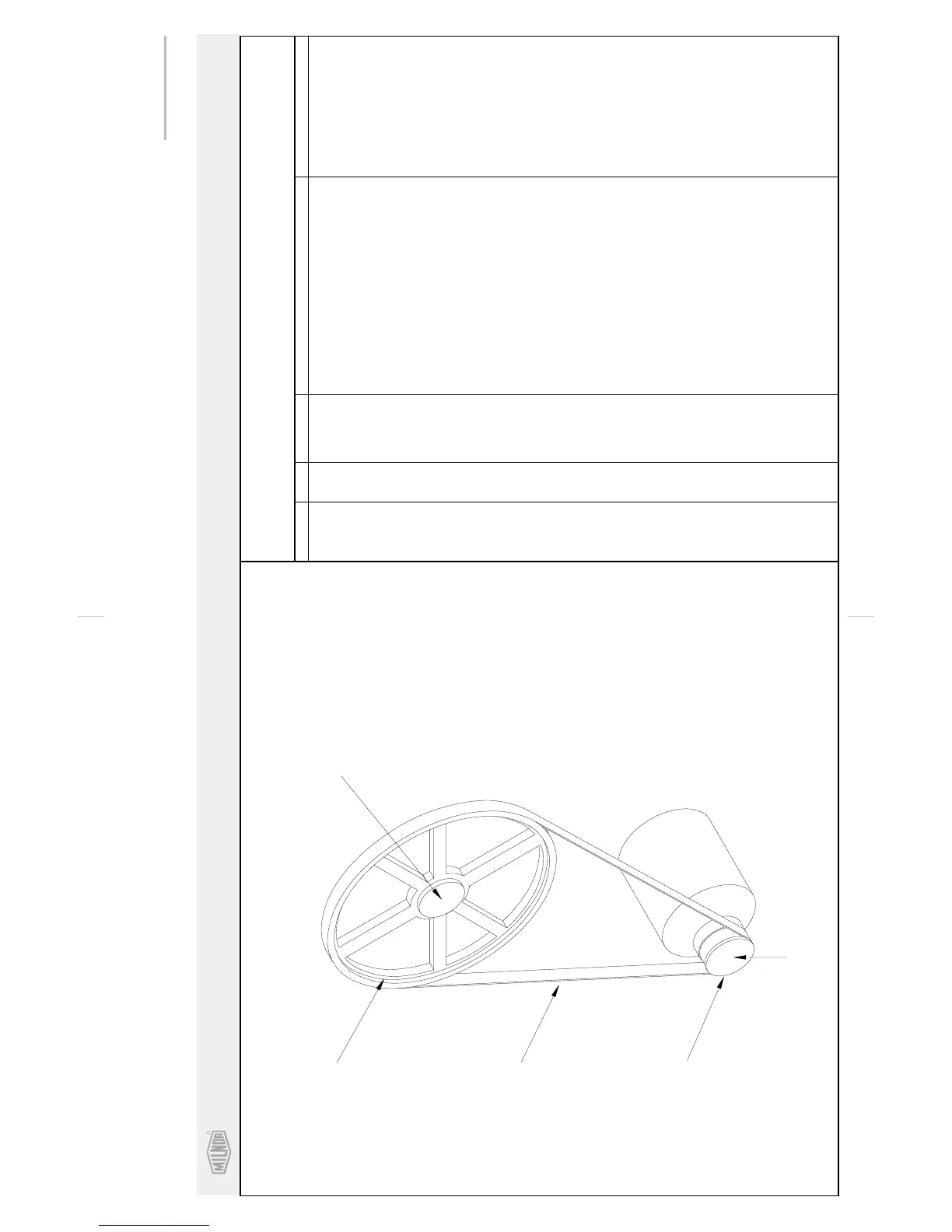

Parts List—Drive Chart
BMP000006/2001036V
(Sheet 1 of 1)
. ---------------------------------------------------------------------ASSEMBLIES------------------------------------------------------------------
A D33 03260 94000Z DRIVE CHART-3015/22V4 60CYC 30015 & 30022T5J
-------------------------------------------------------------------COMPONENTS------------------------------------------------------------------ all 1 562240R3SF VPUL 3G3V22.4 (SF) MTO SPECIAL all 2 56VR082XB3 VBAND 3R3VX820 EA = 1 BELT all 3 56Q1KSF 1+1/2" BUSH VPUL QD TYPE SF all 4 560260R3JA VPUL 3G3V2.60 QD TYPE JA all 5 56Q0RJA 7/8" BUSHING VPUL QD TYPE "JA" all 6 15E230 STRMACHKEY 3/8SQX2+1/2 TOL.+0
Drive Chart 30015T5J,T5E & 30022T5J,T5E
2
5
1
3,6
4

Milnor 30022H7J Specifications

General

Brand	Milnor
Model	30022H7J
Category	Washer
Language	English
