2-Way Electric Water Valve
Identification and Description
Check nameplate for correct catalog number, pressure, voltage, and service.
Safety Instructions
Lock OFF and tag out power at wall disconnect before servicing. Power
switches on machine and control box disable only control circuit power in
electrical boxes.
DANGERDANGER
SHOCK HAZARD will cause death or severe injury.
+
WARNING
CAUTION
Release pressure to valve before disassembly.
EXPLOSION HAZARD may cause serious injury.
+
Allow solenoids to cool before servicing the valves.
BURN HAZARD Solenoid enclosures become too hot to touch when energized
for a long period. This will not damage the solenoid, but may cause a painful
burn.
+
Maintenance
READ ALL SAFETY STATEMENTS ABOVE BEFORE PROCEEDING ANY FURTHER!
Coil Replacement
1
2
3
4
. Remove retaining clip. NOTE: Whe metal retaining clip disengages, it springs upwards.
. Slip yoke containg coil and sleeves off solenoid base sub-assembly.
. Replace coil.
. Reassemble in reverse order.

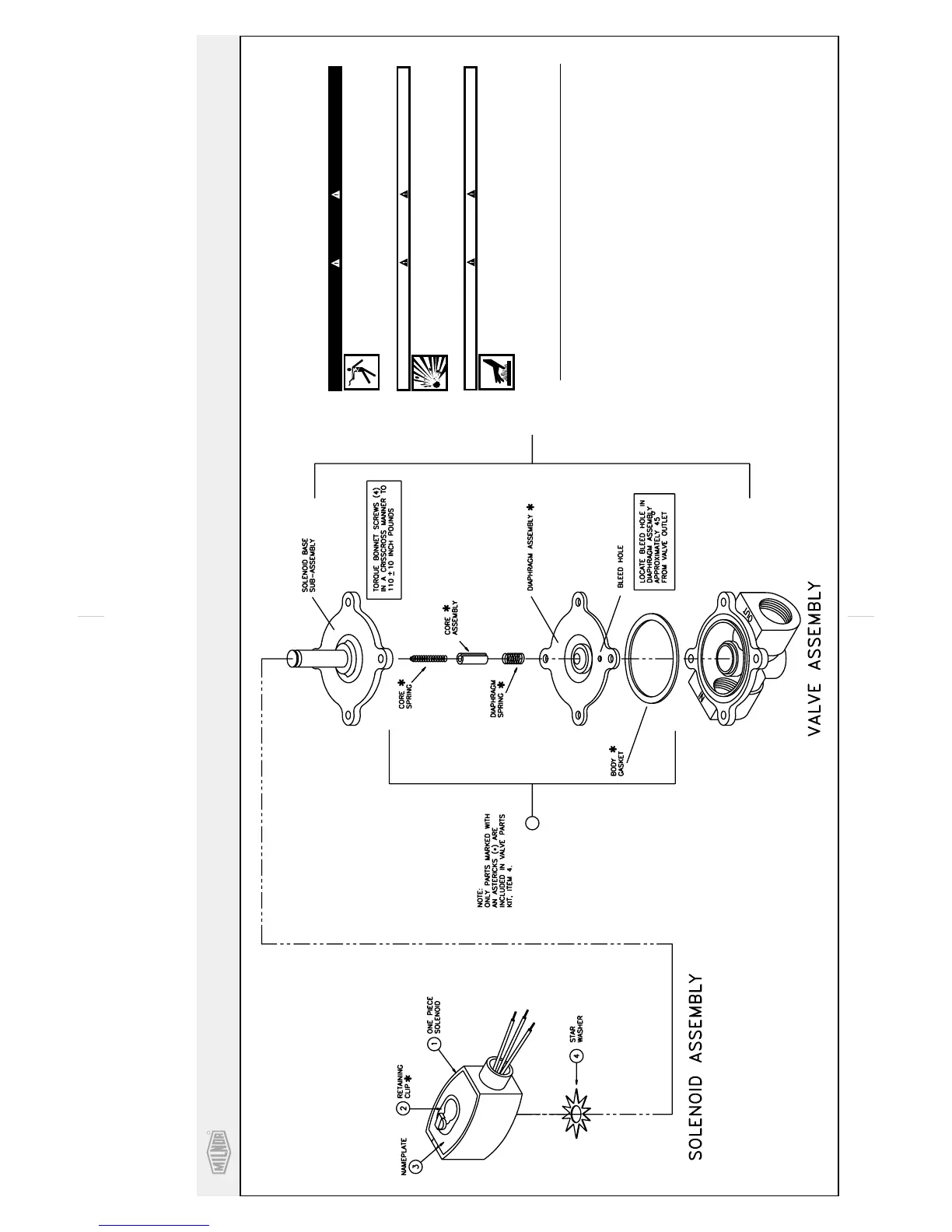

Valve Disassembly and Reassembly
1
2
3
4
6
. Remove retaining clip.
. Slip entire solenoid enclosure off the solenoid base sub-assembly.
. Remove solenoid base sub-assembly, core assembly and core spring.
. Remove diaphragm spring, diaphragm assembly and gasket.
5. Replace all worn or damaged parts.
. Reassemble in reverse order.
Troubleshooting
Control Circuit
Faulty coil
Low voltage
Incorrect pressure
Excess leakage
: Listen for a metallic click when energizing the solenoid. Absence of the click
indicates loss of power to the solenoid. Check for loose connections, blown
fuses, open or grounded coil circuit, and broken lead wires.
: Check for open circuit in coil. Replace coil if necessary.
: Voltage across coil leads must be at least 85% of nameplate rating for proper
operation.
: Pressure to valve must be within range specified on nameplate.
: Disassemble valve and clean all parts. Replace all worn parts for best
results.
