Parts List—Drain Sump Installation
BMP920014/2004055V
(Sheet 1 of 1)
.
-------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 1 02 03366A DRAIN SUMP GASKET 1/8"EPDM
all 2 02 03332A BODY=SUMP-1608 GLASTIC
all 3 24G018N ROLLED WASH.194ID NYLTITE 10W
all 4 15P050 PHDCUT-F PANHD 10-32X3/4 SS410

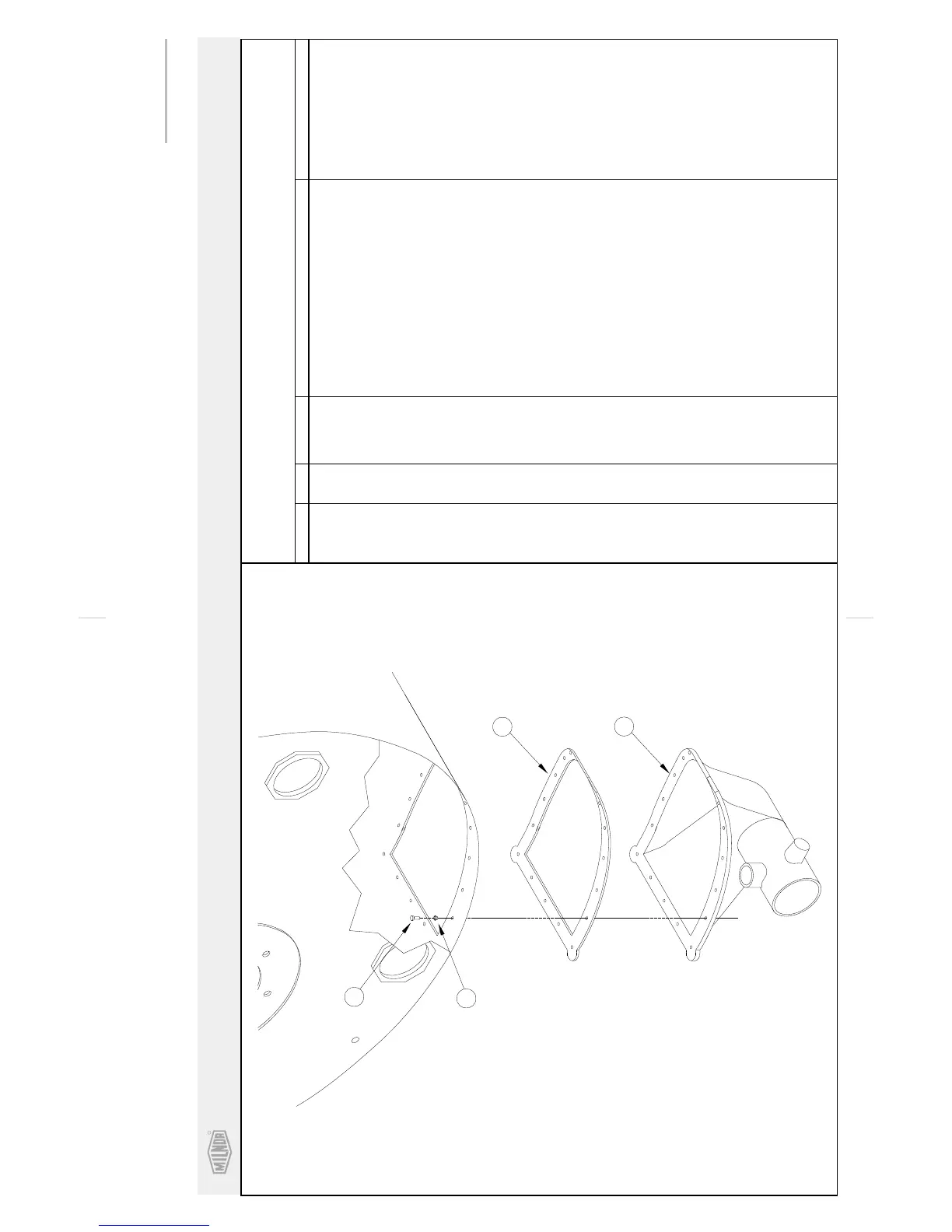

Drain Sump Installation
3010 G5E,G5X,CGE; 3015G5E,G5X,CGE
30015, 30022Vxx, Txx, C4A, C4T, C4E; 30015, 30020, 30022Qxx
SHELL
1
2
4
3
