page 3

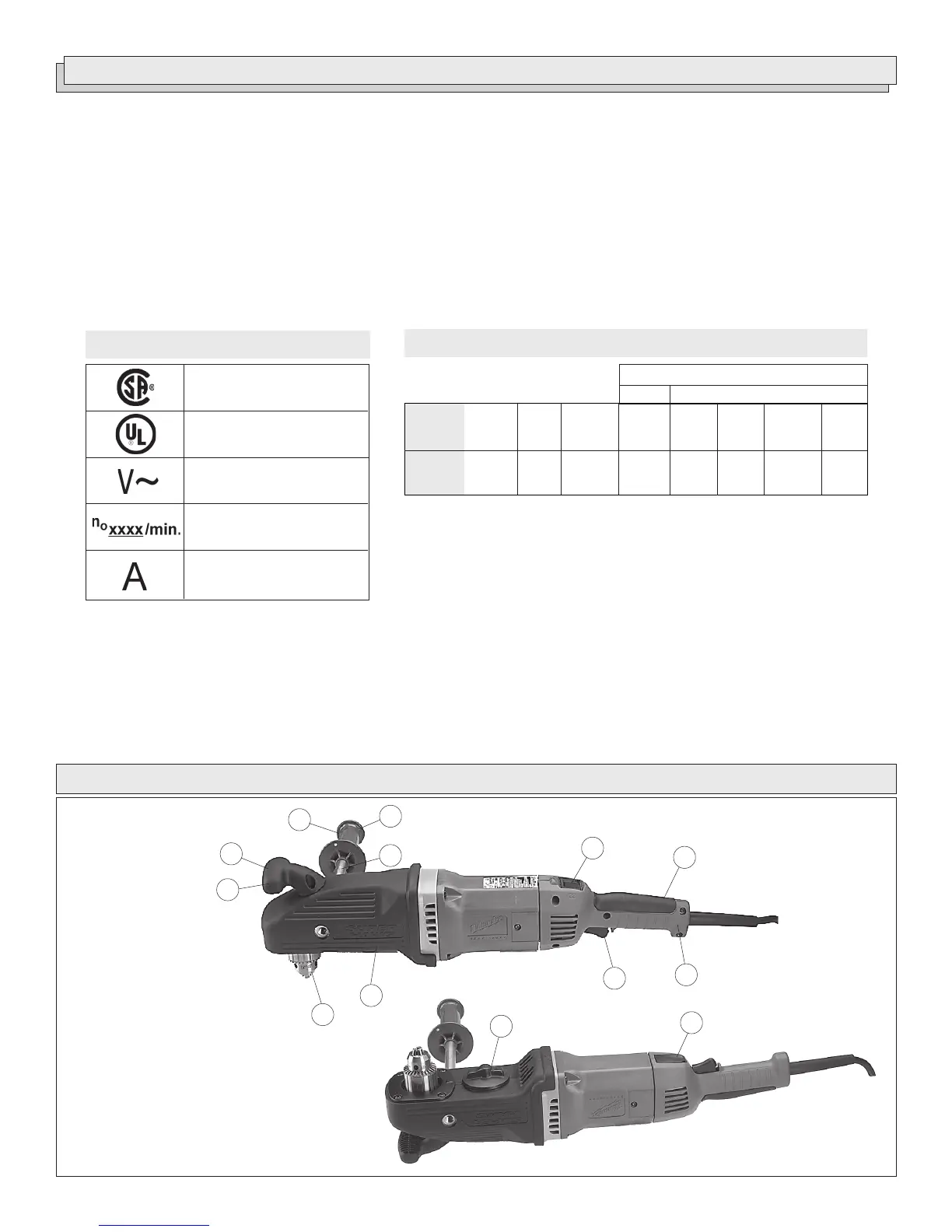

FUNCTIONAL DESCRIPTION
1. Front handle
2. Chuck
3. Trigger switch
4. Reversing switch
5. Switch handle
6. Gearcase
7. Extension
8. Side handle
9. Shift knob
10. Handle rotation release button
11. Insulated gripping surfaces
1. Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its
own cord. Contact with a “live” wire will make exposed metal parts of tool “live” and shock the operator.
2. Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a
MILWAUKEE
service facility for a free
replacement.
3. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paint
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in
a well ventilated area, and work with approved safety equipment, such as those dust masks that are specifically designed to filter out
microscopic particles.
SPECIFIC SAFETY RULES
Amperes
Symbology
Canadian Standards
Association
Underwriters
Laboratories, Inc.
Volts Alternating Current
No Load Revolutions
per Minute (RPM)
No Load
RPM
1750
450
Volts
AC only
120
Catalog
Number
1680-20
Specifications
Speed
High
Low
Selfeed
Bit
2-9/16"
4-5/8"
Auger
Bit
1-1/2"
1-1/2"
Twist
Bit
5/16"
1/2"
Ship
Auger
Bit
1-1/2"
1-1/2"
Hole
Saw
4"
6"
Steel Wood
Capacity
2
3
4
1
6
5
7
8
10
11
9
11
11
