Installation of DP-9900Plus/DP-9900/DP-9600 Systems
6-2
2. Remove the two screws from the bottom of the rear cover of the monitor.
3. Stand behind the monitor, hold the two sides of the rear cover of the monitor, push down
the front edge of the rear cover and pull it backward to remove the rear cover.

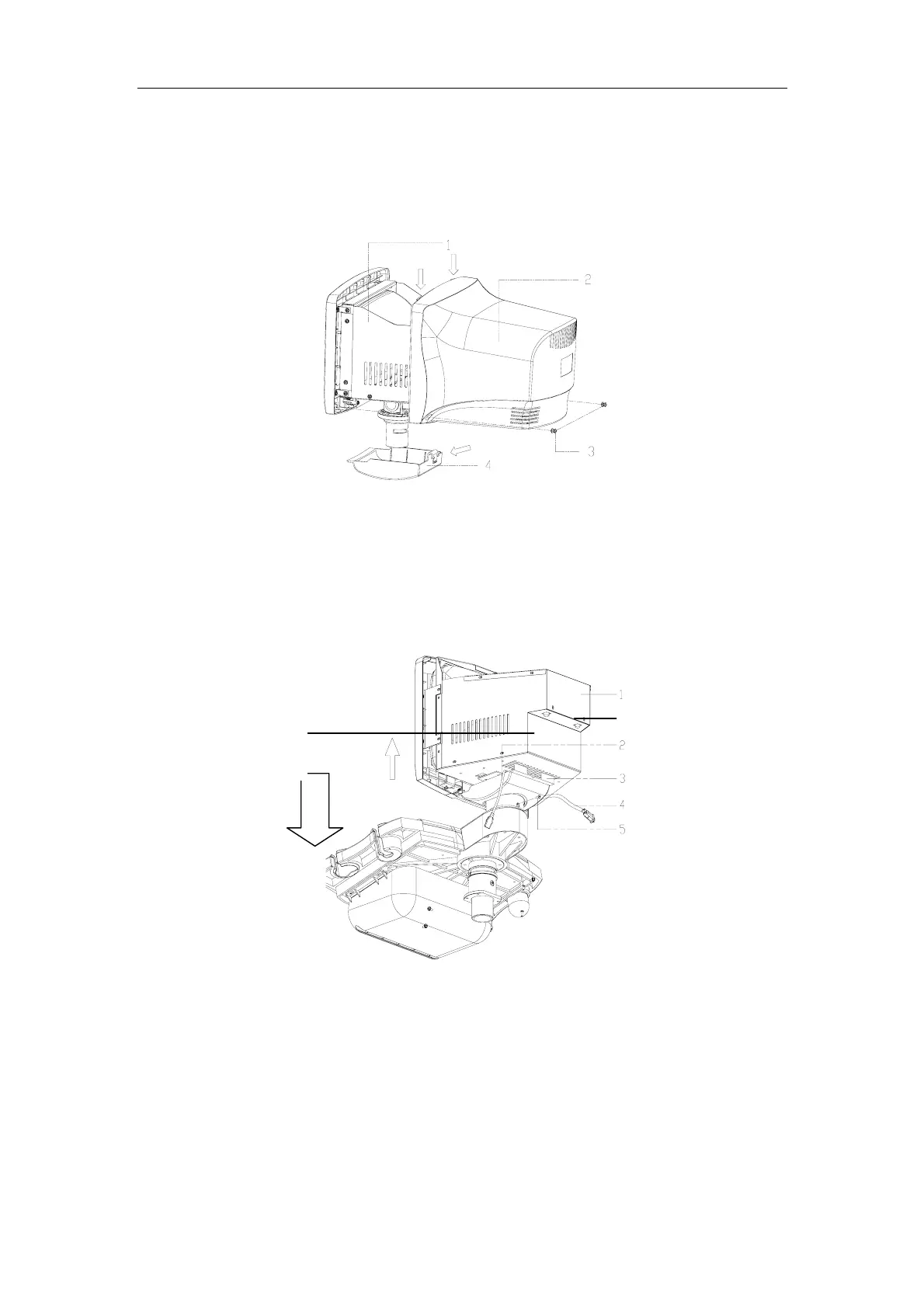

Figure 6-3 Installation of monitor (2)
4. Thread the power cable and signal cable of the monitor through the installation hole.
5. Place the support of the monitor into the sleeve on the keyboard.
Figure 6-4 Installation of monitor (3)
6. Connect the power cable and signal cable to the corresponding ports at the back of the
monitor, and tighten them by nuts.
7. Install the rear cover of the monitor and fit it with the front cover, and then tighten two
M4x8 screws at the bottom of the rear cover.
8. Install the neck cover at the bottom of the front cover, and buckle it into the rear cover of
Monitor
Neck cover
Rear cover o
monitor
M4x8 screw
Monitor
Power cable port
Data cable
Swing bearing
Power cable
M5X16 hexagon socket
screw
Data cable
port
