Mindray VS-800 Service Manual

Machine Disassembly/Assembly and Troubleshooting
4-1
Chanpter4 Machine Disassembly/Assembly and
Troubleshooting
4.1 Disassembly/Assembly Figure
4.1.1 Host Assembly

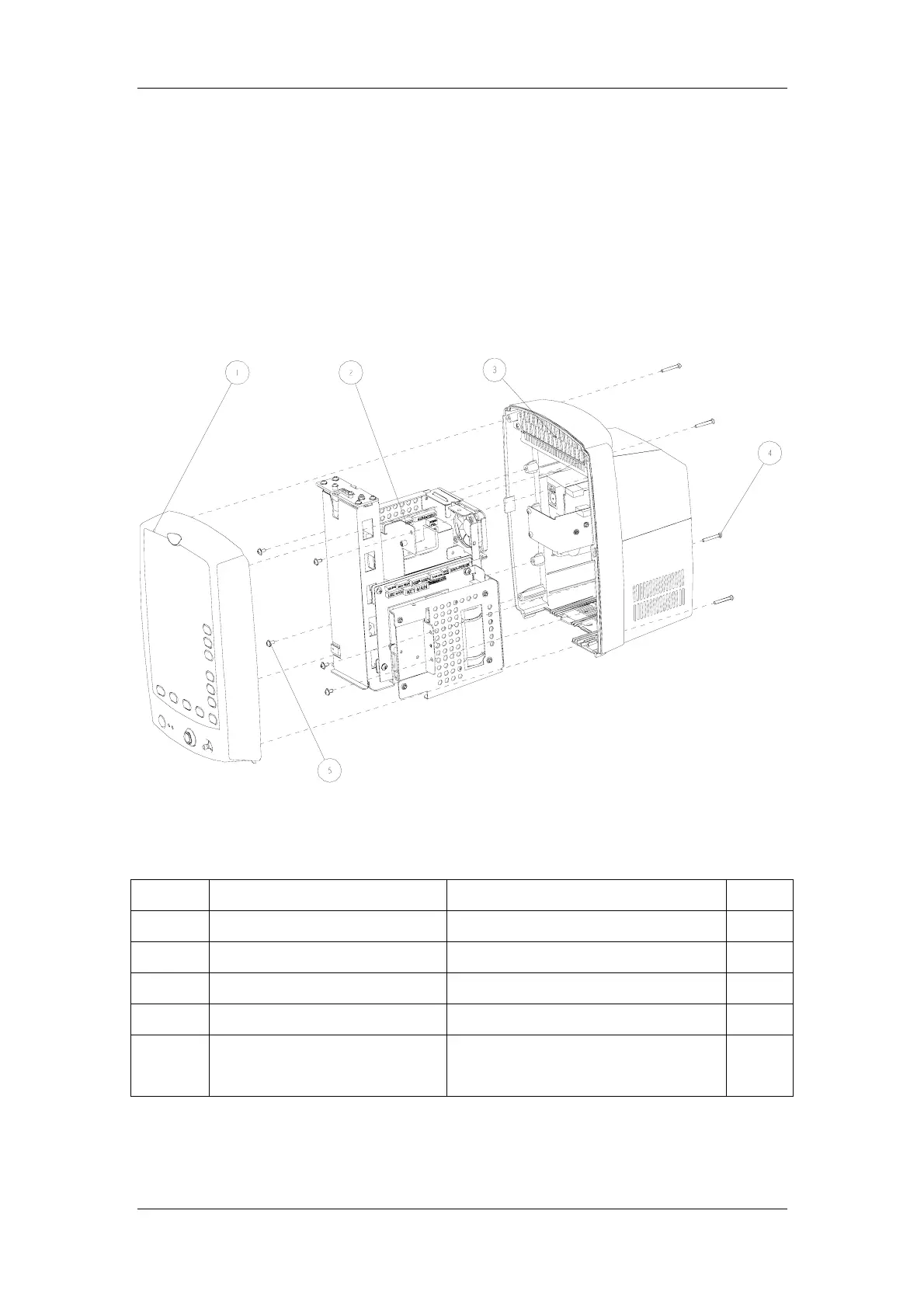

Figure 1 Host assembly
No. Std. Code Name & Spec. Qty.
1 6006-30-39446 Front housing component 1
2 6006-30-39401 Master bracket component (lead-acid) 1
3 6006-30-39447 Rear housing component 1
4 M04-000505--- Cross pan head screwM3X20 4
5 M04-004012--- Cross pan head screw with washer
M3X6
5
