Displays of the eDRIVE sys-
tem

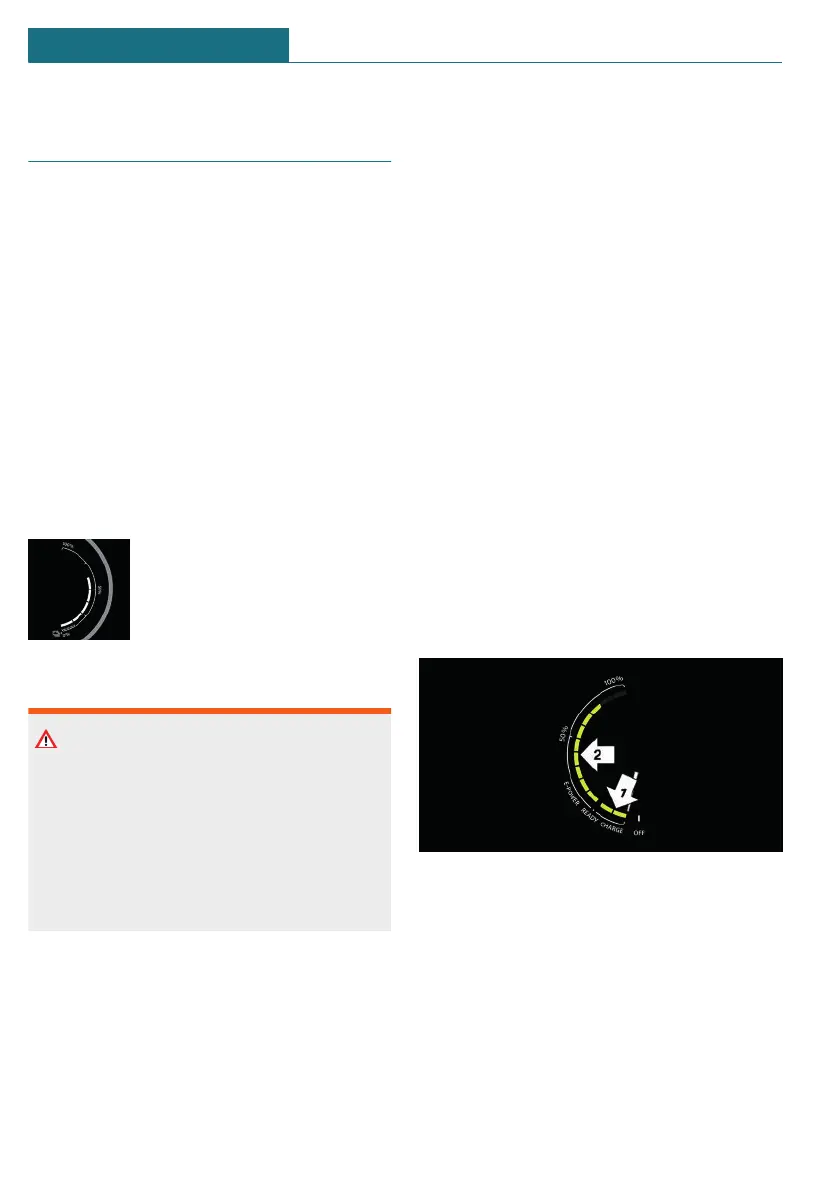

Displays in the instrument cluster
Concept
The display depends on the system's operat-
ing condition. The following functions of
the eDRIVE system are shown in the instru-
ment cluster
– High-voltage battery charge indicator.
– Performance display.
– Drive-ready state: READY.
High-voltage battery charge indicator
Display
The fill level bars indicate the
available charge state of the
high-voltage battery when
standby state and drive-ready
state are switched on.
Safety information
Warning
Even when it is indicated that the high-
voltage battery is discharged, the high-
voltage system is always still under high
voltage. There is a risk of fire or a risk of
injury. Do not touch or change live parts,
for instance orange high-voltage cables,
even when the batteries are discharged.
Performance display
Concept
A pointer indicates the power output in a
scale.
The efficient range for electric driving ePO-
WER and energy recovery CHARGE is
shown in yellow.
General information
Depending on the available power, the effi-
cient range for electric driving ePOWER is
adjusted automatically.
The efficient range for energy recovery de-
pends on the settings via the button for the
energy recovery. Set energy recovery, refer
to page 106.
The available power may be reduced due to
the following factors:
– Heavily discharged high-voltage battery.
– Extreme external temperatures.
– When driving on steep inclines, with a
sporty driving style or in other high-
power driving conditions.
Optimizing the driving style, refer to
page 213.
Display
Pointer in the CHARGE range, arrow 1: dis-
play for energy recovery by coasting or
when decelerating:
– Both LEDs are illuminated yellow: high
energy recovery.
– One LED is illuminated yellow: low en-
ergy recovery.
Pointer in the ePOWER range, arrow 2: effi-
cient acceleration.
Seite 120
CONTROLS Displays
120
Online Edition for Part no. 01405A02680 - II/20
