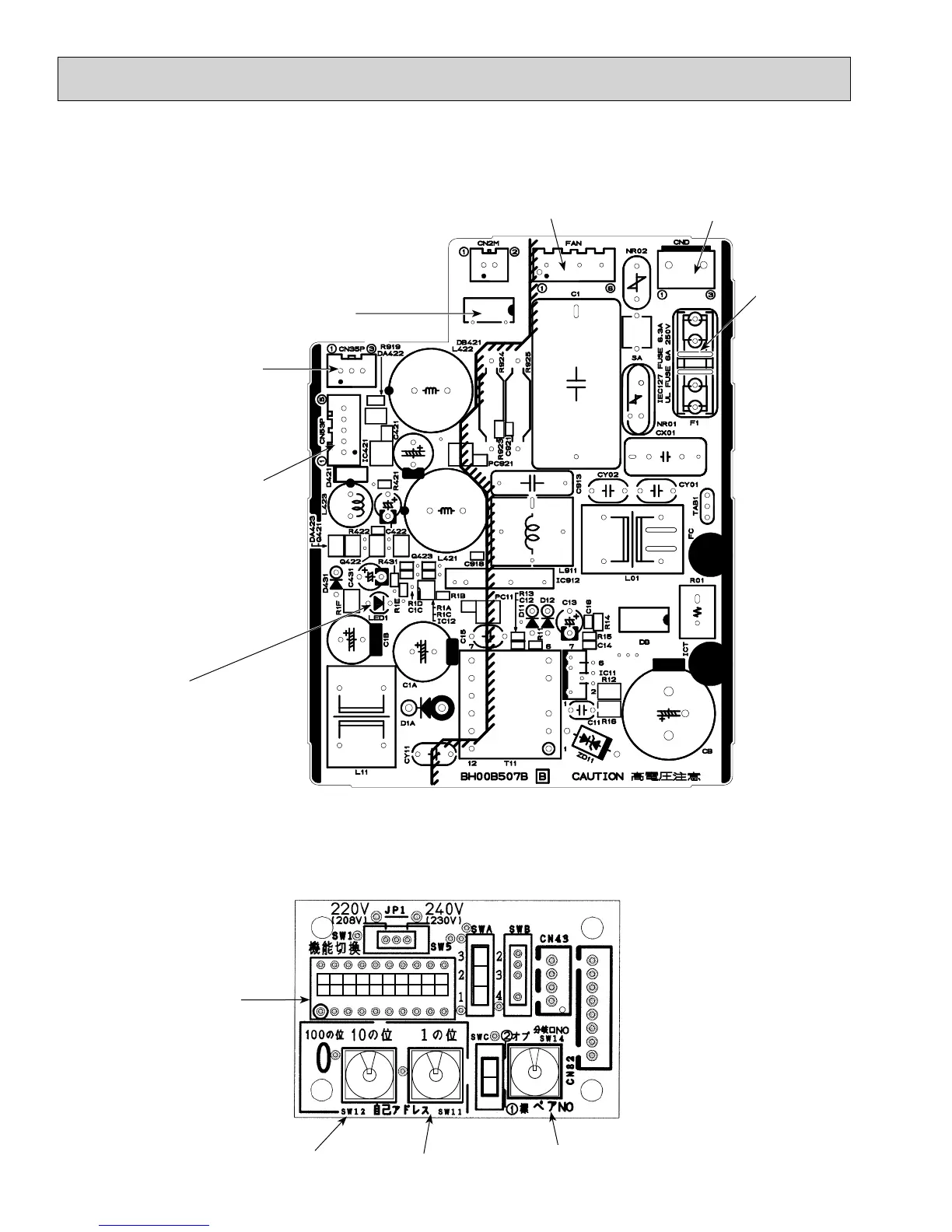

8-3-3. Address board
PKFY-P06NBMU-E PKFY-P08NBMU-E
PKFY-P06NBMU-ER1 PKFY-P08NBMU-ER1
SW1
Function setting
SW12
Address setting
10ths DIGIT
SW11
Address setting
1s DIGIT
SW14
Branch No.
8-3-2. Indoor power board
PKFY-P06NBMU-E PKFY-P08NBMU-E
PKFY-P06NBMU-ER1 PKFY-P08NBMU-ER1
FUSE
6A 250V
CN53P
Connected to the indoor controller board
(CN53M)
Between 1 to 2 24-30V DC (non-polar)
Between 3 to 5 12.5-13.7V DC (Pin3 (+))
Between 4 to 5 11.5-12.7V DC (Pin4 (+))
LED1
Main power supply
(Indoor unit : 208/230V)
CN35P
Connected to the indoor controller board
(CN35M)
CN2M
Connected to the terminal block (TB5)
(M-NET transmission connecting wire)
24-30V DC (non-polar)
FAN
Fan motor output (MF)
CND
Power supply for
indoor controller board
Between 1 to 3 208/230V AC
OCH461B
