5. Electricalwork
5.9. Initialsetting
The following settings can be made in the initial setting mode.
Item Setting Fig. 5-8
Temperature unit ºC/ºF
A
Time display 12-hour format/24-hour format
B
AUTO mode Single set point/Dual set point
C
Pair No. 0–3
D
Backlight On/Off
E
5.9.1.Switchingtotheinitialsettingmode
1. Press the button 1 to stop the air conditioner.
2. Press the
button 2.
The Function setting screen will be displayed and the function No. A will  ash.
(Fig. 5-7)
3. Check that function No. “1” is displayed, and then press the
button 3.
The Screen display setting screen will be displayed. (Fig. 5-8)
Press the
button 4 to change the function No.
5.9.2.Changingthetemperatureunit(Fig.5-8A)
Press the button 5.
Each time the
button 5 is pressed, the setting switches between and
.
: The temperature is displayed in degrees Celsius.
: The temperature is displayed in degrees Fahrenheit.
5.9.3.Changingthetimedisplay(Fig.5-8B)
Press the button 6.
Each time the
button 6 is pressed, the setting switches between
and
.
: The time is displayed in the 12-hour format.
: The time is displayed in the 24-hour format.
5.9.4.ChangingtheAUTOmode(Fig.5-8C)
Press the button 7.
Each time the button 7 is pressed, the setting switches between and .
: The AUTO mode operates as the usual automatic mode.
: The AUTO mode operates using dual set points.
5.9.5.ChangingthepairNo.(Fig.5-8D)
Press the button 4.
Each time the
button 4 is pressed, the pair No. 0–3 changes.
Pair No. of
wireless remote
controller
Indoor PC board SW22
SW22-3 SW22-4
0 ON ON Initial setting
1 OFF ON
2 ON OFF
3 OFF OFF
5.9.6.ChangingthebacklightsettingE
Press the
button 8.
Each time the
button 8 is pressed, the setting switches between and
.
: The backlight comes on when a button is pressed.
: The backlight does not come on when a button is pressed.
5.9.7.Completingthesetting
Press the button 3.
• The function No A blinks (Fig. 5-7)
Press the
button 2.
• The remote controller exits the initial setting mode.
(The air conditioner operation is stopped.)
5.9.8.HowtodisableAutomodeoperation(Fig.5-9)
1. Press the button 1 to stop the air conditioner.
• If the weekly timer is enabled, press the
button 6 to disable the timer.
(
B disappears.)
2. Press the
button 2 for 5 seconds.
• The unit enters the function setting mode. (The group model setting number A
blinks.)
3. Press the
button 5.
• Enter the group model setting number to "066". (The factory setting is "002".)
4. Completing the settings (Fig. 5-9)
Press the
button 2 for 5 seconds.
• The remote controller exits the function setting mode.

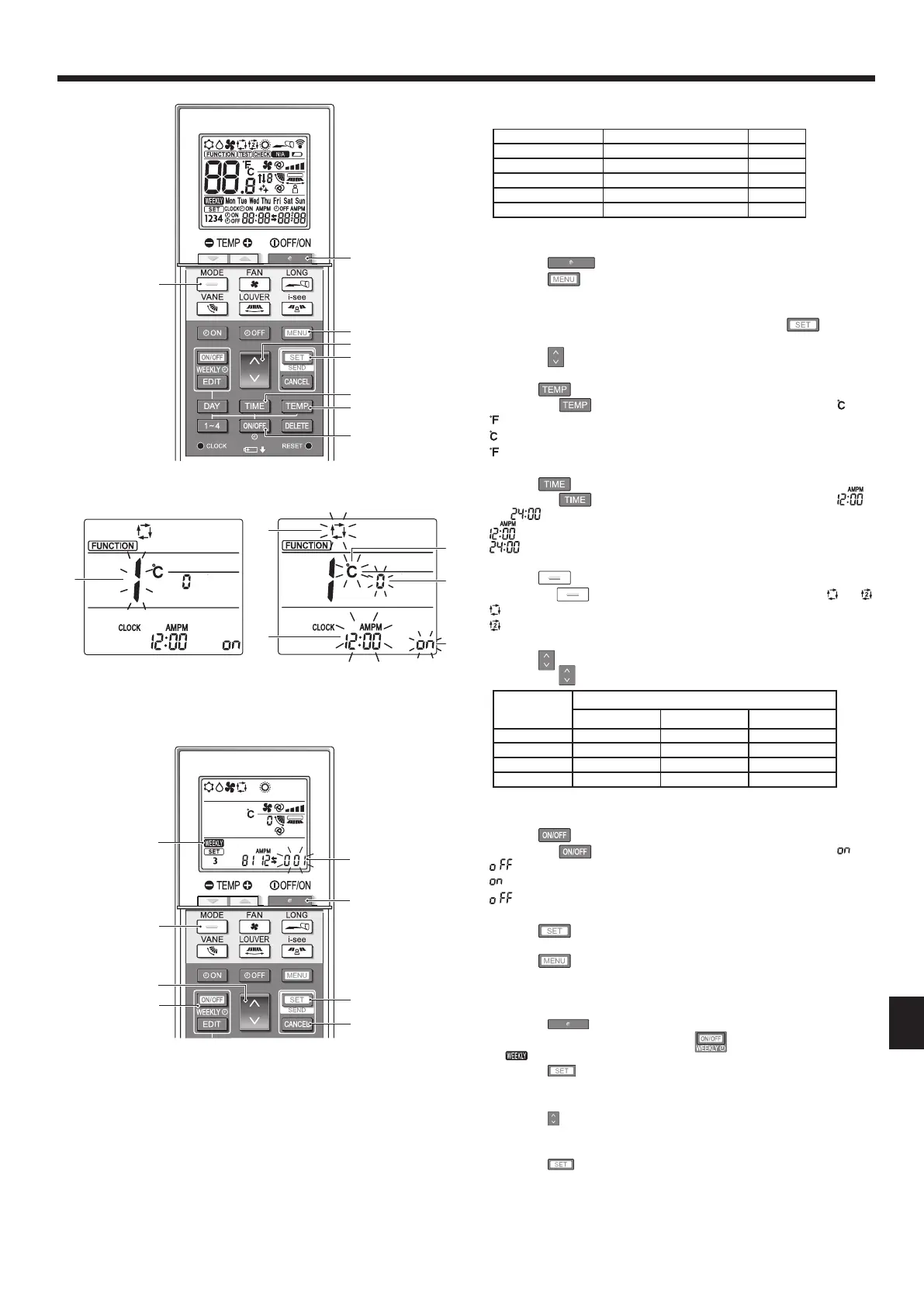

Fig.5-7
Fig.5-8
A
A
D
E
C
B
7
1
4
2
3
6
5
8
Fig.5-9
3
5
6
1
A
4
2
B
