En-3
● OPERATING INSTRUCTIONS ●
• Make sure the polarity of the batteries is correct.
•
Do not use manganese batteries and leaking batteries. The remote controller
could malfunction.
• Do not use rechargeable batteries.
• Replace all batteries with new ones of the same type.
• Batteries can be used for approximately 1 year. However, batteries with
expired shelf lives last shorter.
• Press RESET gently using a thin instrument.
If the RESET button is not pressed, the remote controller may not operate
correctly.
Before operation: Insert the power supply plug into the power outlet and/or turn the breaker on.
• Press CLOCK gently using a thin instrument.
Operation
indicator lamp
Remote control
receiving section
Emergency
operation
switch
Page 4
Horizontal vane
Air inlet
Air fi lter
(Nano platinum
fi lter)
Air cleaning fi lter
(Electrostatic
anti-allergy enzyme
fi lter, option)
Front panel
Installing the remote controller batteries
Setting current time

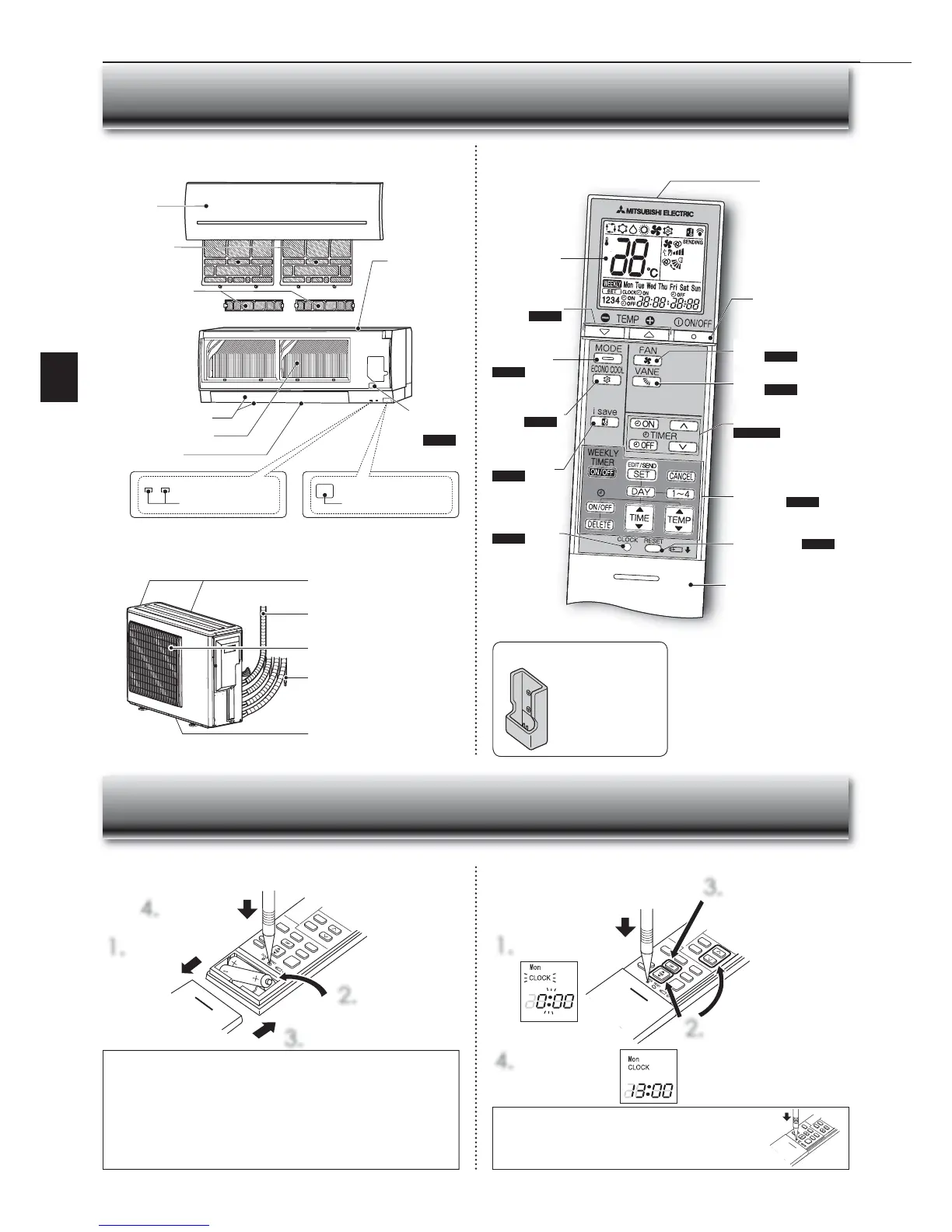

NAME OF EACH PART
PREPARATION BEFORE OPERATION
Indoor unit Remote controller
1.
Remove the front lid.
2.
Insert the negative
pole of AAA
alkaline batteries fi rst.
3.
Install the front lid.
4.
Press RESET.
1.
Press CLOCK.
4.
Press CLOCK again.
2.
Press either the TIME button or
the TIMER buttons to set the
time.
Each press increases/decreases
the time by 1 minute (10 minutes
when pressed longer).
3.
Press the DAY button
to set the day.
Remote controller holder
Signal transmitting
section
Distance of signal :
About 6 m
Beep(s) is (are) heard
from the indoor unit
when the signal is
received.
Operation
display section
ON/OFF
(operate/stop) button
Temperature
buttons
Page 4
Operation
select button
Page 4
ECONO COOL
button
Page 6
FAN speed control
button
Page 5
VANE control
button
Page 5
TIME, TIMER set buttons
Pages 3, 6
Increase time
Decrease time
CLOCK button
Page 3
RESET button Page 3
Lid
Slide the lid down to open
the remote controller. Slide
it down further to get to the
weekly timer buttons.
• Install the remote con-
troller holder in a place
where the signal can be
received by the indoor
unit.
• When the remote con-
troller is not used, place
it in this holder.
Only use the remote controller provid-
ed with the unit.
Do not use other remote controllers.
If two or more indoor units are installed
in proximity to one another, an indoor
unit that is not intended to be operated
may respond to the remote controller.
i-save button
Page 6
WEEKLY TIMER
set buttons
Page 7
Air outlet
Outdoor unit
Air inlet (back and side)
Refrigerant piping
Drainage hose
Air outlet
Drain outlet
Outdoor units may be different in appearance.
Heat exchanger
To Next Page
