EN-7

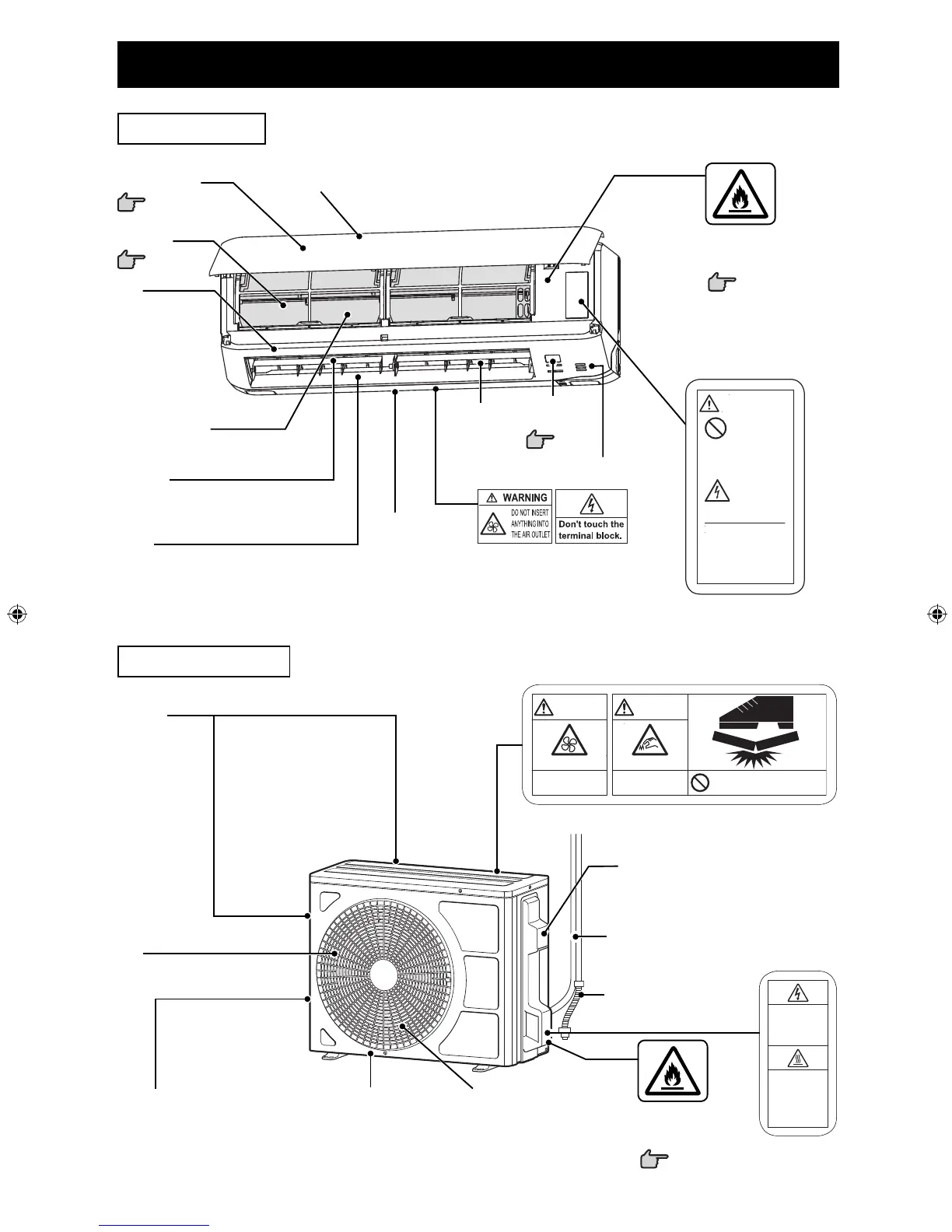

Name of each part and its function
Air inlet panel Air inlet
Air filters
Air outlet
Air outlet
Room temperature
sensor
Heat exchanger
(Aluminum fin)
• Inside of the unit
Heat exchanger
(Aluminum fin)
Fan
• Inside of
the unit
Louvers
(Vertical blades)
• Left / right airflow
direction adjustment
Flaps
(Horizontal blades)
• Up / down airflow
direction adjustment
Page 19
Page 19
OUTDOOR UNIT
INDOOR UNIT
Air inlet
(back and side)
Fan
• Inside of the unit
Refrigerant pipe
and electric wire
Drain hose
Drain hole
* The appearance varies by models
IT MIGHT CAUSE INJURY.
DO NOT STEP ON TOP OF THIS UNIT.
WARNING
DO NOT INSERT ANYTHING
INTO THE AIR OUTLET.
IT MIGHT CAUSE INJURY.
DO NOT TOUCH THE
ALUMINUM FINS.
IT MIGHT CAUSE INJURY.
SHARP EDGE OF FINSMOVING FAN BLADES
CAUTION
Don't touch
the terminal
Don't touch
refrigerant
pipings and
connections.
block.
Model name
Unit display
section
Page 8
This equipment
uses flammable
refrigerant.
Page 2 (only R32 models)
This equipment
uses flammable
refrigerant.
Page 2
Model name and refrigerant type
Do not wash the inside of the air
conditioner.Water leakage and
permanent damage may result.
Electrical hazard exists.
Caution,high voltage,shut off power
before servicing fan and fan motor.
WARNING
By the following operation,forced
Reconnect power supply. Hold the
ON/OFF switch down for 5 seconds
cooling operation is possible.
until hear a beep.
Isolate the power supply.
RLC012A103_EN.indd 7RLC012A103_EN.indd 7 9/25/2018 11:57:40 AM9/25/2018 11:57:40 AM
To Next Page
