9
-
CNW1
CNJ2CNM3CNRCNV
LED1 LED2
CNB CNW2
KN1
52X5
52X352X252X252X652X4
52X8-2
52X8-1
52X7
L3
F1
ZNR
CNW0
CNM1
L2
L1
C57
CNQ CNT
CNH CNN1
SW2 SW5
CNE
SW8
SW7SW9SW10
IC8IC7

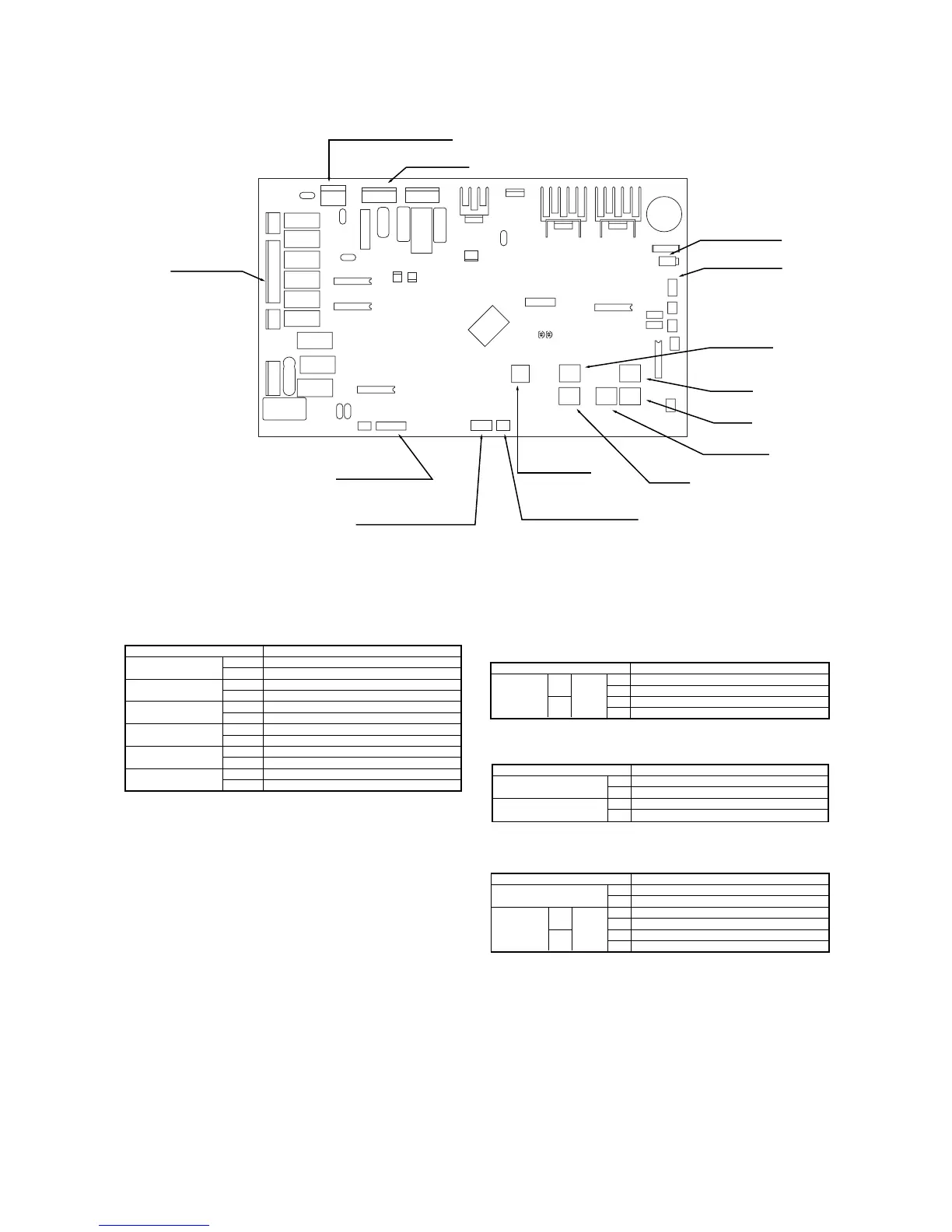

PCB power supply connector
(Primary side)
PCB power supply
connector
Heat exchanger thermistor,
Return air thermistor
(Thl-R1, Thl-A)
DIP switch
(SW5)
J5, J6
(SW8)
J1~J4
(SW7)
DIP switch
(SW9)
J9~J11
(SW10)
Address switch
(SW2)
Connector
(CNT)
Heat exchanger thermistor
(Thl-R2)
Remote controller
(Secondary side)
Power supply
Fan motor
Model: FDEN series
Input signal - Reverse invalid
Input signal - Rus stop
Heating thermostat OFF-Lo
Heating thermostat OFF-Stop, Lo
Normal operation operable
Operation permission prohibited
Normal
Heating temp. +3
Louver free stop control - Invalid
Louver free stop control - Effective
Freeze prevention fan control activated.
Freeze prevention fan control deactivated.
J1 (SW7-1)
J2 (SW7-2)
J3 (SW7-3)
J4 (SW7-4)
J5 (SW8-1)
J6 (SW8-2)
With
None
(1)
With
None
(1)
With
None
(1)
With
None
(1)
With
None
(1)
With
None
(1)
Name Function
Note (1)
(2)
“None” means that jumper wire is not provided on the PCB or the
connection is cut
The replacement board is not equipped with jumpers J1 ~ J6. Instead,
SW7 and 8, with the same functions as jumpers J1~J6, are used in the
position where the jumpers were previously. Set SW7 and 8 locally in
accordance with the above table.
Setting time : 1000hrs. (Unit stop)
Setting time : 1000hrs. (Display)
Setting time : 600hrs. (Display)
Setting time : 180hrs. (when shipped from factory)
SW5-4SW5-3
ON
OFF
ON
OFF
ON
OFF
Switch Function
Emergency operation
Normal
Fan control : Powerful mode
Fan control : Mild mode
SW9-3
SW9-4
SW10-1 (J9)
Switch Function
Auto swing fanction - None
Auto swing function - With
Remote controller air flow –
Remote controller air flow 1 speed
Remote controller air flow 2 speed
Remote controller air flow 3 speed
OFF
ON
OFF
ON
OFF
ON
OFF
ON
ON
OFF
ON
OFF
Switch Function
Note (1) It is normally ON only in the case of SW9-4.
SW10-3
(J11)
SW10-2
(J10)
● Control change switch (SW5, SW9, SW10)
Function of DIP switch SW5 (Usually all turned OFF)
Function of DIP switch SW9 (Usually all turned OFF)
● Change by the jumper wire
Function of DIP switch SW10 (Usually all turned OFF)
