Mitsubishi Heavy Industries SC-GIFN-E User Manual

-2 -

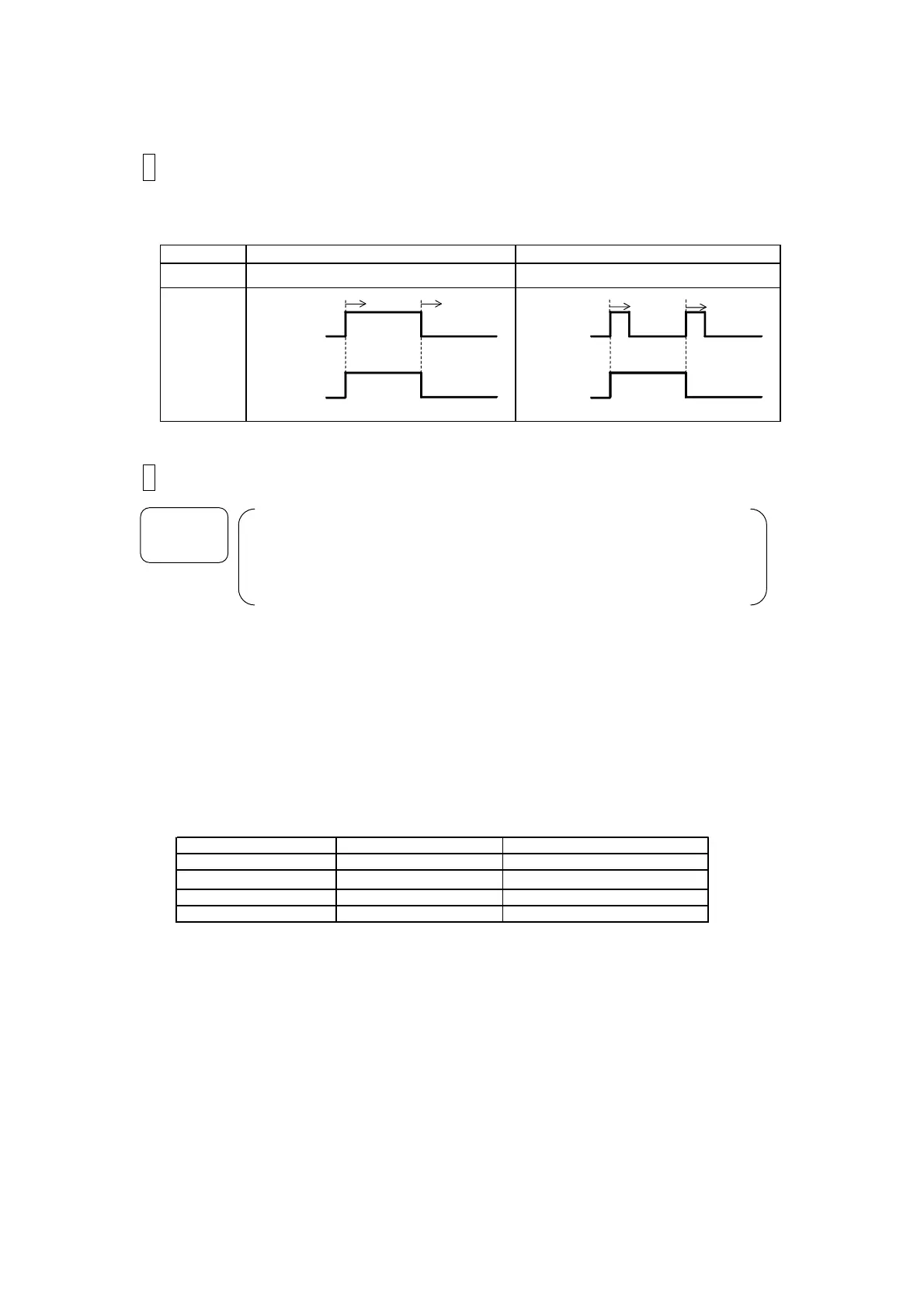

6 Output Switch
You can switch between level output and pulse output by changing the SW4-1 setting on the interface PWB
Assy.
Select level output or pulse output in accordance with the specifications of the general purpose equipment that
you are connecting to.
ＳＷ４－１
Start/stop
command output
Stop Stop
Stop
General
purpose
equipment
operating
state
General
purpose
equipment
operating
state
ＯＦＦ ＯＮ
Level output Pulse output
Output waveform
Start/stop
command
output
Operating Stop
Start/stop
command
output
Operating
Operating Operating
7 Wiring
[Power Supply line Specification]
●If the supply cord is damaged, it must be replaced by the manufacturer , its service agent or similarly qualified
persons in order to avoid a hazard.
●Only use the wires specified below for the power lines and other lines connected to the general purpose machine.
-Braided cord(cord designation 60245 IEC 51)
-Ordinary tough rubber sheathed cord(cord designation 60245 IEC 53)
-Flat twin tinsel cord(cord designation 60227 IEC 41)
●Use wires whose nominal cross-sectional area is 0.75 mm
2
or more for the power lines and other lines connected
to the general purpose machine.
●Make the ground wire from the wiring entrance to the interface connection area longer than the power supply
lines.
[Signal Line Specifications]
Communication mode Old superlink connection New superlink connection
Wire type ＭＶＶＳ ＭＶＶＳ
Wire diameter
０．７５ｍｍ
2
－１．２５ｍｍ
2
０．７５ｍｍ
2
／１．２５ｍｍ
2
Signal wire (total length) Up to １０００ｍ Up to１５００ｍ or １０００ｍ（*３）
Signal wire (max. length) Up to １０００ｍ Up to １０００ｍ
(*3) Up to 1500 m when the wire diameter is 0.75 mm2 and up to 1000 m when the diameter is 1.25 mm2.
Do not use 2.0 mm2. Doing so can cause operation errors.
Cautions
when setting
the address
•Set the address in the range of 000 to 047 when you are connecting to the old superlink
(when SW3-1 is ON) and 000 to 127 when you are connecting to the new superlink (when
SW3-1 is OFF). (The factory default setting is 000.)
• Make sure that you do not select an address of another device already connected to the
network.
•Automatic address setting is not available. Set addresses manually.
