67
-
5.1 Installation of indoor unit
(1) Wall mounted type (SKM)
(a) Caution for installation
1) The system should be applied to places as households, residences and the like.
2) The equipment shall be installed in accordance with national wiring regulations.
3) The connection to the fixed wiring of the mains supply must be made via a double pole isolating switch with a contact
gap of at least 3mm in each pole.
4) When the outdoor unit has a possibility of being overturned or being displaced and fall from its original installation
position, the outdoor unit should be fixed in its position by the use of anchor bolts or wires.

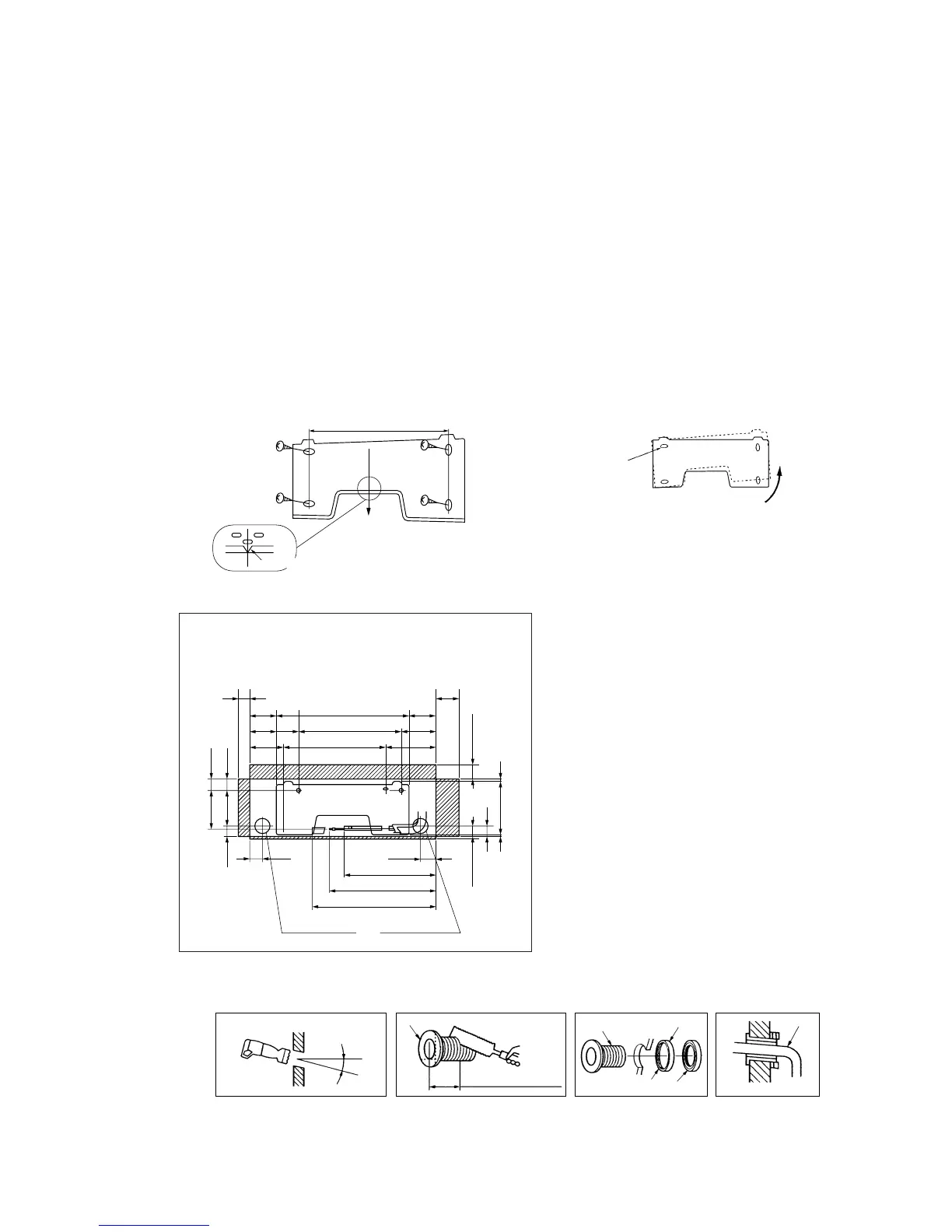

(b) Installation of indoor unit
1) Fixing of installation Board
Outdoor side
5°
ø65
Indoor side
Wall thickness + 1.5cm
Sleeve
Sleeve Inclined plate
Sealing plate
Putty
Pipe
Assembled state
¡ Drill a hole with a 65 whole
core drill.
¡ Look for the inside wall structures (Intersediate
support or pillar and firaly install the unit after level
surface has been checked.)
¡ When the pipe is connected at the rear, cut off the lower and the right
side portions of the sleeve collar (as shown by the broken line.)
2) Drilling of holes and fixture of sleeve (Option parts)
¡The connecting wires may touch the metal inside the wall and cause danger so it is necessary to always use the sleeve.
Installation space (Indoor unit)
¡Adjustment of the installation board in the horizontal
direction is to be conducted with four screws in a
temporary tightened state.
Mating mark for level surface
450
580
450
450
117.5
148.5
216.5
117.5
42.7175
65 Speace
for service
15Speace
for service
8.2236.1
44.5
5.7
47.244.5
Speace for
service
50
Speace for
service
100
216.5
148.5
67.553.5
Piping hole (ø65)Piping hole (ø65)
Piping for Gas 397.1
Piping for Liquid 465.1
Drain hose 540(ø16)
INSTALLATION SPACE (INDOOR UNIT) (FRONT VIEW)
Unit : mm
¡Adjust so that board will be level by turning the board
with the standard hole as the center.
Standard hole
To Next Page
