7
-

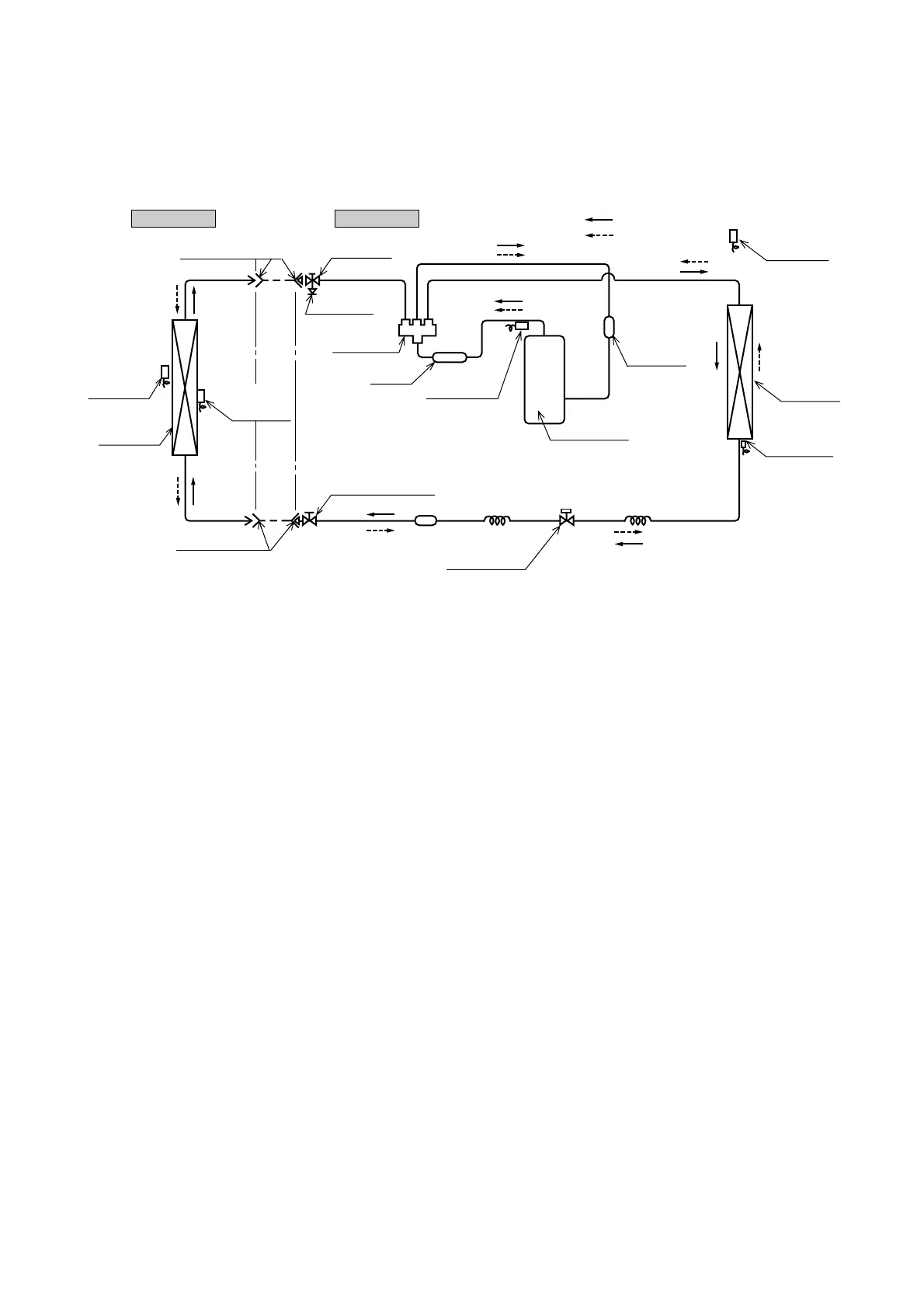

2.4 Piping system
Outdoor unitIndoor unit
Flare connecting
Room temp.
sensor
Heat
exchanger
Flare connecting
Electronic
expansion valve
Piping
(Liquid)
ø6.35
Heat
exchanger
sensor
Piping
(Gas)
ø9.52
Service valve
(Gas)
Check joint
4 way valve
Service valve (Liquid)
Strainer
Capillary tube Capillary tube
Compressor
Accumulator
Discharge temp.
sensor
Muffler
Heat exchanger
sensor
Heat
exchanger
Outdoor air
temp. sensor
Cooling cycle
Heating cycle
Models SRK20HG-S, 28HG-S, 40HG-S
