– 6 –
RUN (HOT KEEP) light (green)
• Illuminates during operation.
• Blinks at air flow stop due to the ‘HOT KEEP’
and ‘CLEAN operation’.
Page 20
TIMER light (yellow)
Illuminates during TIMER operation.
HOT KEEP
CLEAN operation
ON
OFF
ON
OFF
1.5 sec.
0.5 sec.
3 sec.
1 sec.
Unit indication section

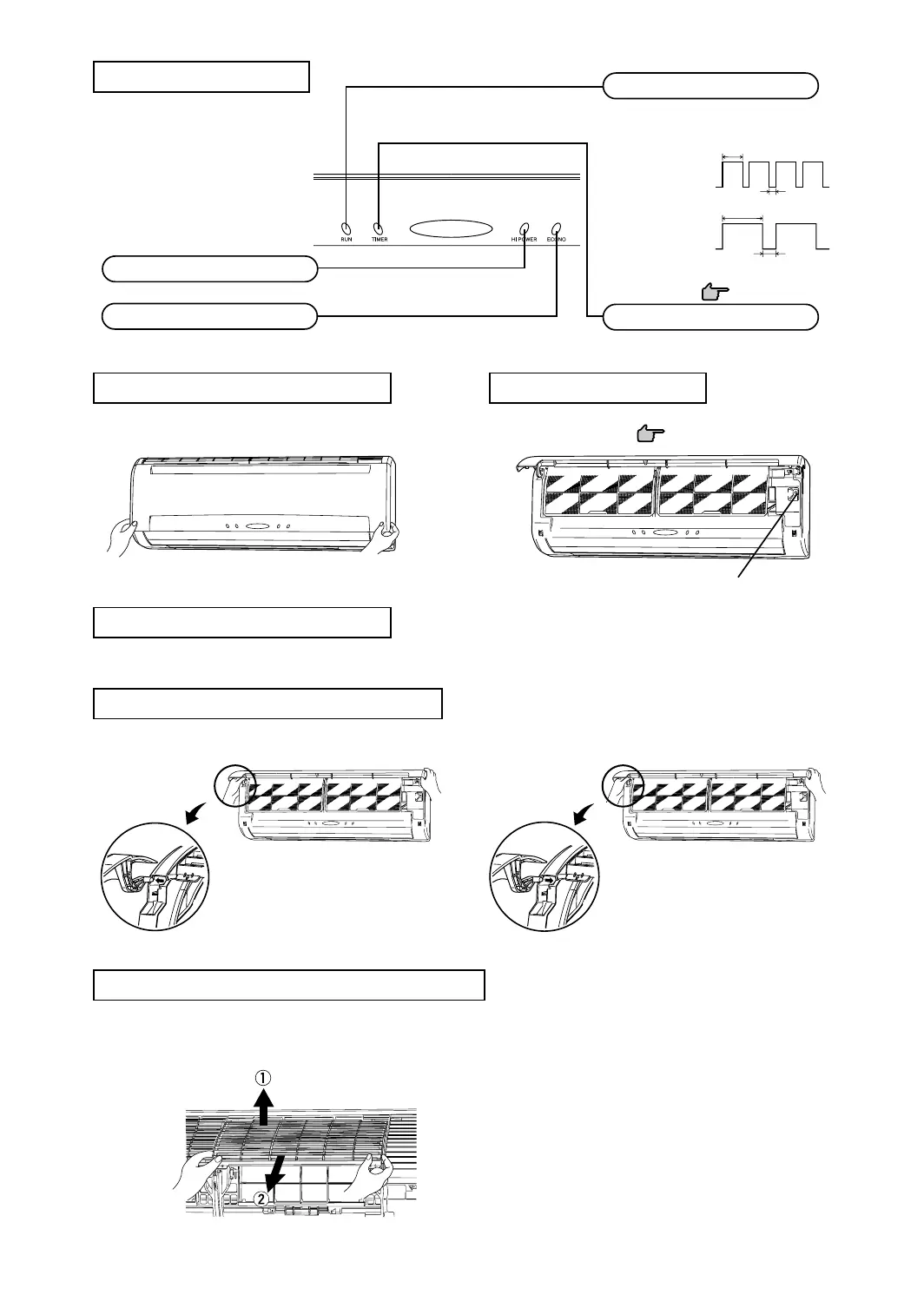

How to open the air inlet panel
How to close the air inlet panel
Push both sides evenly and press further lightly at the center.
Place fingers at the recesses on both sides of the panel and pull up the panel
to this side so that it will be opened by about 60 degrees.
Unit ON/OFF button
Secure the upper edge of the air inlet panel by lightly pushing it in, and then
close the panel.
When removing the air inlet panel for internal cleaning or others, open the
panel by 65 degrees and then pull it to this side.
In emergencies, this button can be used for turning on/off the unit when re-
mote control is not available.
Page 15
Removal, installation of air inlet panel
ECONO light (orange)
Illuminates during ECONOMY operation.
HI POWER light (green)
Illuminates during HIGH POWER operation.
Unit ON/OFF button
Installation
Align the air inlet top panel with the rail and slide the panel in towards
the back unitl it strikes the end. Push the panel in until you hear a click
and the tabs lock into place and the tabs lock into place.
(To install the air inlet top panel, follow the opposite of the removal
procedure.)
Removal
Remove the air inlet panel. 1 Grasp the handle of the air inlet top panel and lift up
until you hear a click and the tabs come out. 2 Pull the panel towards you.
Removal, installation of air inlet top panel
