Mitsubishi CV-0MW7G21-2 User Manual

3

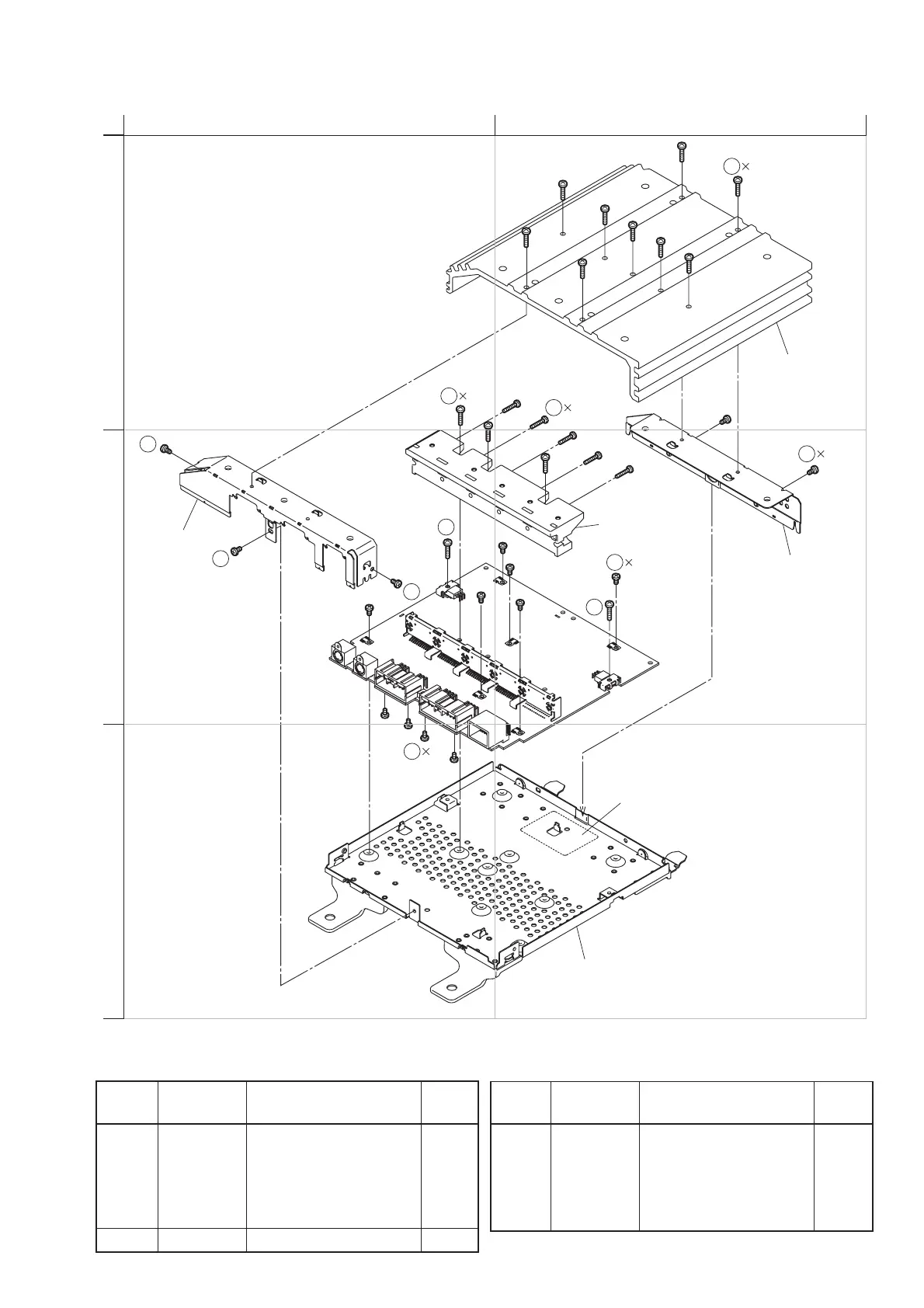

EXPLODED VIEW and PARTS LIST
M001
M006
M005
M002
M007
2
A
A
A
A
9
B
3
B
B
B
5
C
6
E
4
D
M009
A B
1
2
3
Part No. Description IndexRef. No. Part No. Description IndexRef. No.
*M001 560J32611 CHASSIS-R B-2
M002 560J33311 CHASSIS-F A-2
M005 635J08910 HEAT-SINK-MAIN B-1
M006 635K06610 HEAT-SINK-SUB B-2
M007 891J06810 ASSY-CHAS B-3
*M009 943M240O5
NAME-CARD(CV-0MW7G21-2) B-3
A 653P11046 SCREW-S-PAN 3X6 -
B 653P11048 SCREW-S-PAN 3X10 -
C 653P11052 SCREW-S-PAN 3X16 -
D 669M051O5 SCREW-TAP 3X6 -
E 669L077O2 SCREW-TAP 3X6 -
* ...This marked parts are changes from the service manual of
CV-0MW7G21 (2007 MAR.).

Mitsubishi CV-0MW7G21-2 Specifications

General

Brand	Mitsubishi
Model	CV-0MW7G21-2
Category	Amplifier
Language	English
