*: Fusible link
● Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.
● The table above shows the main equipment corresponding
to each fuse.
4 Ignition switch 40 A*
5 Power window control 30 A*
6
Front fog lights/
Daytime running lights
15 A
7 Heated seat 20 A
8 Horn 15 A
9 Engine control 20 A
10 Air conditioning 10 A
11 Stop lights 15 A
12 Rear fog light 10 A
13 Alternator 7.5 A
14 Hazard warning flasher 10 A
15 Automatic transaxle 20 A
16 Headlight high beam (right) 10 A
17 Headlight high beam (left) 10 A
18 Headlight low beam (right) 10 A
19 Headlight low beam (left) 10 A
20 Tail light (right) 7.5 A
21 Tail light (left) 7.5 A
22 Dome light 10 A

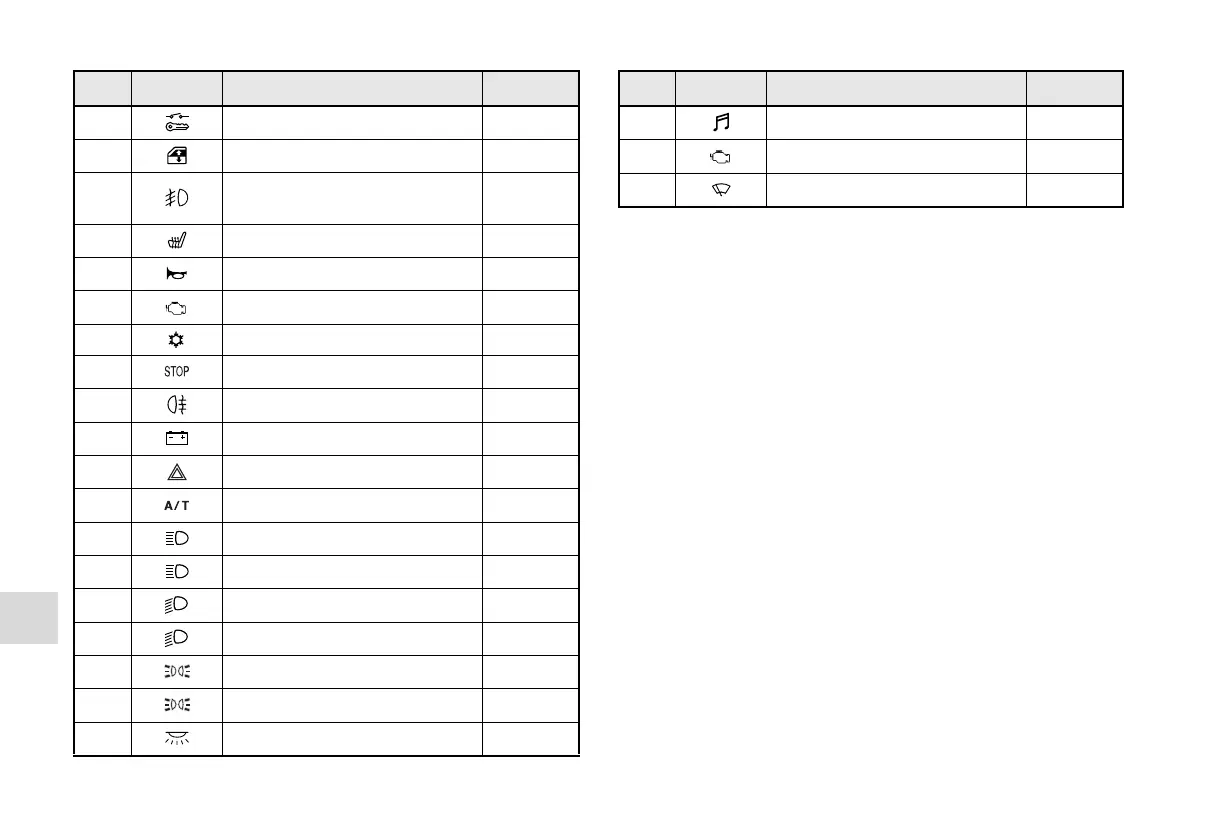

No. Symbol Electrical system Capacity
23 Radio 10 A
24
Fuel pump 15 A
25 Windshield wiper 30 A
No. Symbol Electrical system Capacity
