Mitsubishi LS2-1180 User Manual

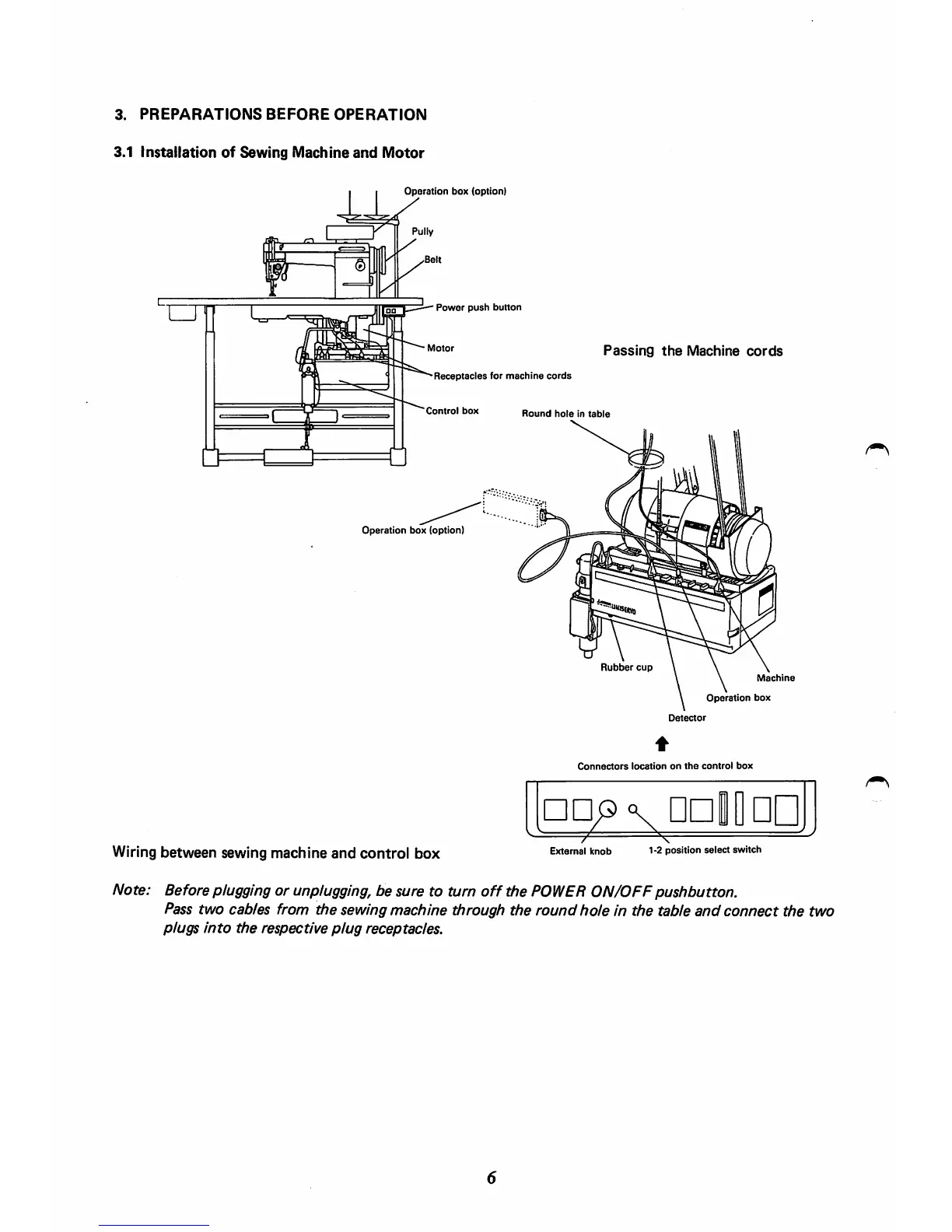

3. PREPARATIONS BEFORE OPERATION
3.1 Installation of Sewing Machine and Motor
Operation box (option)
I I
Pully
k
^Belt
n
^ 1—» ^
HI fog
i (
=—1 I 1—
f\=\ •^1 n
•— Power push button
Passing the Machine cords
•Receptacles for machine cords
Control box Round hole in table
Operation box (option)
Wiring between sewing machine and control box
Rubber cup
Detector
Machine
Operation box
Connectors location on the control box
ddOIIdD
External knob 1-2 position select switch
A/ote: Before plugging or unplugging, be sure to turn off the POWER ON/OFFpushbutton.
Pass two cables from the sewing machine through the round hole in the table and connect the two
plugs into the respective plug receptacles.
