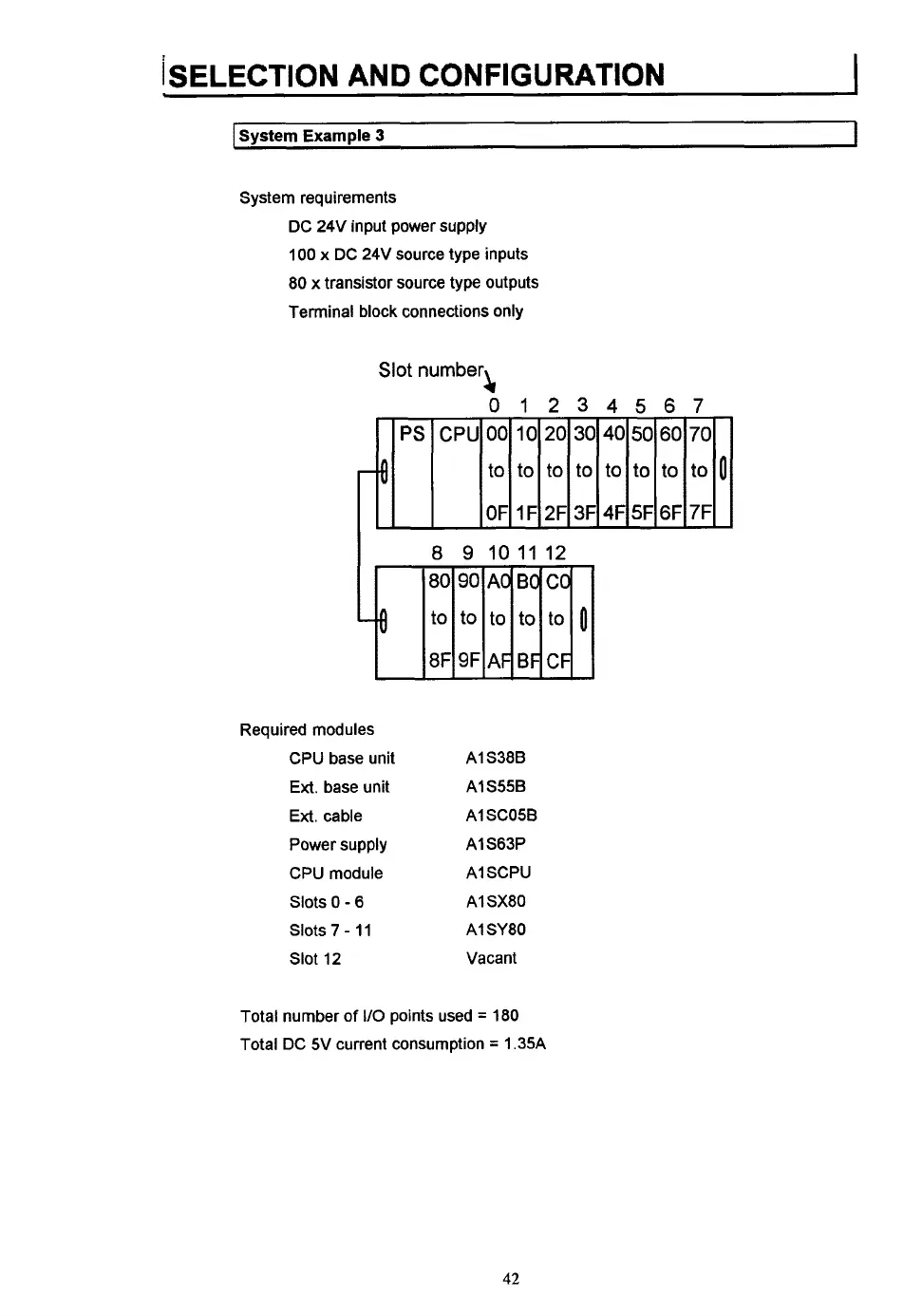

ISELECTION AND CONFIGURATION I
System Example 3 I
System requirements
DC 24V input power supply
100
x DC 24V source type inputs
80 x transistor source type outputs
Terminal block connections only
&
Slot number
01234567
8 9 10 11 12
Required modules
CPU base unit
Ext. base unit
Ext. cable
Power supply
CPU module
Slots 0 - 6
Slots 7 - I1
Slot 12
AI S38B
AI
S55B
AI SCO5B
AI S63P
AI
SCPU
AI SX80
AI SY80
Vacant
Total number
of I/O points used = 180
Total
DC 5V current consumption = 1.35A
42
