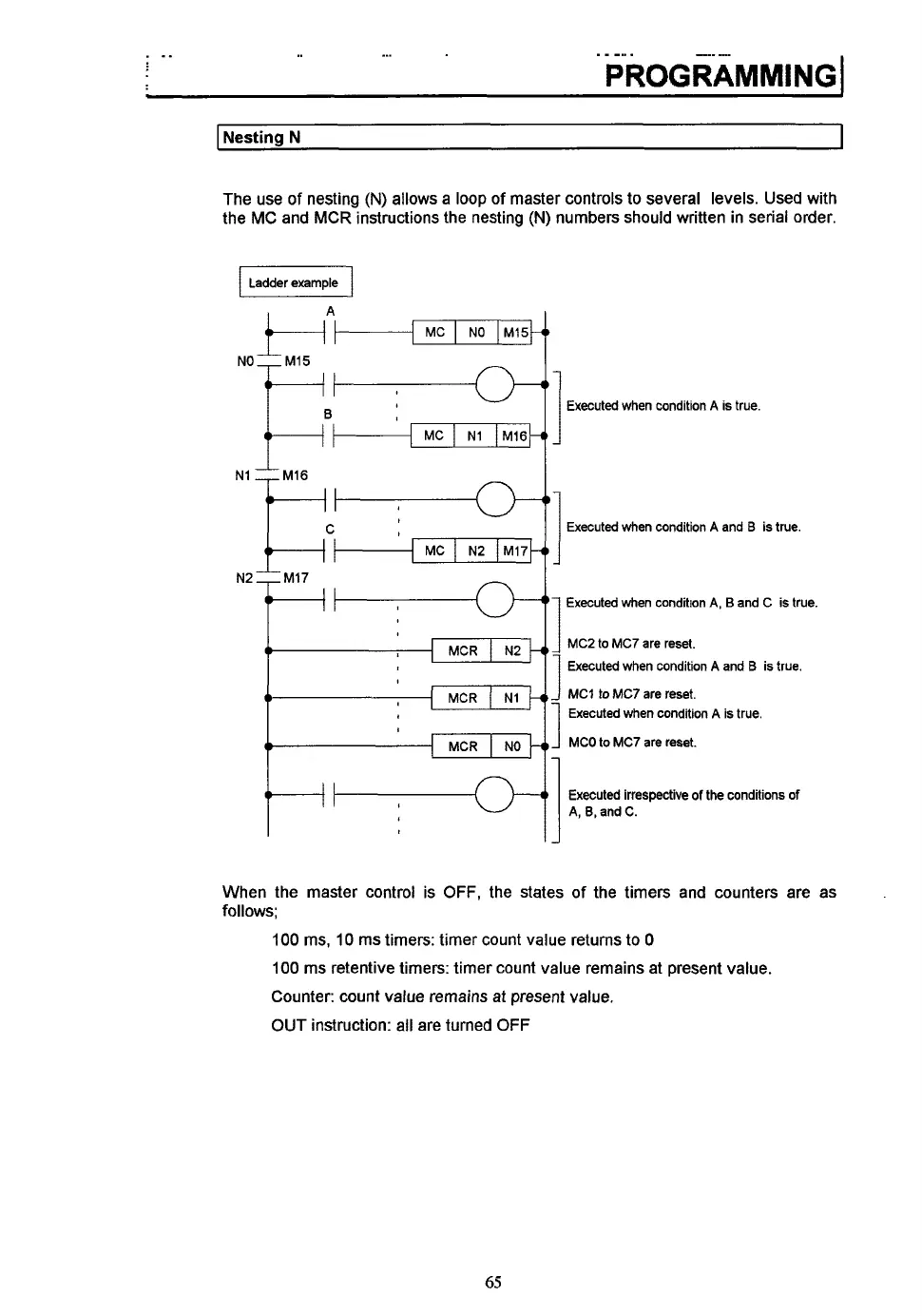

Nesting N
I
The use of nesting
(N)
allows a loop
of
master controls
to
several levels. Used with
the MC and MCR instructions the nesting
(N)
numbers should written in serial order.
Executed when condition
A
is true.
”
~~~~-~]
Executed when condition
A
and
B
is
true.
N2
77
+dl
Executed when condition
A,
B
and
C
is true.
MC2
to
MC7
are reset.
Executed when condition
A
and
B
is true
MC1
to
MC7
are reset.
Executed when condition
A
is true.
MCR
MCO
to MC7 are reset.
Executed irrespective
of
the
conditions
of
A,
B,
and
C.
When the master control is
OFF,
the states of the timers and counters are as
follows;
100
ms, 10 ms timers: timer count value returns to
0
100
ms retentive timers: timer count value remains at present value.
Counter: count value remains at present value.
OUT
instruction: all are turned
OFF
