2. LINEAR SCALES

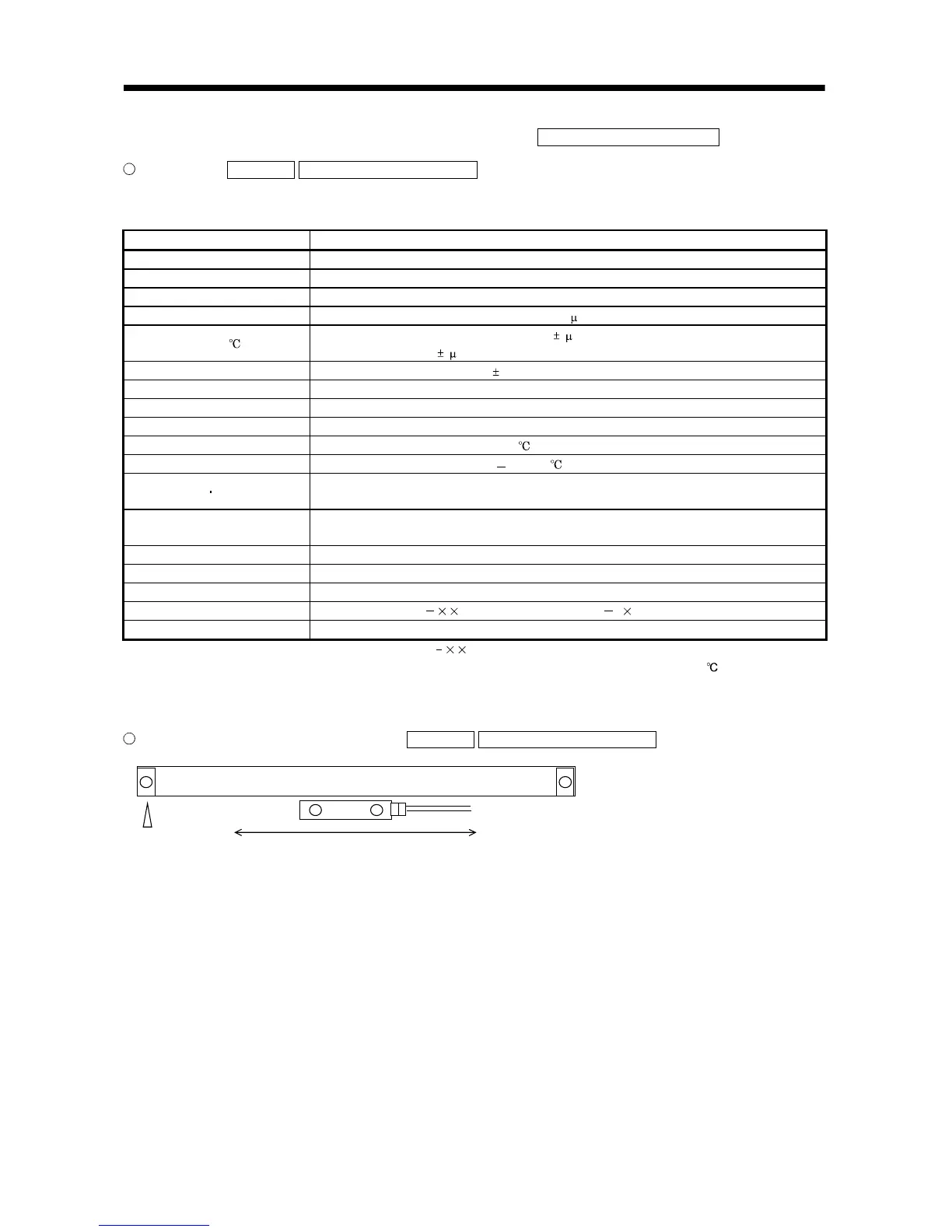

2.1.2 Heidenhain make linear encoder (linear scale) (ABS type) Scheduled to be compatible
Specifications Reference Scheduled to be compatible
Contact Heidenhain for the specifications of this linear encoder (linear scale).
Heidenhain Sales Section No. 2: TEL. (03) 3234-7781
Item Specifications
Model LC491M
System Photoelectric scanning system
Effective measurement length 70 to 2040mm
Resolution 0.05 m
Accuracy grade (20 )
5 m
3 m (up to effective measurement length 1240)
Supply power voltage 5V 5% on the linear encoder side
Current consumption Max.300mA
Rated response speed 2.0m/s
Maximum response speed 2.0m/s
Operating temperature range 0 to 50 (non-freezing) (Note 2)
Storage temperature range 20 to 70
(non-freezing)
Dust tightness water tightness
IP53 (when mounted according to the manual of the Heidenhain make linear encoder)
IP64 (when filled with compressed air)
Vibration resistance
100m/s
2
(DINIEC 68-2-6) without mounting spur
150m/s
2
(DINIEC 68-2-6) with mounting spur
Shock resistance 150m/s
2
(DINIEC 68-2-6) (11ms)
Required feeding force 5N or less
Output signal Serial communication compatibility
Output cable 337 439 (17 pin coupling), 367 425 0 (20 pins), etc. (Note 1)
Connection cable Refer to the standard connection example in Chapter 3 and fabricate the cable.
Note 1. When the MR-J2SCLCBL02M-P-H is used, 367 425 (5m or less) can be connected directly.
2. The linear encoder (linear scale) is extremely sensitive to the operating temperature. When it exceeds 50
, an alarm may
occur. It is recommended to pay special attention to the operating temperature and secure the temperature change margins.
3. The battery (MR-BAT) is not required to configure an absolute position detection system.
Linear encoder (linear scale) unit structure Reference Scheduled to be compatible
