12. ABSOLUTE POSITION DETECTION SYSTEM
12 - 16
12.6 Absolute position data transfer protocol
POINT
After switching on ABSM, turn on SON. When the ABS transfer mode is off,
turning on SON does not switch on the base circuit.

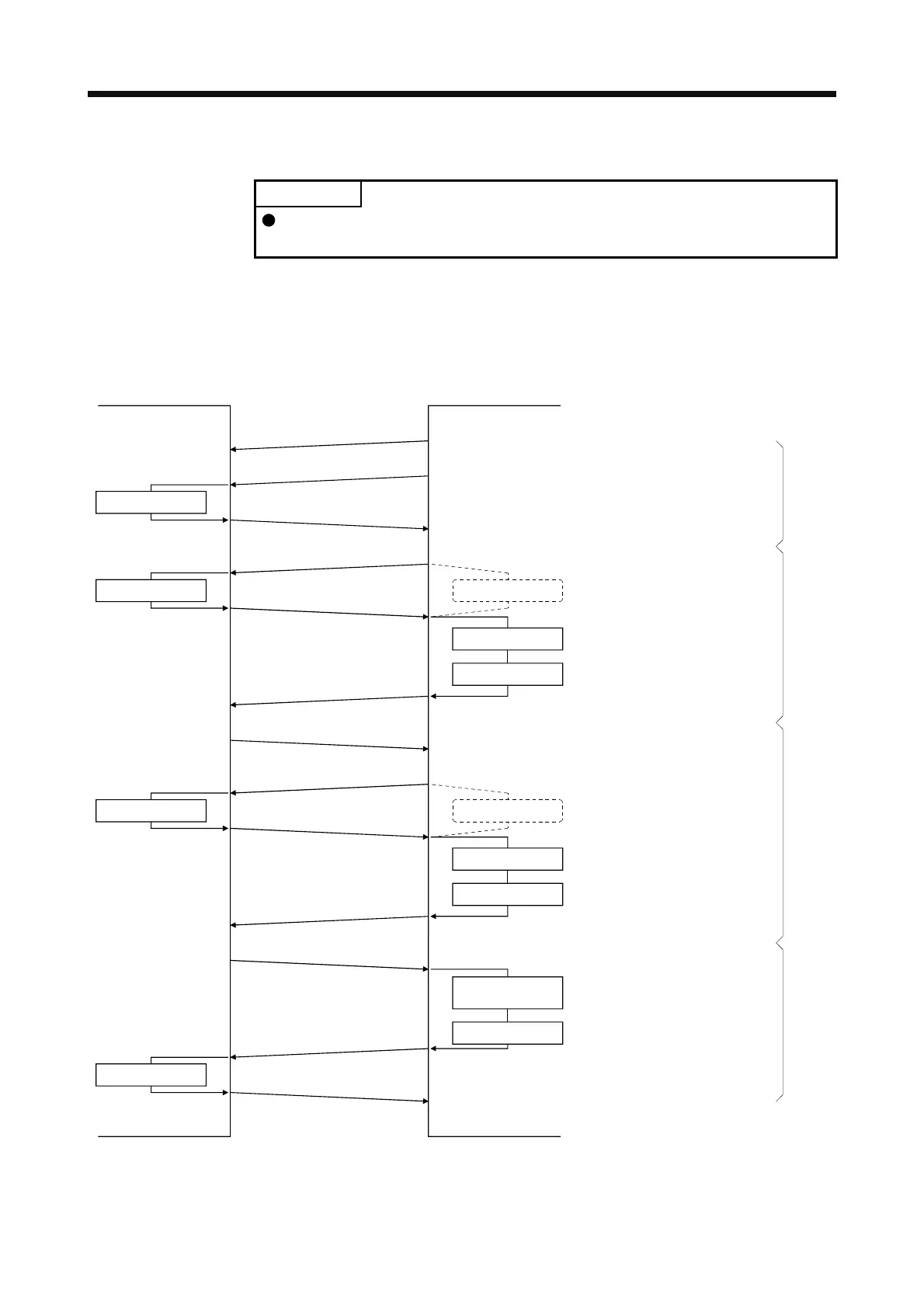

12.6.1 Data transfer procedure
Each time SON is turned on (when the power is switched on for example), the programmable controller
reads the position data (present position) of the servo amplifier.
Time-out monitoring is performed by the programmable controller.
ON (Servo-on) on
Servo amplifie
r
Programmable controller
ABSM on
ABST on
ABSR on
ABST off
ABSR off
ABST on
ABSR on
ABST off
ABSR off
ABST on
ABSM off
DI0 allocation change
Transmission data set
Transmission data set
DI0 allocation change
Watch dog timer
Reading 2 bits
Shift and addition
Watch dog timer
Reading 2 bits
Shift and addition
Setting the current
position
Sum check
Every time the SON is turned
ON, ABSM is turned ON to set
the data to be transmitted.
The data is read in units of
2 bits; the read data is written
to the lowest bits, and the
register is shifted right until
32-bit data is configured.
The data is read in units of
2 bits; the read data is written
to the lowest bits, and the
register is shifted right until
6-bit data is configured.
A sum check is executed
for the received 32-bit data.
After making sure that
there are no errors in the data,
the current position is set.
Start processing
Repeated to configure 32-bit data
Repeated to configure 6-bit dataEnd processing
16 times
3 times
«Current position data»
«
Sum check data
»
ABST off
