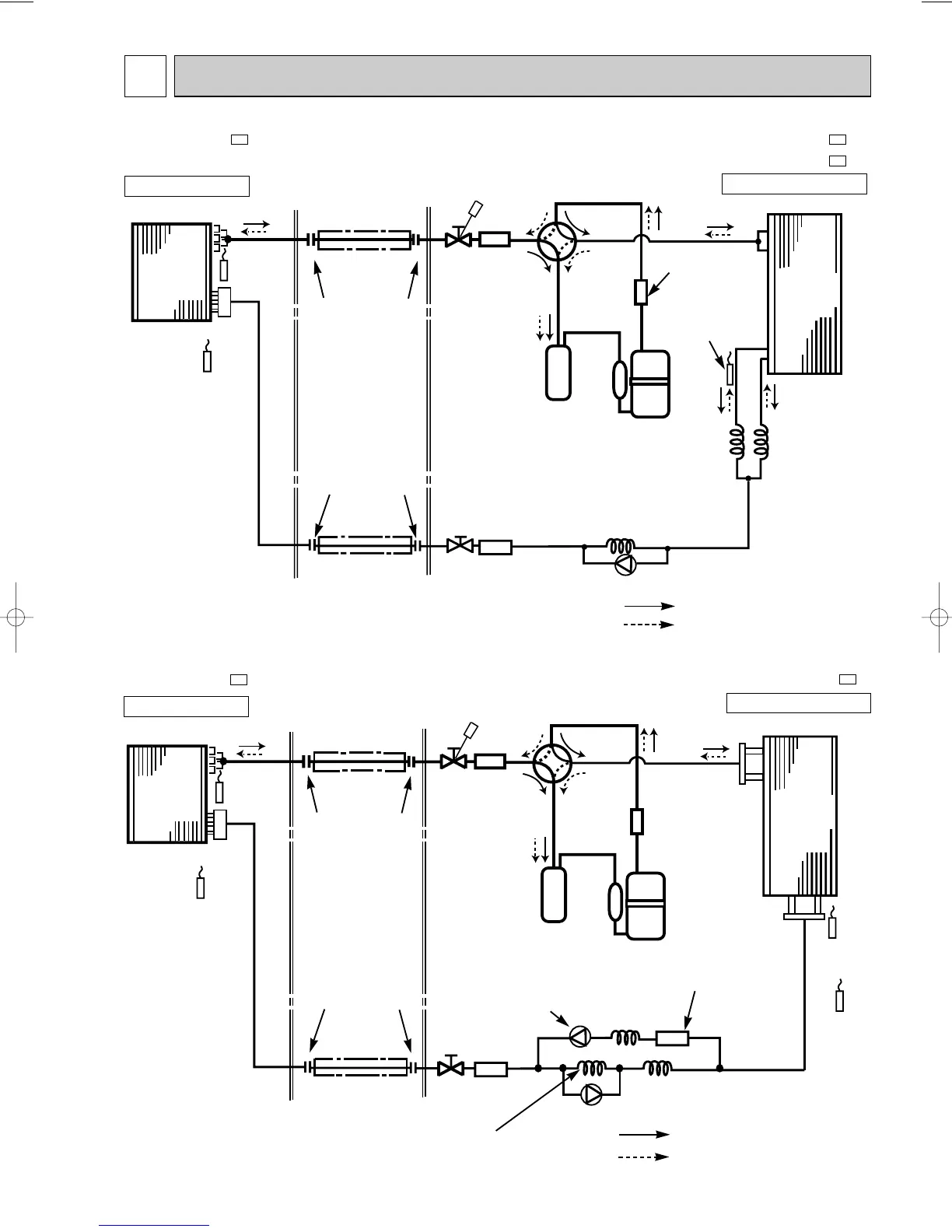

REFRIGERANT SYSTEM DIAGRAM
7
MSH-18RV -
E1
MUH-18RV -
MUH-18RV -
E2
E1
INDOOR UNIT
OUTDOOR UNIT
Indoor
heat
exchanger
Room temperature
thermistor
RT11
Refrigerant pipe [15.88
(with heat insulator)
Flared connection
Flared connection
Indoor coil
thermistor
RT12
Refrigerant pipe[6.35
(with heat insulator)
Stop valve
Strainer
Check valve
Capillary tube
[3.0o[2.0o500
Capillary tube
[3.0o[1.6o750
(2 pcs)
Compressor
Accumulator
Stop valve
(with service port)
Muffler
Outdoor
heat
exchanger
Defrost
thermistor
RT61
R.V. coil
Heating ON
Cooling OFF
Refrigerant flow in cooling
Refrigerant flow in heating
Strainer
Distributor
4- way valve
MSH-24RV -
E1
MUH-24RV -
E1
INDOOR UNIT
OUTDOOR UNIT
Indoor
heat
exchanger
Room temperature
thermistor
RT11
Refrigerant pipe [15.88
(with heat insulator)
Flared connection
Flared connection
Indoor coil
thermistor
RT12
Refrigerant pipe [9.52
(with heat insulator)
Stop valve
Strainer
Check
valve
Check
valve
Capillary tube
[3.0X[1.6X350
Capillary tube
[4.0X[2.4X200
Defrost
thermistor
RT61
Compressor
Accumulator
Stop valve
(with service port)
Muffler
Outdoor
heat
exchanger
Refrigerant flow in cooling
Refrigerant flow in heating
Strainer
Distributor
4- way valve
Unit:mm
[3.0X[2.0X350
Capillary tube
Discharge pressure
regulator open
2.30MPa
(23.5 kgf/F)
Unit:mm
R.V. coil
Heating ON
Cooling OFF
Ambient
tempera-
ture
thermistor
RT63
