Service Manual Mitsubishi SL-Series diesel engines
Version 08/2004
ENGLISH
Timing Gears and Flywheel ASSEMBLY
96 / 195
21.12 Oil seal case installation
1. Put a new gasket in position on the oil seal case.
2. Lubricate the oil seal lip with engine oil and install
the oil seal in position in the cylinder block.
21.13 Rear plate installation
1. Put a new gasket in position on the rear plate.
2. Put the rear plate in position on the cylinder block
with its dowel holes in alignment with the dowels.
Tighten the bolts that hold the rear plate to the
specified torque.
21.14 Flywheel installation
1. Install a safety bar (M12 x 1.25) in the rear end of
the crankshaft.
2. Put the flywheel in position in alignment with the
safety bar.
3. Install three of four bolts in the flywheel and tighten
them finger tight only.
4. Remove the safety bar. Install the last bolt in the
flywheel and tighten it finger tight only.

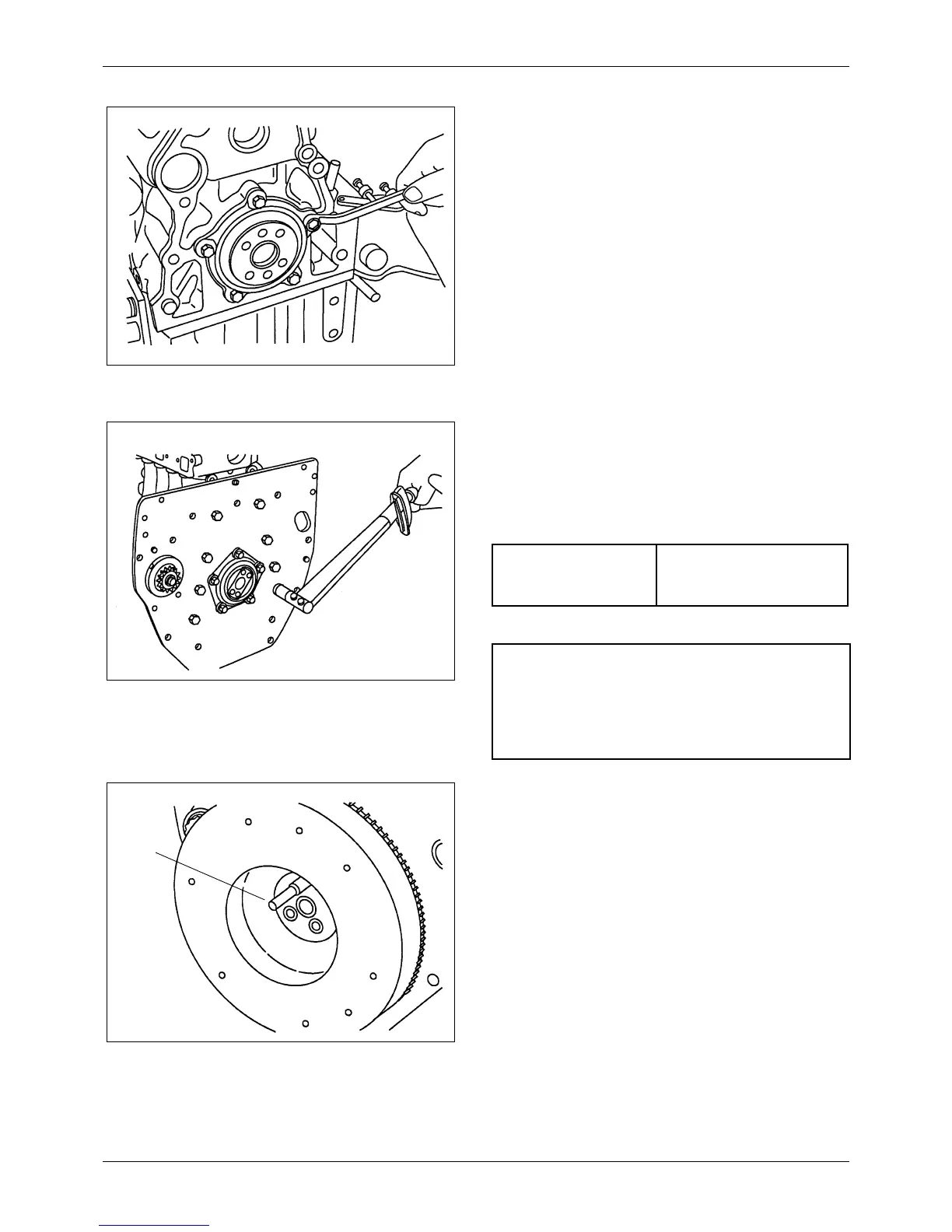

Figure 150 Installing oil seal case
Figure 151 Installing rear plate
Tightening torque
6.5 ± 1 kgf·m
(47 ± 7 lbf·ft)
[64 ± 10 N·m]
NOTE
Install the starter to the rear plate before installing the
plate to the cylinder block for convenience of rear
plate installation.
Figure 152 Safety bar
Safety bar
