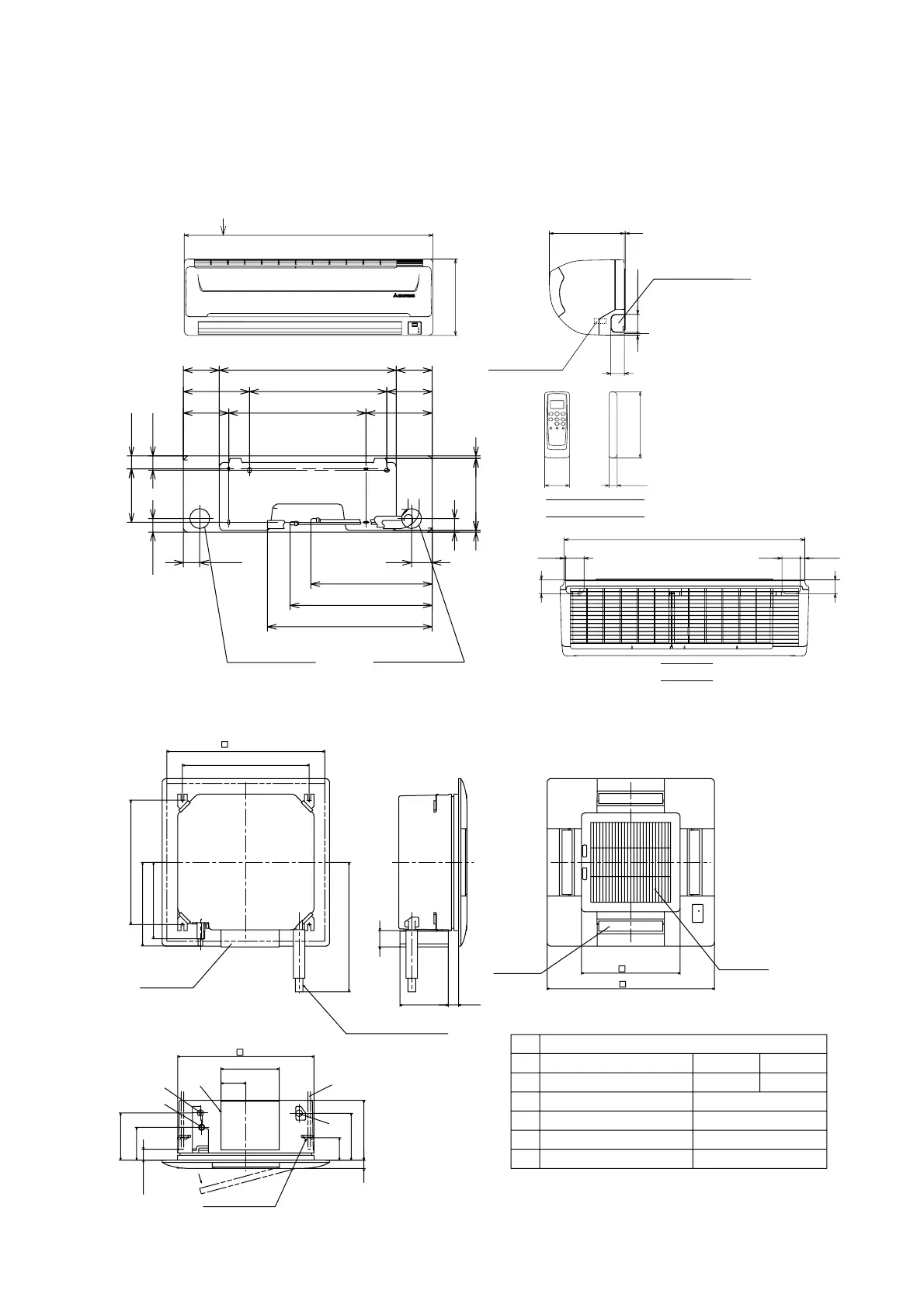

2.3 Exterior dimensions
(1) Indoor unit
Models SKM22ZD-S, 25ZD-S, 28ZD-S, 35ZD-S, 50ZD-S
Unit : mm
Models STM25ZE-S, 35ZE-S, 50ZE-S, 60ZE-S
Hanging bolt pitch 530
Celling opening 660 (For conventional celling)
Hanging fixture
C
B
A
D
Drain hose (accessory)
To be installed at site
Control box
Hanging bolt pitch 530
Air outlet
Air intake
PANEL
E
*Please arrange VP25 connector sockets on the installer's part.
350
319
104
more
45 or
541
700
413
43202
570
243
196
250
93
35
137
197
68
Mark Description
Model 25,35ZE-S 50,60ZE-S
A
Gas pipe connecting port ø 9.52(Flare) ø 12.7(Flare)
B
Liquid pipe connecting port ø 6.35(Flare)
C
Drain line tube connecting port VP25*
D
Power intake
E
Hanging bolt (M10 or M8)
