1-37

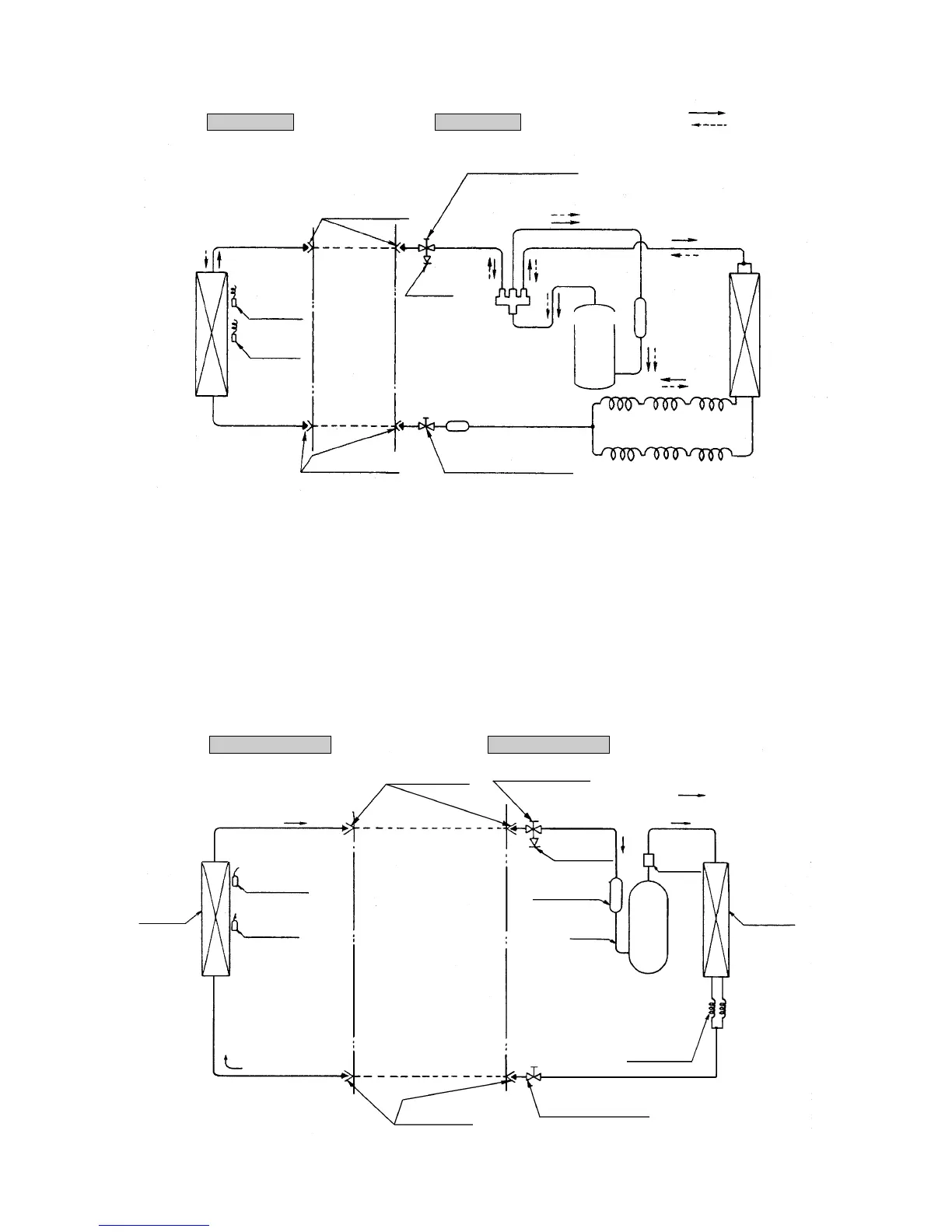

Models SRK50CA, 56CA
Heat
exchanger
Heat
exchanger
Room
temperature
thermistor
Flare connecting
Piping (Gas)
ø12.7
Piping (Liquid) ø6.35
Flare connecting
Service valve (Gas)
Service valve (Liquid)
Check joint
Compressor
Capillary tube
Suction
Accumulator
Cooling cycle
Discharge
Muffler
Heat
exchanger
thermistor
Indoor unit Outdoor unit
Cooling cycle
Heating cycle
Heat exchanger
Strainer
Service valve (Liquid)
Flare connecting
Service valve (Gas)
Room
temperature
sensor
Piping (Gas)
28:Ø9.52
32:Ø12.7
Piping (Liquid)
Ø6.35
Flare connecting
Check
joint
4way valve
Suction
Capillary tube
Heat exchanger
Compressor Accumulator
Discharge
Heat
exchanger
sensor
( )
Indoor unit
Outdoor unit
Models SRK288HENF-L, 328HENF-L
