1-38

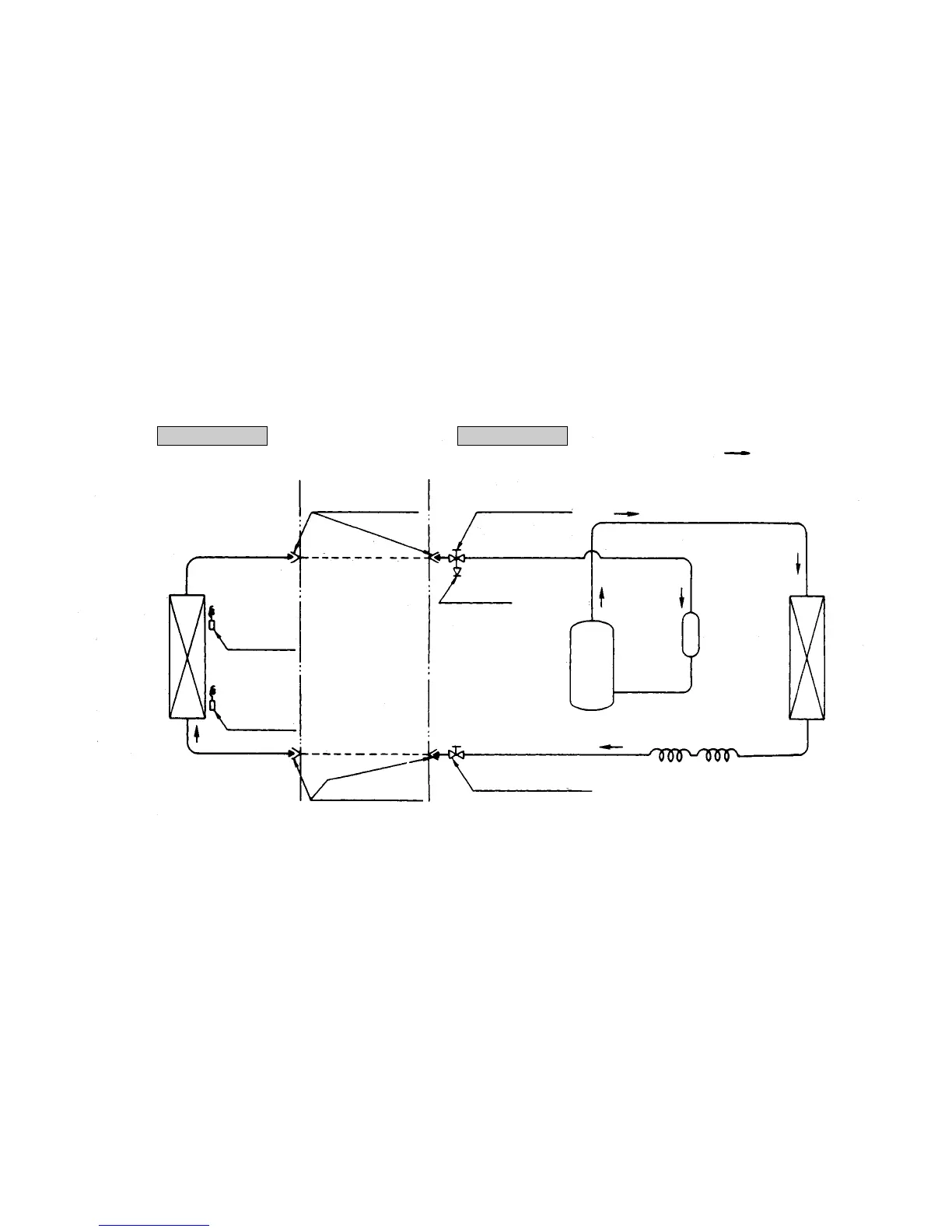

1.2.4 Piping system
Models SRK208CENF-L, 258CENF-L, 288CENF-L, 328CENF-L, 408CENF-L
Heat exchanger
Heat exchanger
Room
temperature
sensor
Flare connecting
Piping (Gas)
Piping (Liquid)
Flare connecting
ø6.35
20, 25, 28 : ø9.52
32, 40 : ø12.7
( )
Service valve (Gas)
Service valve (Liquid)
Check joint
Compressor
Suction
Accumulator
Capilary tube
Cooling cycle
Discharge
Heat
exchanger
sensor
Indoor unit Outdoor unit
