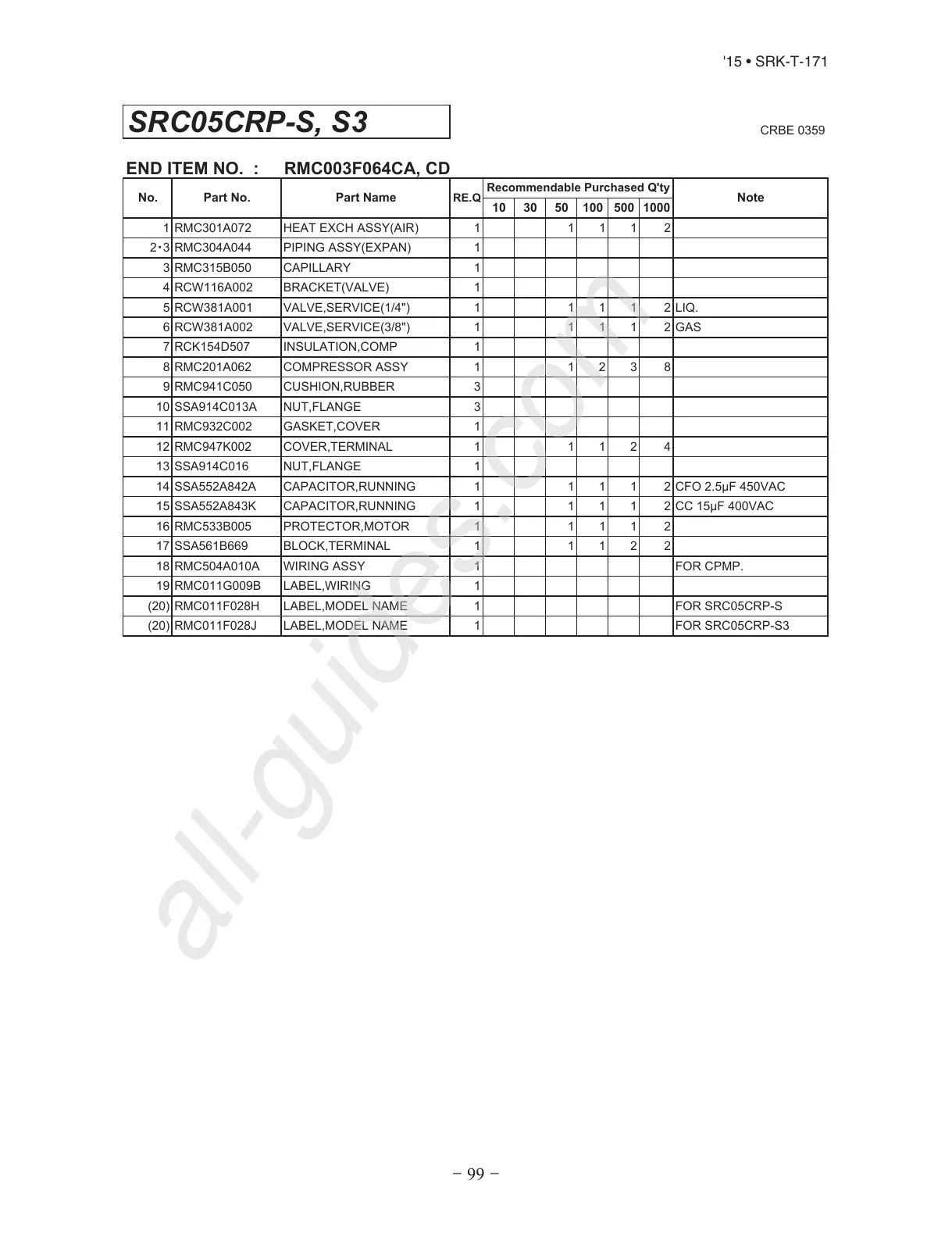

SRC05CRP-S, S3
CRBE 0359
END ITEM NO. : RMC003F064CA, CD
10 30 50 100 500 1000
1 RMC301A072 HEAT EXCH ASSY(AIR) 1 1 1 1 2
2䞉3 RMC304A044 PIPING ASSY(EXPAN) 1
3 RMC315B050 CAPILLARY 1
4 RCW116A002 BRACKET(VALVE) 1
5 RCW381A001 VALVE,SERVICE(1/4") 1 1 1 1 2 LIQ.
6 RCW381A002 VALVE,SERVICE(3/8") 1 1 1 1 2 GAS
7 RCK154D507 INSULATION,COMP 1
8 RMC201A062 COMPRESSOR ASSY 1 1 2 3 8
9 RMC941C050 CUSHION,RUBBER 3
10 SSA914C013A NUT,FLANGE 3
11 RMC932C002 GASKET,COVER 1
12 RMC947K002 COVER,TERMINAL 1 1 1 2 4
13 SSA914C016 NUT,FLANGE 1
14 SSA552A842A CAPACITOR,RUNNING 1 1 1 1 2 CFO 2.5ȝF 450VAC
15 SSA552A843K CAPACITOR,RUNNING 1 1 1 1 2 CC 15ȝF 400VAC
16 RMC533B005 PROTECTOR,MOTOR 1 1 1 1 2
17 SSA561B669 BLOCK,TERMINAL 1 1 1 2 2
18 RMC504A010A WIRING ASSY 1 FOR CPMP.
19 RMC011G009B LABEL,WIRING 1
(20) RMC011F028H LABEL,MODEL NAME 1 FOR SRC05CRP-S
(20) RMC011F028J LABEL,MODEL NAME 1 FOR SRC05CRP-S3
NoteNo. Part No. Part Name
RE.Q
Recommendable Purchased Q'ty
